CS-670 - Echo Chainsaw (SN: 03001001 - 03999999) Handle, Trigger Parts Diagram

Chainsaw

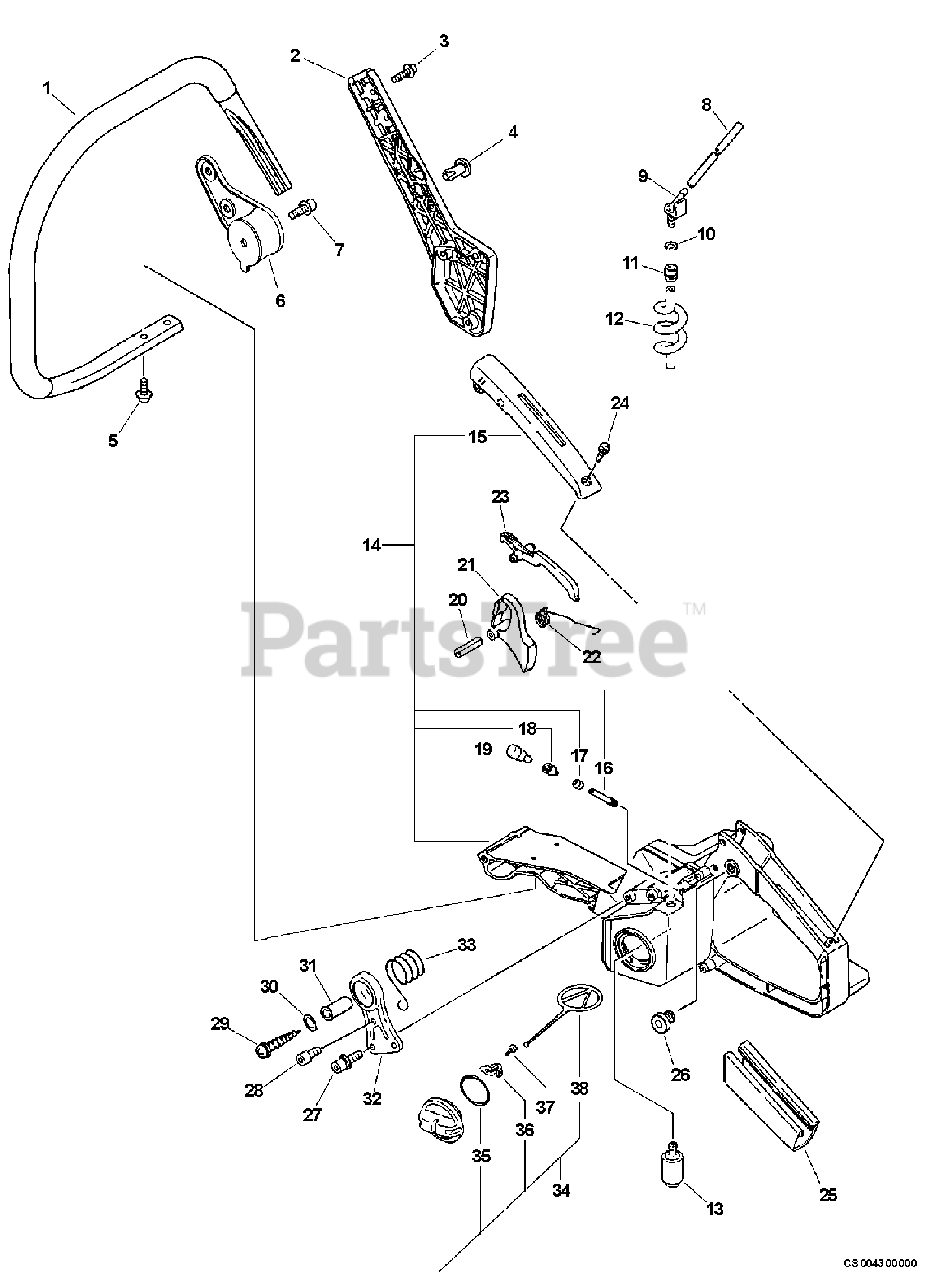

Handle, Trigger Parts Diagram

  • Title
1

Echo C400000100

HANDLE - FRONT
(Superseded to C400000101)

$88.99

$

In Stock, only 1 left!

0

2

Echo 35161638230

BRACKET, HANDLE

$47.99

$

Usually ships in 2-4 days

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

4

$0.99

$

In Stock, Qty 9

0

5

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

6

Echo V401000050

CUSHION

$19.99

$

Usually ships in 2-4 days

0

7

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

8

Echo 13201056030

PIPE - 3X6X110 -- BLACK
(Superseded to 13201056031)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 2 left!

0

9

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

12

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

14

Echo 35110338131

HANDLE ASSY - REAR
(Superseded to 35110338132)

Note: Includes ITEMS 15-19

$

$

Not available

15

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

16

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

17

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

18

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

19

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

20

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

21

Echo C450000040

TRIGGER, THROTTLE
(Superseded to C450000041)

$4.49

$

Usually ships in 2-4 days

0

22

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

23

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

24

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

25

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

26

$1.99

$

In Stock, only 4 left!

0

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

28

Echo 90010505008

SCREW - 5X8

$0.99

$

In Stock, Qty 20+

0

29

Echo 90010505035

SCREW - 5X35

$1.49

$

In Stock, only 1 left!

0

30

Echo 90063000005

WASHER - 5

$0.99

$

In Stock, only 3 left!

0

31

Echo V353000120

COLLAR - 5

$4.99

$

In Stock, only 2 left!

0

32

Echo V419000010

BRACKET, CUSHION

$6.99

$

In Stock, only 2 left!

0

33

$8.99

$

In Stock, only 4 left!

0

34

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 35-38

$3.49

$

In Stock, Qty 14

0

35

Echo 90072020029

O-RING - 29

$3.49

$

Usually ships in 2-4 days

0

36

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

37

Echo 90024603008

SCREW - 3X8

$

$

Not available

38

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
