CS-620 PW - Echo Chainsaw (SN: C69315001001 - C69315999999) Intake Parts Diagram

Chainsaw

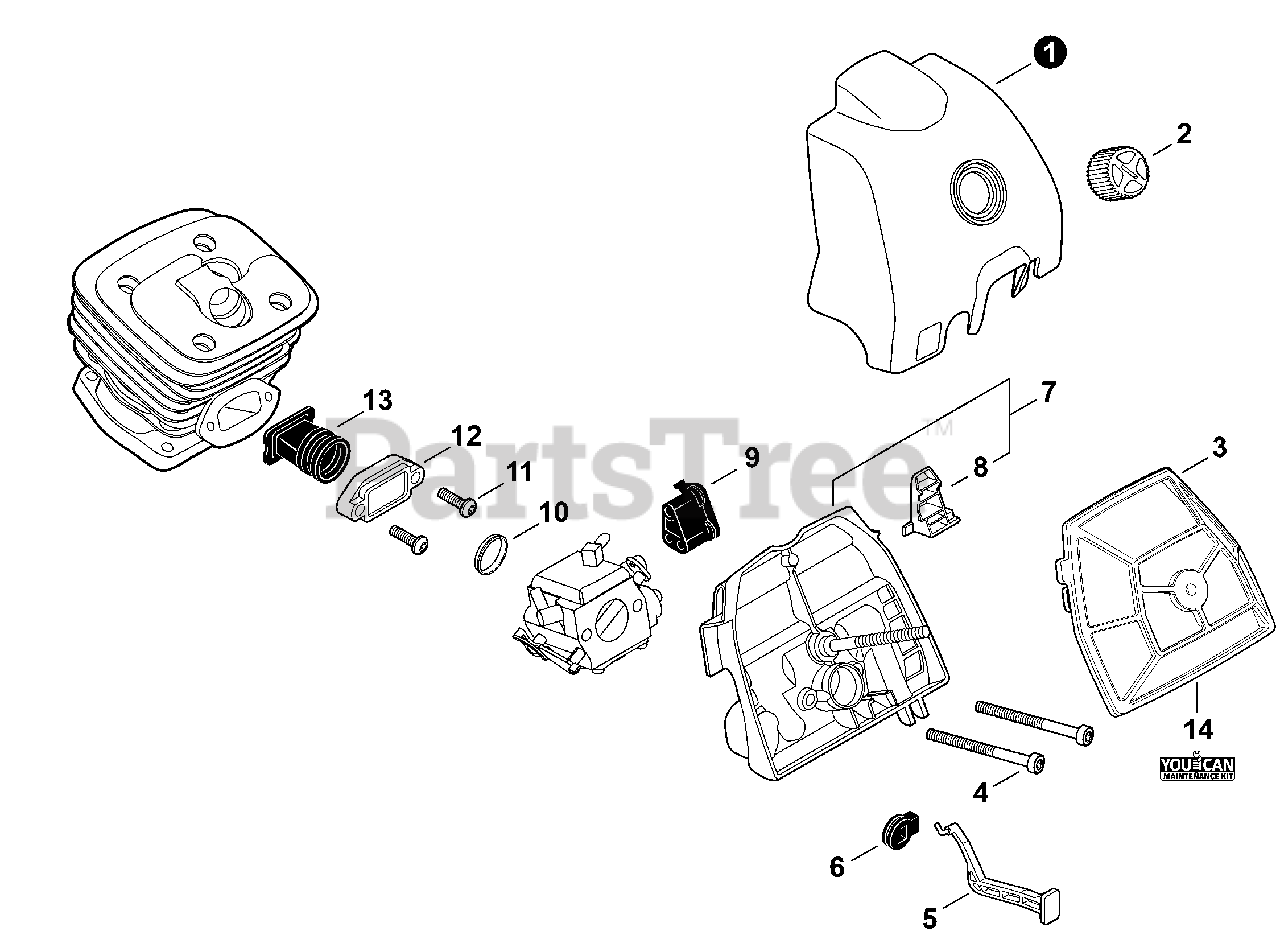

Intake Parts Diagram

  • Title
1

Echo A232000472

COVER, AIR FILTER

$11.99

$

In Stock, only 4 left!

0

2

Echo A235000201

KNOB, AIR FILTER COVER

$6.49

$

In Stock, only 3 left!

0

3

Echo P021016372

FILTER ASSY, AIR

$33.99

$

In Stock, Qty 11

0

4

Echo V805000080

BOLT, TORX 5×50

$1.99

$

In Stock, Qty 5

0

5

Echo A241000171

ROD, CHOKE
(Superseded to A241000172)

$10.99

$

In Stock, only 1 left!

0

6

Echo V130000030

GROMMET, CHOKE

$1.99

$

In Stock, only 4 left!

0

7

Echo P021016023

CASE, AIR FILTER

Note: Includes Item 8

$14.99

$

In Stock, only 1 left!

0

8

Echo A219000000

SHUTTER, AIR

$2.99

$

Usually ships in 2-4 days

0

9

Echo V131000020

GROMMET, NEEDLE

$5.49

$

In Stock, only 1 left!

0

10

Echo V360000060

COLLAR 18.6×20.4×4

$3.49

$

In Stock, only 1 left!

0

11

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo A206000010

HOLDER, BELLOWS

$8.49

$

Usually ships in 2-4 days

0

13

Echo A202000081

BELLOWS, INTAKE

$23.99

$

In Stock, only 1 left!

0

14

Echo 90167Y

TUNE-UP KIT - YOUCAN™

$43.99

$

In Stock, only 3 left!

0
