CS-620 PW - Echo Chainsaw (SN: C69315001001 - C69315999999) Handles Parts Diagram

Chainsaw

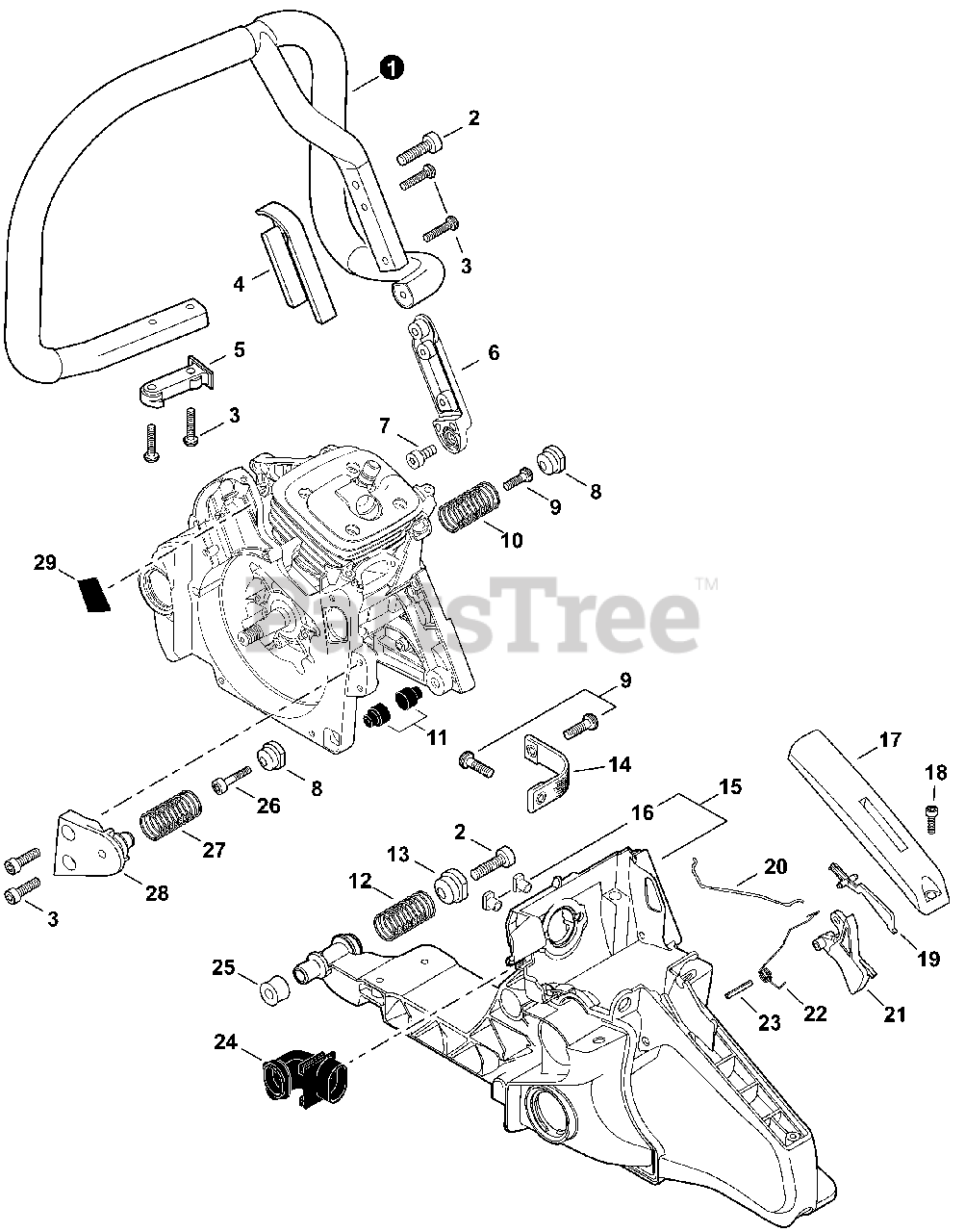

Handles Parts Diagram

  • Title

1

Echo C400001380

HANDLE, FRONT
(Superseded to C400001381)

$135.99

$

In Stock, only 3 left!

0

2

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

3

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

4

Echo V456000280

HOLDER, SPRING

$2.49

$

In Stock, Qty 5

0

5

Echo C405000570

MOUNT, HANDLE

$1.99

$

In Stock, only 2 left!

0

6

Echo C405000580

BRACKET, HANDLE

$5.49

$

In Stock, only 1 left!

0

7

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

8

Echo V456000080

HOLDER, SPRING Ø14.4

$2.99

$

Usually ships in 2-4 days

0

9

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo V450000730

SPRING, COMPRESSION Ø17×38.4×2.6

$9.49

$

In Stock, only 2 left!

0

11

Echo V420003800

CUSHION

$1.99

$

Usually ships in 2-4 days

0

12

Echo V450000771

SPRING, COMPRESSION Ø20×40×3.3

$9.49

$

Usually ships in 2-4 days

0

13

Echo V456000101

HOLDER, SPRING Ø17

$2.99

$

In Stock, only 1 left!

0

14

Echo C617000362

STRAP, SAFETY

$2.99

$

Usually ships in 2-4 days

0

15

Echo C410001252

HANDLE, REAR

Note: Includes Item 16

$85.99

$

In Stock, only 4 left!

0

16

Echo V263000450

NUT M5

$1.99

$

Usually ships in 2-4 days

0

17

Echo C411000001

COVER, HANDLE

$8.49

$

Usually ships in 2-4 days

0

18

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

19

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

20

Echo C454000170

ROD, THROTTLE

$7.99

$

In Stock, only 1 left!

0

21

Echo C450000360

TRIGGER, THROTTLE

$4.49

$

In Stock, only 1 left!

0

22

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 20+

0

23

Echo 90034540025

PIN, SPRING 4×25 SUS

$1.99

$

In Stock, Qty 6

0

24

Echo A239000060

PIPE, AIR INTAKE

$13.99

$

Usually ships in 2-4 days

0

25

Echo V404000210

CUSHION 10

$4.49

$

Usually ships in 2-4 days

0

26

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, Qty 7

0

27

Echo V450000760

SPRING, COMPRESSION Ø17×36.7×2.6

$7.99

$

In Stock, only 2 left!

0

28

Echo V456000090

HOLDER, SPRING

$4.49

$

Usually ships in 2-4 days

0

29

Echo V376001780

CUSHION

$1.49

$

Usually ships in 2-4 days

0
