CS-620 PW - Echo Chainsaw (SN: C27013001001 - C27013999999) Engine Parts Diagram

Chainsaw

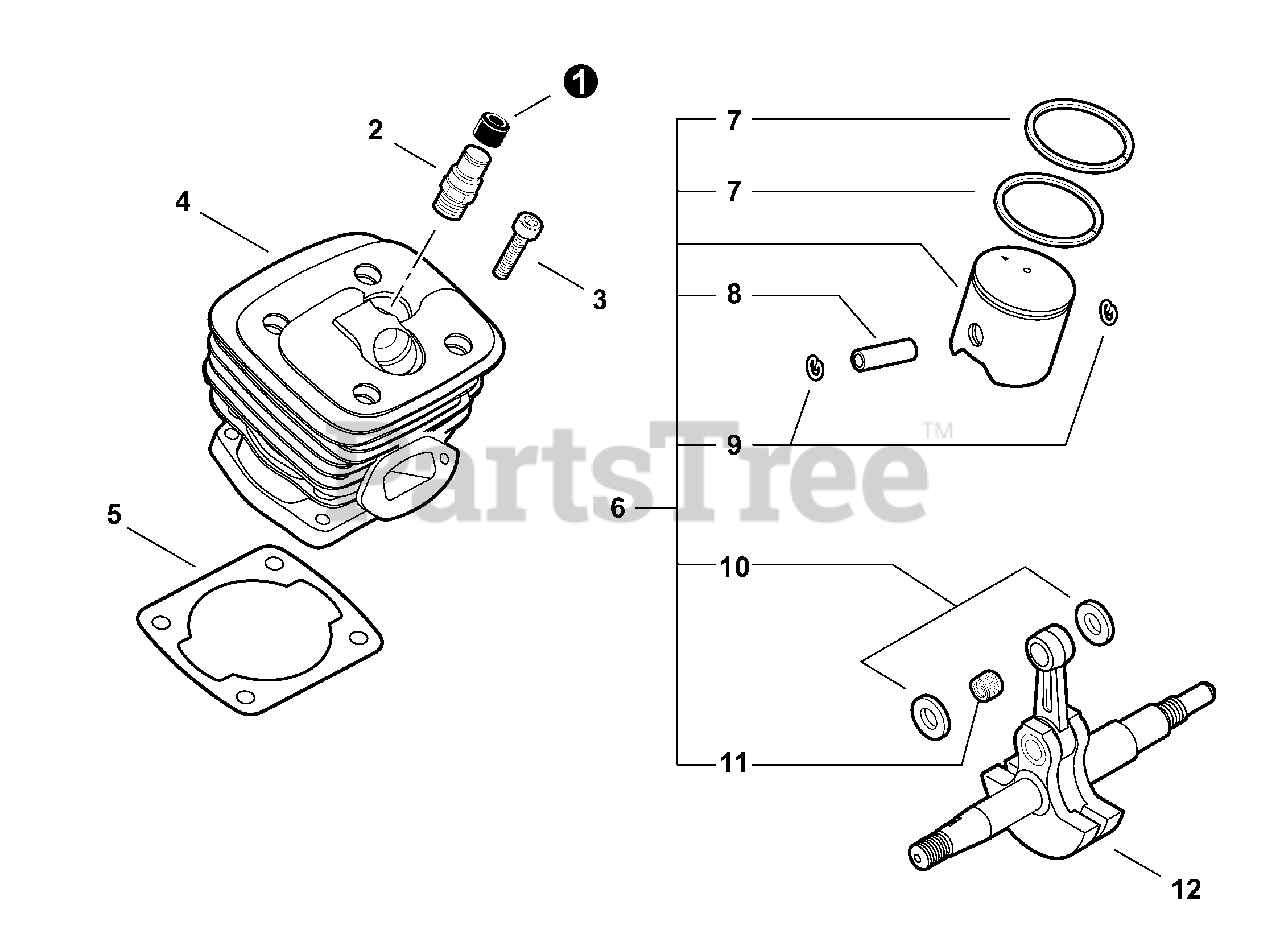

Engine Parts Diagram

  • Title
1

Echo V141000090

GROMMET,PLUG

$5.49

$

In Stock, only 1 left!

0

2

Echo A014000040

DECOMP,ASM
(Superseded to A014000110)

$46.99

$

In Stock, only 1 left!

0

3

Echo V805000220

BOLT, TORX 5

$1.49

$

In Stock, only 1 left!

0

4

Echo A130002160

CYLINDER

$177.99

$

In Stock, only 1 left!

0

5

Echo V100000270

GASKET,CYL

$3.49

$

In Stock, only 4 left!

0

6

Echo P021043990

PISTON KIT
(Superseded to P021043991)

Note: Includes Items 7-11

$81.99

$

In Stock, only 1 left!

0

7

Echo A101000210

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo V609000010

PIN,ENG 11

$5.99

$

Usually ships in 2-4 days

0

9

Echo V580000030

RING,END

$0.99

$

In Stock, Qty 8

0

10

Echo V308000040

WASHER,CIRCULAR 11

$3.49

$

In Stock, only 1 left!

0

11

Echo V556000000

BEARING,NEEDLE 11

$13.99

$

Usually ships in 2-4 days

0

12

Echo A011001270

CRANKSHAFT,ASY

$237.99

$

Usually ships in 2-4 days

0
