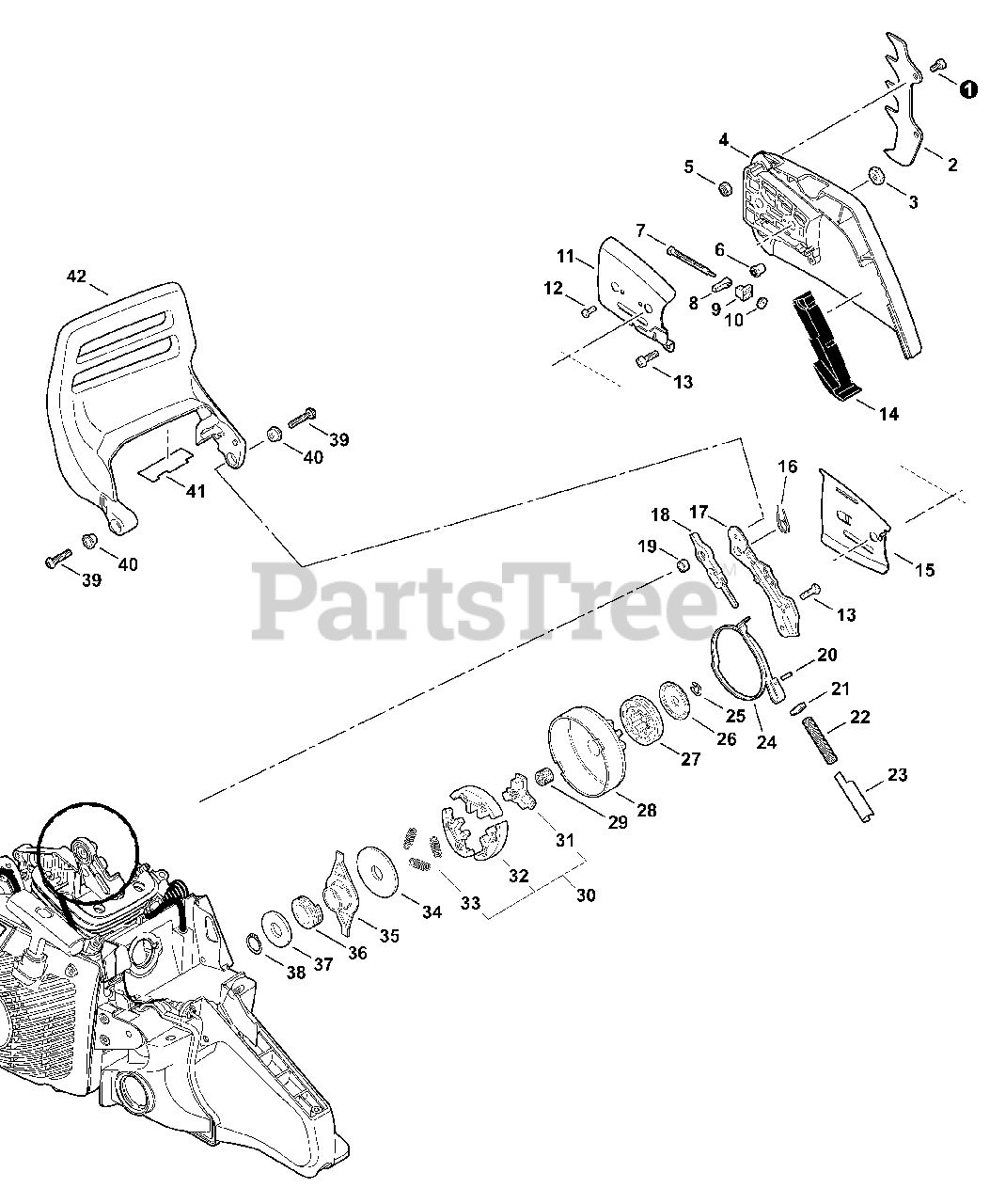

CS-620 PW - Echo Chainsaw (SN: C27013001001 - C27013999999) Chain Brake Parts Diagram

Chainsaw

Chain Brake Parts Diagram

  • Title

1

Echo V805000300

BOLT, TORX 5

$1.49

$

In Stock, Qty 16

0

2

Echo C304000300

SPIKED

$20.99

$

Usually ships in 2-4 days

0

3

Echo V265000250

NUT

$0.99

$

In Stock, Qty 18

0

4

Echo C300000991

GUARD, SPROCKET
(Superseded to C300001200)

$51.99

$

In Stock, only 1 left!

0

5

Echo 90056000005

NUT, LOCK 5

$1.49

$

In Stock, Qty 20+

0

6

Echo V651001040

GEAR,BEVEL

$17.99

$

Usually ships in 2-4 days

0

7

Echo V203002140

SCREW, TENSIONER - 63 MM

$5.99

$

In Stock, Qty 14

0

8

Echo C309000160

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 8

0

9

Echo V651001050

GEAR,BEVEL

$8.49

$

In Stock, only 4 left!

0

10

Echo V355000800

COLLAR,8

$1.49

$

In Stock, Qty 20+

0

11

Echo C305000101

PLATE,SPROCKET GUARD

$11.99

$

In Stock, only 1 left!

0

12

Echo 9132503005

SCREW

$0.99

$

In Stock, Qty 20+

0

13

Echo V804000000

BOLT, TORX 4

$0.99

$

In Stock, Qty 20+

0

14

Echo C302000011

PAD, GUARD

$11.99

$

In Stock, only 1 left!

0

15

Echo C305000111

PLATE,SPROCKET GUARD

$14.99

$

In Stock, only 1 left!

0

16

Echo V452000400

SPRING,TORSION

$3.49

$

In Stock, only 2 left!

0

17

Echo C345000283

COVER,BRAKE

$8.49

$

In Stock, only 2 left!

0

18

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$16.99

$

Usually ships in 2-4 days

0

19

Echo V356000470

COLLAR,10

$6.49

$

In Stock, only 1 left!

0

20

Echo 9305030098

ROLLER

$0.99

$

In Stock, Qty 20+

0

21

Echo V376000450

SPACER

$0.99

$

In Stock, Qty 20+

0

22

Echo V450000740

SPRING,COMPRESSION

$14.99

$

In Stock, only 1 left!

0

23

Echo C603000220

PLATE, SIDE

$3.99

$

Usually ships in 2-4 days

0

24

Echo C328000121

BAND, BRAKE

$14.99

$

Usually ships in 2-4 days

0

25

Echo V583000440

RING

$1.49

$

In Stock, Qty 20+

0

26

Echo V307000520

WASHER,CIRCULAR 10

$2.49

$

In Stock, only 4 left!

0

27

Echo 17503314731

SPROCKET, RIM 68210S

$14.99

$

In Stock, only 3 left!

0

28

Echo A556001610

DRUM, CLUTCH

$73.99

$

In Stock, only 2 left!

0

29

Echo V555000160

BEARING,NEEDLE 10
(Superseded to V555000010)

$10.99

$

In Stock, Qty 7

0

30

Echo A056000221

CLUTCH ASY

Note: Includes Items 31-33

$64.99

$

In Stock, Qty 8

0

31

Echo A552000110

HUB, CLUTCH

$63.99

$

Usually ships in 2-4 days

0

32

Echo P021007051

CLUTCH SHOE SET

$34.99

$

Usually ships in 2-4 days

0

33

Echo V451000500

SPRING,TENSION

$3.49

$

In Stock, Qty 15

0

34

Echo A551000110

PLATE, CLUTCH

$8.49

$

In Stock, Qty 5

0

35

Echo V358000090

COLLAR,14

$13.99

$

Usually ships in 2-4 days

0

36

Echo V652000050

GEAR,WORM

$12.99

$

Usually ships in 2-4 days

0

37

Echo V311000090

WASHER,CIRCULAR 16-1

$1.99

$

In Stock, Qty 9

0

38

Echo 90070100015

CIRCLIP 15

$1.49

$

In Stock, only 2 left!

0

39

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

40

Echo V356000440

COLLAR,10

$3.49

$

In Stock, Qty 11

0

41

Echo V341000131

WASHER,SQUARE

$2.99

$

In Stock, only 4 left!

0

42

Echo C320000182

LEVER, BRAKE

$30.99

$

In Stock, Qty 5

0
