CS-620 P - Echo Chainsaw (SN: C84429001001 - C84429999999) Engine S/N C84429001049 - C84429999999 Parts Diagram

Chainsaw

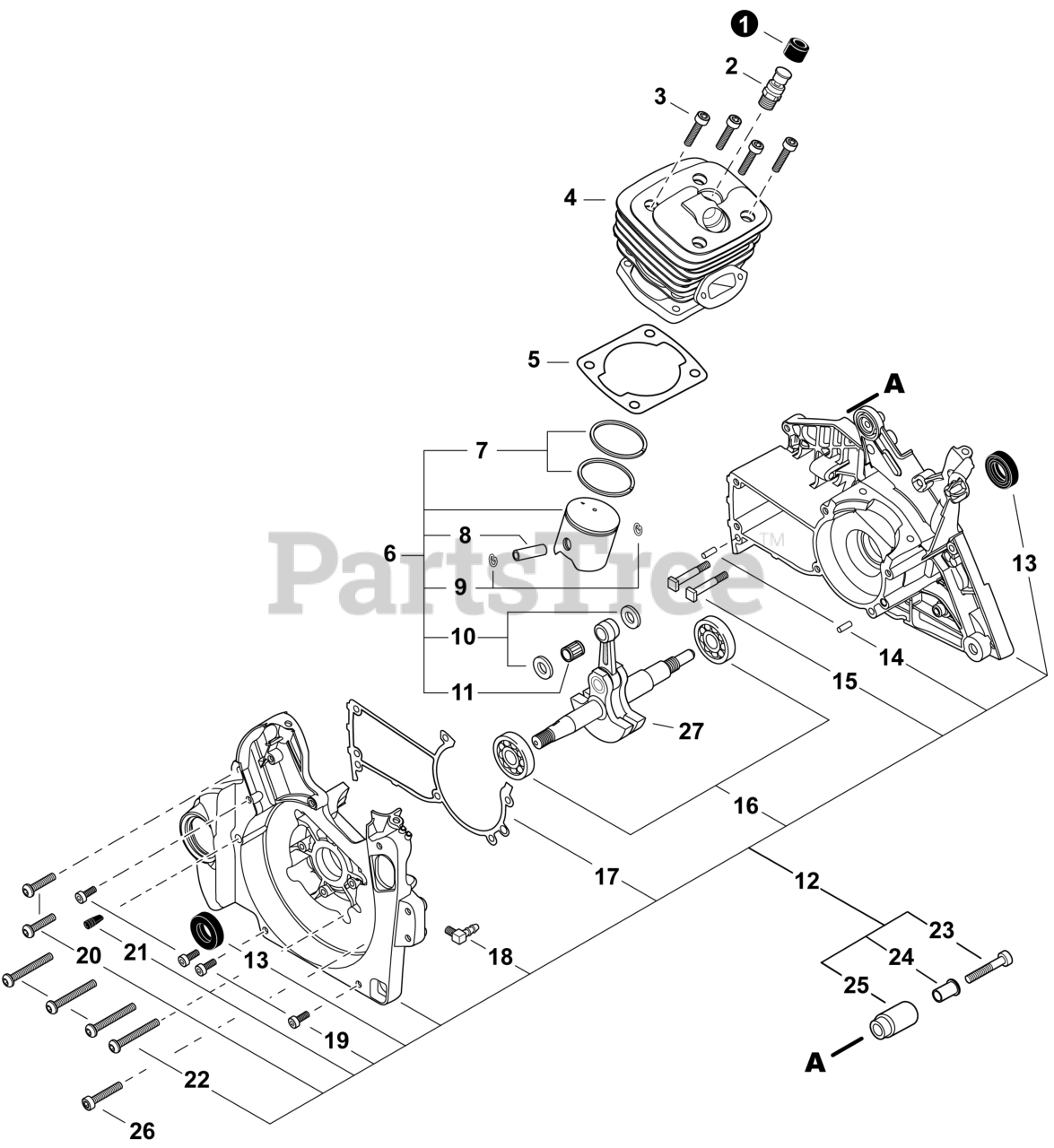

Engine S/N C84429001049 - C84429999999 Parts Diagram

  • Title
1

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

2

Echo A014000110

VALVE ASSY, DECOMPRESSION

$46.99

$

In Stock, only 1 left!

0

3

Echo V805000220

BOLT, TORX 5x25

$1.49

$

In Stock, only 1 left!

0

4

Echo A130002160

CYLINDER

$177.99

$

In Stock, only 1 left!

0

5

Echo V100000270

GASKET, CYLINDER

$3.49

$

In Stock, only 4 left!

0

6

Echo P021043991

PISTON KIT

Note: Includes items 7-11

$81.99

$

In Stock, only 1 left!

0

7

Echo A101000210

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo V609000010

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

9

Echo V580000030

RING, SNAP 11

$0.99

$

In Stock, Qty 8

0

10

Echo V308000040

WASHER, THRUST

$3.49

$

In Stock, only 1 left!

0

11

Echo V556000000

BEARING, NEEDLE 11

$13.99

$

Usually ships in 2-4 days

0

12

Echo P200001310

CRANKCASE KIT

Note: Includes Items 13-25

$138.99

$

Usually ships in 2-4 days

0

13

Echo V508000100

SEAL, OIL 15

$5.49

$

In Stock, only 4 left!

0

14

Echo 90033050100

PIN, LOCATING 5x10

$0.99

$

Usually ships in 2-4 days

0

15

Echo 43301119831

STUD, GUIDE BAR 8

$2.99

$

In Stock, only 2 left!

0

16

Echo 9403646202

BEARING, BALL 6202

$9.99

$

Usually ships in 2-4 days

0

17

Echo V102000060

GASKET, CRANKCASE

$4.99

$

In Stock, Qty 8

0

18

Echo 43723914730

CONNECTOR, PIPE

$7.99

$

Usually ships in 2-4 days

0

19

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

20

Echo V805000010

BOLT, TORX 5x20

$0.99

$

Usually ships in 2-4 days

0

21

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

22

Echo V805000020

BOLT, TORX 5x35
(Superseded to Discontinued)

$

$

Not available

23

Echo V856000010

BOLT, TORX 6x30

$2.99

$

Usually ships in 2-4 days

0

24

Echo V354000650

COLLAR 6

$5.49

$

Usually ships in 2-4 days

0

25

Echo C310000030

CATCHER, CHAIN

$2.49

$

Usually ships in 2-4 days

0

26

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

27

Echo A011001270

CRANKSHAFT ASSY

$237.99

$

Usually ships in 2-4 days

0
