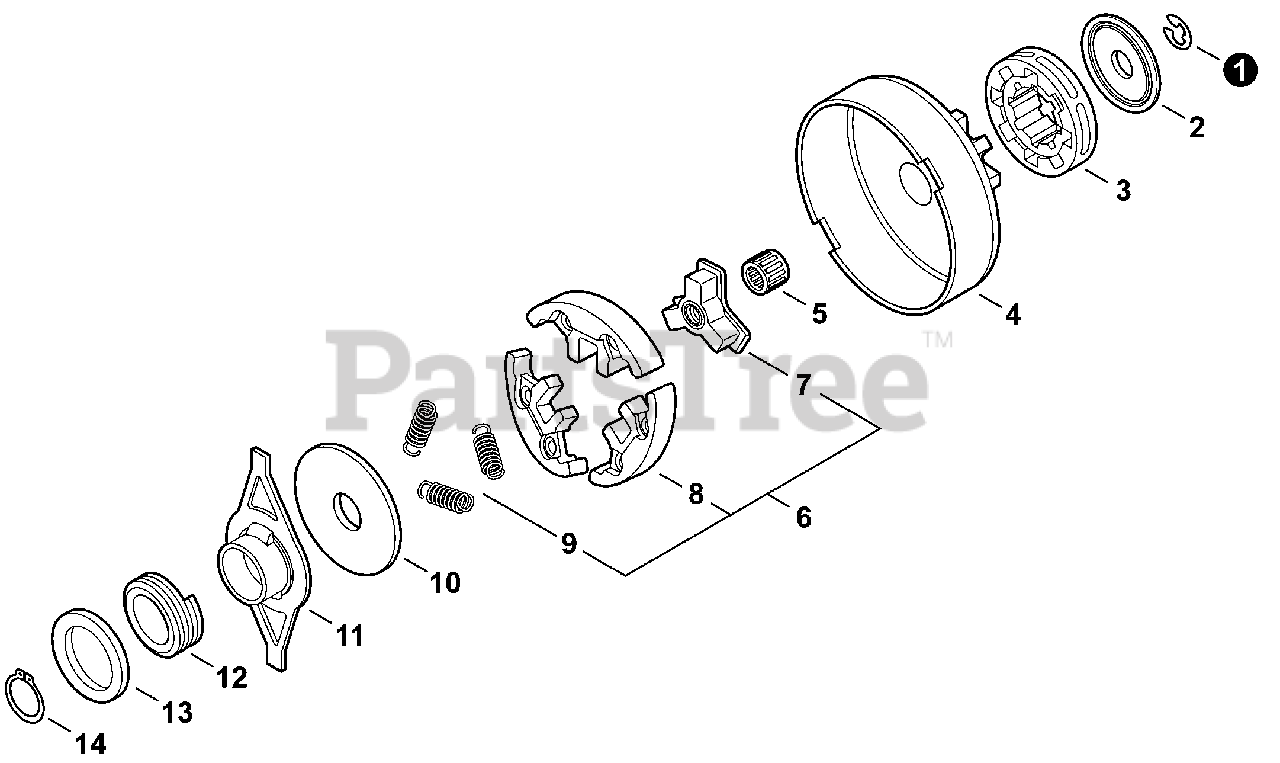

CS-620 P - Echo Chainsaw (SN: C69215001001 - C69215999999) Clutch Parts Diagram

Chainsaw

Clutch Parts Diagram

  • Title

1

Echo V583000440

E-RING Ø8.1

$1.49

$

In Stock, Qty 20+

0

2

Echo V307000520

WASHER 10

$2.49

$

In Stock, Qty 9

0

3

Echo 17503314731

SPROCKET, RIM 3/8"×7T

$14.99

$

In Stock, only 1 left!

0

4

Echo A556001610

DRUM, CLUTCH

$73.99

$

In Stock, only 2 left!

0

5

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, only 4 left!

0

6

Echo A056000221

CLUTCH ASSY

Note: Includes Items 7-9

$64.99

$

In Stock, Qty 9

0

7

Echo A552000110

HUB, CLUTCH

$63.99

$

Usually ships in 2-4 days

0

8

Echo P021007051

SHOE SET, CLUTCH (3PCS)

$34.99

$

Usually ships in 2-4 days

0

9

Echo V451000500

SPRING, TENSION

$3.49

$

In Stock, Qty 20+

0

10

Echo A551000110

PLATE, CLUTCH

$8.49

$

In Stock, Qty 5

0

11

Echo V358000090

COLLAR 15×19×73

$13.99

$

In Stock, only 4 left!

0

12

Echo V652000050

GEAR, WORM

$12.99

$

In Stock, only 2 left!

0

13

Echo V311000090

WASHER 15.5×22.5×0.5

$1.99

$

In Stock, Qty 11

0

14

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 4 left!

0
