CS-620 P - Echo Chainsaw (SN: C32026001001 - C32026999999) Engine Cover, Oil System Parts Diagram

Chainsaw

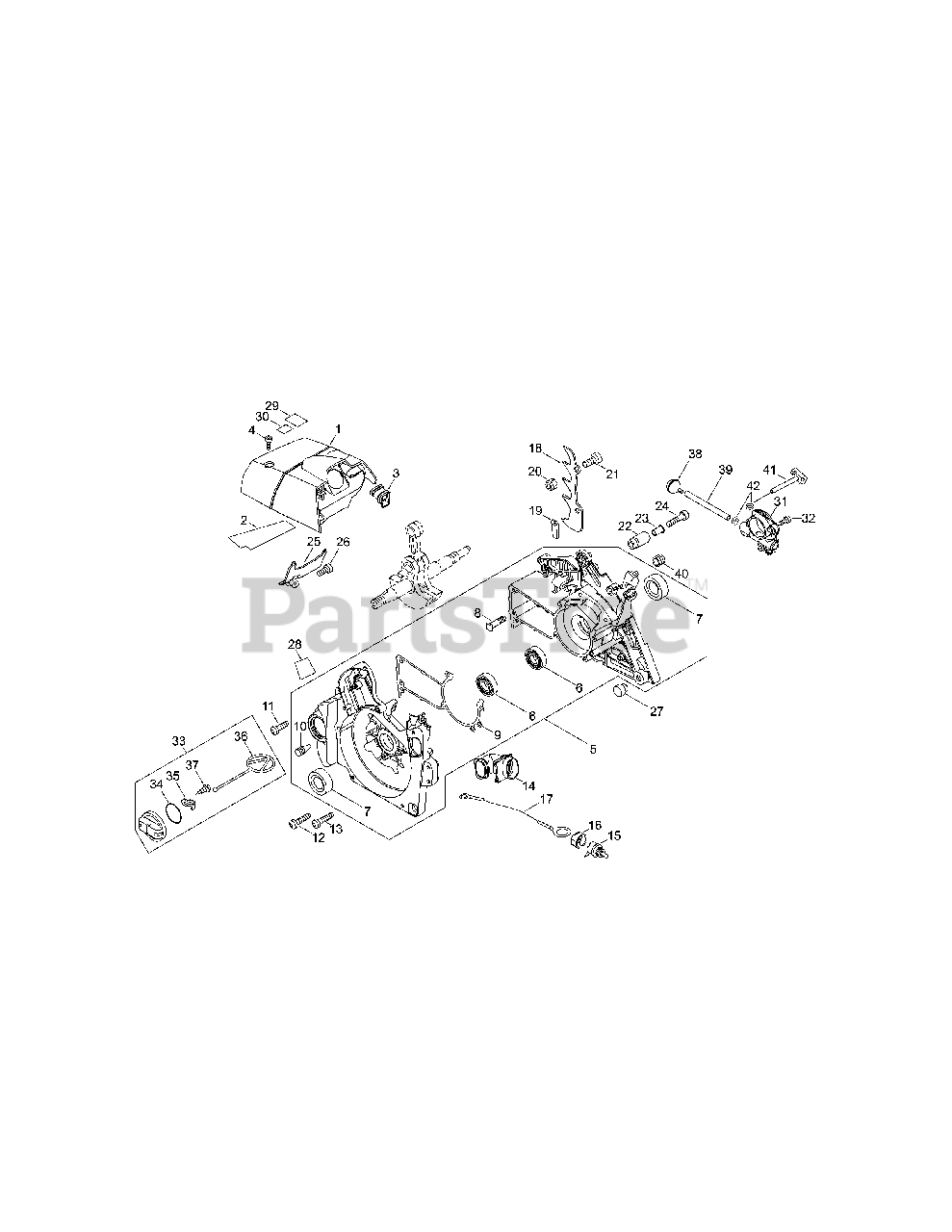

Engine Cover, Oil System Parts Diagram

  • Title

1

Echo A160001081

COVER,CYLINDER

$17.99

$

Usually ships in 2-4 days

0

2

Echo V341000140

WASHER,SQUARE

$2.99

$

In Stock, only 1 left!

0

3

Echo A239000070

PIPE, INTAKE

$5.99

$

In Stock, only 1 left!

0

4

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

5

Echo P021044011

CRANK CASE SET
(Superseded to P200001310)

Note: Includes Items 6-10

$138.99

$

Usually ships in 2-4 days

0

6

Echo 9403646202

BEARING BALL

$9.99

$

Usually ships in 2-4 days

0

7

Echo V508000010

SEAL,OIL 15
(Superseded to V508000100)

$5.49

$

In Stock, Qty 7

0

8

Echo V205000401

BOLT,8
(Superseded to 43301119831)

$2.99

$

Usually ships in 2-4 days

0

9

Echo V102000060

GASKET,CRANKCASE

$4.99

$

In Stock, Qty 8

0

10

Echo 43611413930

VALVE, CHECK

$6.49

$

In Stock, only 1 left!

0

11

Echo V805000010

BOLT, TORX 5

$0.99

$

Usually ships in 2-4 days

0

12

Echo V805000020

BOLT, TORX 5
(Superseded to Discontinued)

$

$

Not available

13

Echo V805000170

BOLT, TORX 5

$0.99

$

Usually ships in 2-4 days

0

14

Echo A239000060

PIPE, INTAKE

$13.99

$

Usually ships in 2-4 days

0

15

Echo A440001190

SWITCH, ON OFF

$12.99

$

In Stock, only 1 left!

0

16

Echo A472000091

CASE,SWITCH

$1.99

$

In Stock, only 1 left!

0

17

Echo V485001101

LEAD

$3.99

$

Usually ships in 2-4 days

0

18

Echo C304000290

SPIKED

$20.99

$

Usually ships in 2-4 days

0

19

Echo V376001890

SPACER

$1.49

$

Usually ships in 2-4 days

0

20

Echo 90056000005

NUT, LOCK 5

$1.49

$

In Stock, Qty 20+

0

21

Echo V805000250

BOLT, TORX 5

$0.99

$

In Stock, Qty 8

0

22

Echo C310000030

CATCHER,CHAIN

$2.49

$

Usually ships in 2-4 days

0

23

Echo V353000120

COLLAR,5

$4.99

$

In Stock, only 2 left!

0

24

Echo V805000020

BOLT, TORX 5
(Superseded to Discontinued)

$

$

Not available

25

Echo E106000020

GUIDE,AIR

$3.49

$

Usually ships in 2-4 days

0

26

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

27

Echo V420003800

CUSHION

$1.99

$

Usually ships in 2-4 days

0

28

Echo V376001780

SPACER

$1.49

$

Usually ships in 2-4 days

0

29

Echo 89034539231

LABEL,CAUTION

$2.99

$

Usually ships in 2-4 days

0

30

Echo X505006940

LABEL,CAUTION

$1.49

$

Usually ships in 2-4 days

0

31

Echo C022000052

AUTO-OILER ASSEMBLY
(Superseded to C022000053)

$62.99

$

In Stock, Qty 8

0

32

Echo V804000000

BOLT, TORX 4

$0.99

$

In Stock, Qty 20+

0

33

Echo P021016031

CAP, OIL
(Superseded to P100004881)

Note: Includes Items 34-37

$12.99

$

In Stock, only 2 left!

0

34

Echo 90072000028

O-RING 28

$3.49

$

Usually ships in 2-4 days

0

35

Echo 13105019830

RETAINER, LINK
(Superseded to Discontinued)

$

$

Not available

36

Echo 13105119830

LINK
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

37

Echo 90024603008

SCREW 3×8

$

$

Not available

38

Echo 43620514730

STRAINER, OIL

$8.99

$

In Stock, only 3 left!

0

39

Echo 43721030830

PIPE, OIL
(Superseded to 43721030831)

$5.99

$

In Stock, only 3 left!

0

40

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

41

Echo V470000830

PIPE
(Superseded to V470000831)

$9.99

$

Usually ships in 2-4 days

0

42

Echo V490001240

CLIP

$0.99

$

In Stock, Qty 17

0
