CS-601 SVL - Echo Chainsaw Carburetor (1) Parts Diagram

Chainsaw

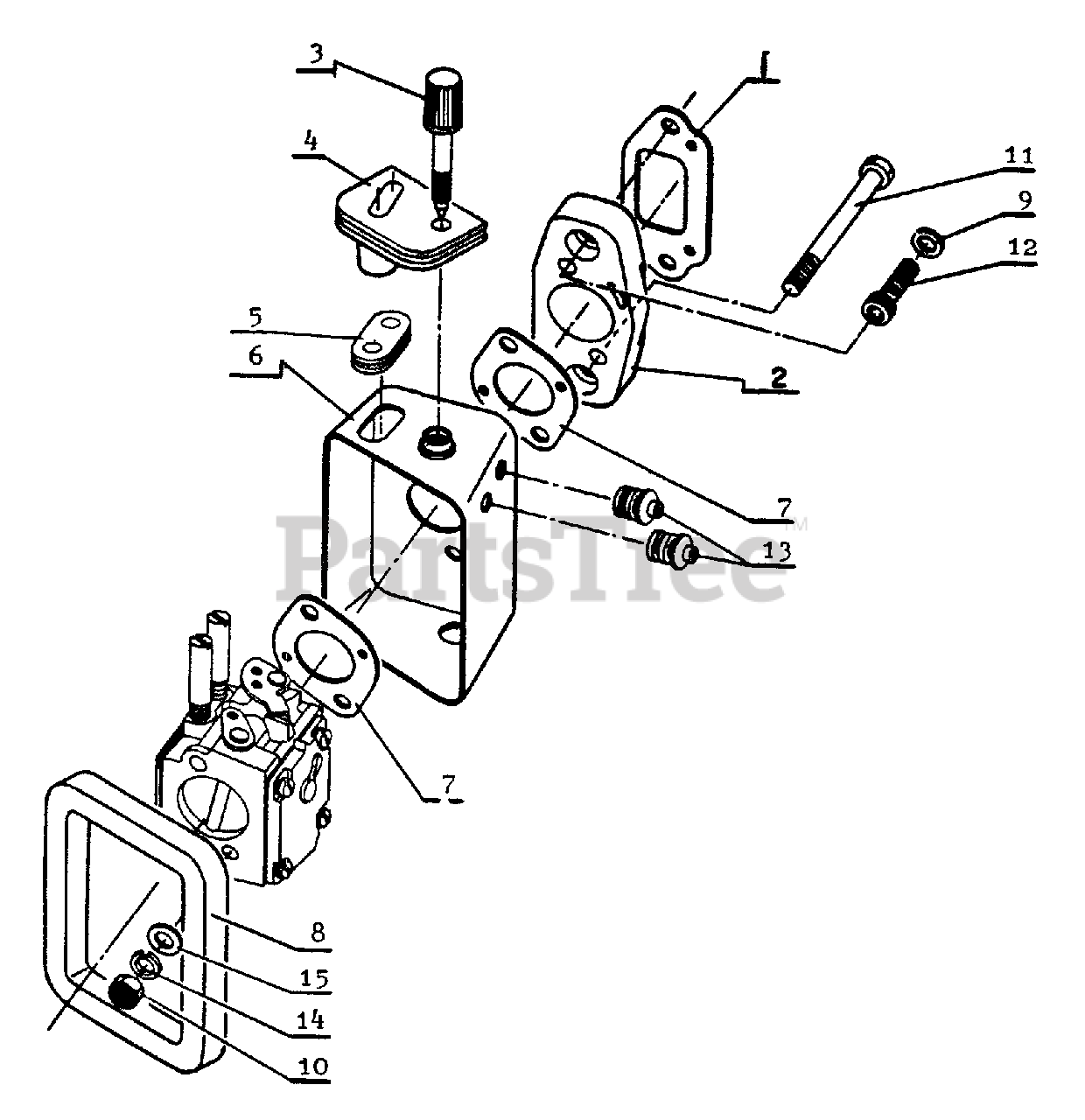

Carburetor (1) Parts Diagram

  • Title

1

Echo 13001002831

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 13000503730

INSULATOR
(Superseded to 13000503731)

Note: Exclusive for CS-701SVL

$

$

Not available

2

Echo 13000502832

INSULATOR
(Superseded to 13000502833)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

3

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

4

Echo 17821202831

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 12901003730

GROMMET

Note: Exclusive for CS-701SVL

$1.49

$

Usually ships in 2-4 days

0

5

Echo 12901002830

GROMMET
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

6

Echo 13030603730

CASE, CARBURETOR
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL

$

$

Not available

6

Echo 13030602831

CASE, CARBURETOR
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

7

Echo 13001603730

GASKET, INTAKE
(Superseded to 13001603731)

$0.99

$

In Stock, Qty 20+

0

8

Echo 13032002831

GASKET, CARBURETOR CASE
(Superseded to Discontinued)

$

$

Not available

9

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

10

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

11

Echo 13002102830

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 19

0

13

Echo 17881102830

GROMMET
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

15

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
