CS-601 S - Echo Chainsaw Rear Handle Parts Diagram

Chainsaw

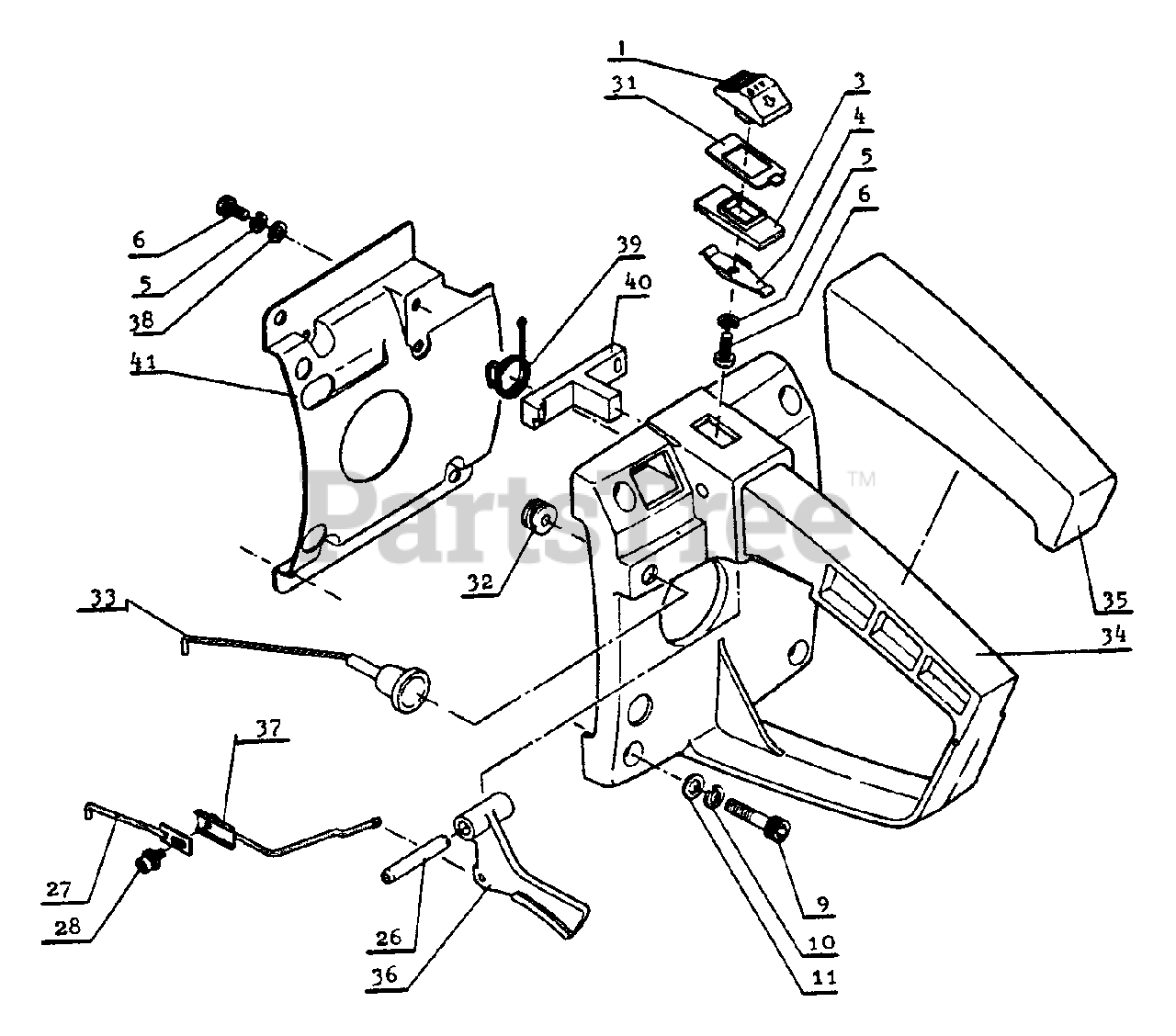

Rear Handle Parts Diagram

  • Title
1

Echo 16341002830

KNOB, SWITCH
(Superseded to Discontinued)

$

$

Not available

3

Echo 16341102830

GUIDE, SWITCH

$3.49

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

6

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

10

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

11

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

26

Echo 17811002830

PIN
(Superseded to Discontinued)

$

$

Not available

27

Echo 17803202830

ROD, THROTTLE - B
(Superseded to Discontinued)

$

$

Not available

28

Echo 17801802831

SCREW - 3X6
(Superseded to Discontinued)

$

$

Not available

31

Echo 16341302830

PLATE - GROUND

Note: Exclusive for CS-601S

$1.49

$

Usually ships in 2-4 days

0

32

Echo 17881000230

GROMMET

Note: Exclusive for CS-601S

$1.99

$

Usually ships in 2-4 days

0

33

Echo 17850102830

ROD, CHOKE

Note: Exclusive for CS-601S

$

$

Currently unavailable

34

Echo 35101002830

HANDLE - REAR
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

35

Echo 35101202830

HANDLE - REAR
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

36

Echo 17801002830

TRIGGER, THROTTLE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

37

Echo 17800602830

ROD, THROTTLE - A
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

38

Echo 90060000004

WASHER - 4

Note: Exclusive for CS-601S

$0.99

$

In Stock, Qty 12

0

39

Echo 17981202830

SPRING
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

40

Echo 17981002830

LEVER, DECOMPRESSION
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

41

Echo 10151402830

COVER, ENGINE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available
