CS-601 S - Echo Chainsaw Clutch Parts Diagram

Chainsaw

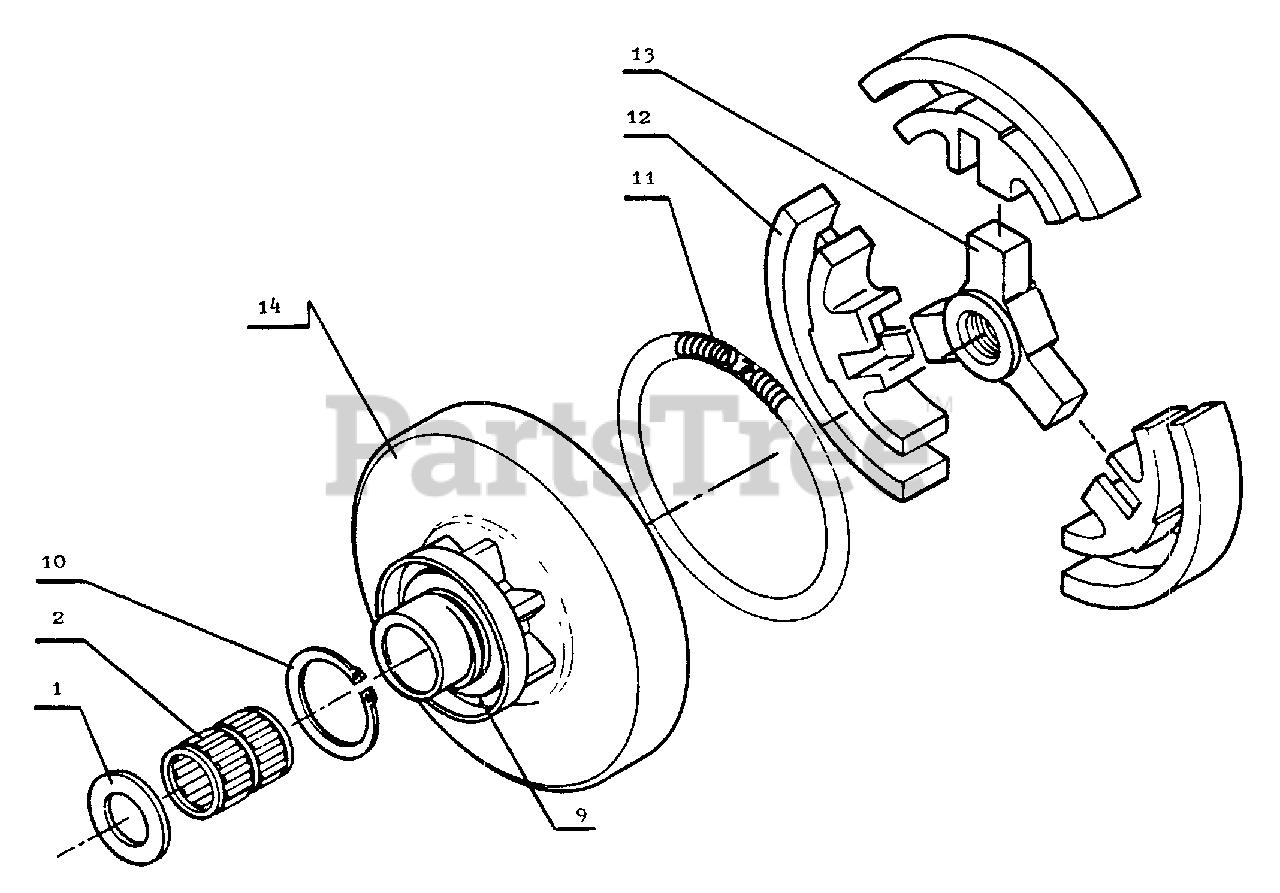

Clutch Parts Diagram

  • Title

1

Echo 17501502830

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

2

Echo 17501202830

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 17500502831

CASE, CLUTCH
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL; Includes 9 and 10.

$

$

Not available

9

Echo 17503902831

SPACER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90070100020

RING, RETAINING - 20

$1.49

$

In Stock, only 1 left!

0

Echo 17500002830

CLUTCH ASSY
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL; Includes 11-13

$

$

Not available

11

Echo 17501802831

SPRING, CLUTCH
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

12

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

13

Echo 17501602830

HUB, CLUTCH
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available
