CS-601 S - Echo Chainsaw Carburetor (2) Parts Diagram

Chainsaw

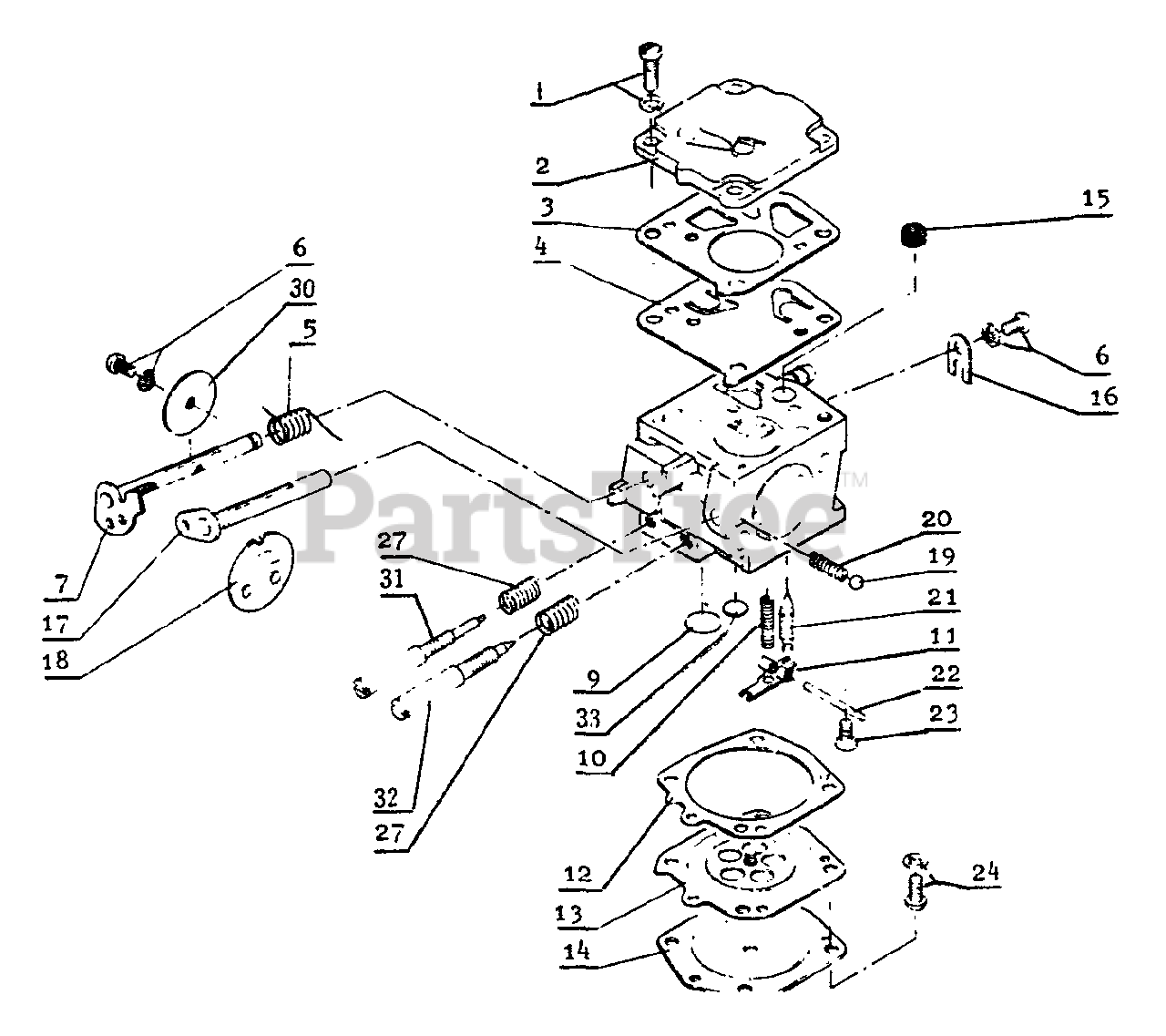

Carburetor (2) Parts Diagram

  • Title

Echo 12200002830

CARBURETOR
(Superseded to Discontinued)

Note: CS-601S, CS-601SVL; Consists of 1 - 33

$

$

Not available

1

Echo 12211000230

SCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 12212400230

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12212500230

GASKET, PUMP

$3.49

$

Usually ships in 2-4 days

0

4

Echo 12211200230

DIAPHRAGM, PUMP

$6.49

$

Usually ships in 2-4 days

0

5

Echo 12211300230

SPRING, RETURN

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12211400230

SCREW
(Superseded to 12211400231)

$

$

Not available

7

Echo 12211702830

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12214500230

PLUG, WELCH - LARGE
(Superseded to Discontinued)

$

$

Not available

10

Echo 12212200230

SPRING, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12212300230

LEVER, METERING

$2.99

$

Usually ships in 2-4 days

0

12

Echo 12214000230

GASKET, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

13

Echo 12214100230

DIAPHRAGM

$23.99

$

Usually ships in 2-4 days

0

14

Echo 12214200230

COVER, DIAPHRAGM

$3.49

$

In Stock, only 1 left!

0

15

Echo 12212600230

STRAINER
(Superseded to Discontinued)

$

$

Not available

16

Echo 12212700230

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

17

Echo 12213102830

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

18

Echo 12213202830

VALVE, CHOKE

$

$

Currently unavailable

19

Echo 12213600230

BALL, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

20

Echo 12213500230

SPRING, CHOKE SET
(Superseded to Discontinued)

$

$

Not available

21

Echo 12213700230

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

22

Echo 12213800230

PIN, METERING LEVER

$1.99

$

Usually ships in 2-4 days

0

23

Echo 12213900230

SCREW, METERING LEVER PIN
(Superseded to Discontinued)

$

$

Not available

24

Echo 12214400230

SCREW
(Superseded to Discontinued)

$

$

Not available

27

Echo 12211900230

SCREW, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12211600230

VALVE, THROTTLE

Note: CS-601S, CS-601SVL

$5.49

$

Usually ships in 2-4 days

0

31

Echo 12211800230

SCREW, IDLE ADJUST
(Superseded to Discontinued)

Note: CS-601S, CS-601SVL

$

$

Not available

32

Echo 12212000230

SCREW, MAIN ADJUST
(Superseded to Discontinued)

Note: CS-601S, CS-601SVL

$

$

Not available

33

Echo 12214600230

PLUG, WELCH - SMALL
(Superseded to Discontinued)

Note: CS-601S, CS-601SVL

$

$

Not available
