CS-600 P - Echo Chainsaw (SN: C22413001001 - C22413999999) Fuel System S/N: C22413001151 - C22413999999 Parts Diagram

Chainsaw

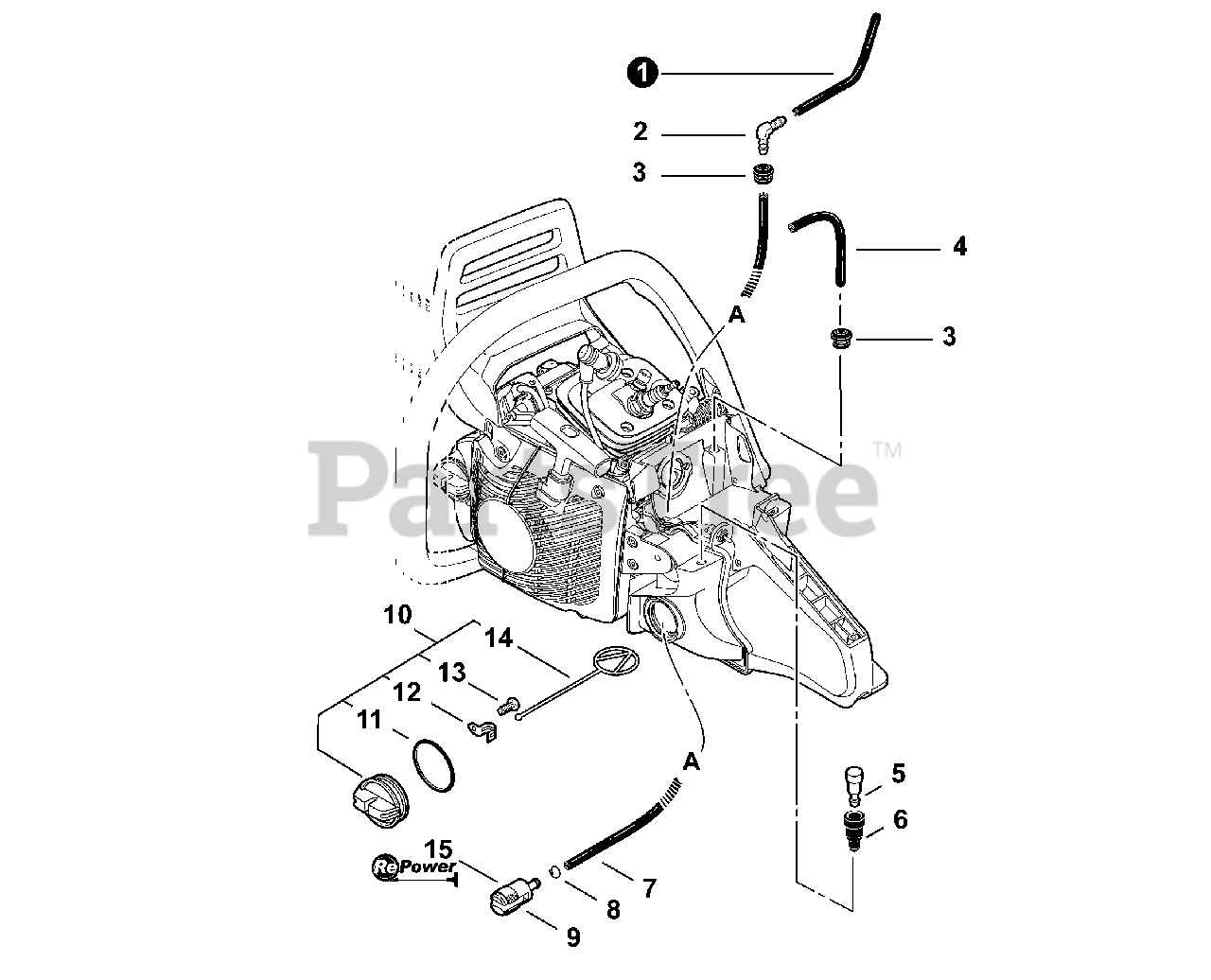

Fuel System S/N: C22413001151 - C22413999999 Parts Diagram

  • Title
1

Echo V471003860

PIPE, FUEL 3×6×135
(Superseded to V471003861)

$4.99

$

In Stock, only 1 left!

0

2

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 20+

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 15

0

4

Echo 13011030830

PIPE, IMPULSE 3×6(8)×160
(Superseded to 13011030831)

$2.99

$

In Stock, only 1 left!

0

5

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 5

0

6

Echo A359000000

GROMMET, VENT
(Superseded to A359000001)

$7.49

$

In Stock, only 1 left!

0

7

Echo V471000600

PIPE, FUEL 3×5×120 BLACK
(Superseded to V471000601)

$0.99

$

In Stock, only 4 left!

0

8

$0.99

$

In Stock, Qty 19

0

9

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

10

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 11-14

$3.49

$

In Stock, Qty 17

0

11

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

12

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

14

Echo 13105119830

CONNECTOR, CAP L= 60mm
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

15

Echo 90167

TUNE-UP KIT - REPOWER
(Superseded to 90167Y)

$43.99

$

In Stock, only 3 left!

0
