CS-600 P - Echo Chainsaw (SN: C22413001001 - C22413999999) Chain Brake S/N: C22413001001 - C22413001550 Parts Diagram

Chainsaw

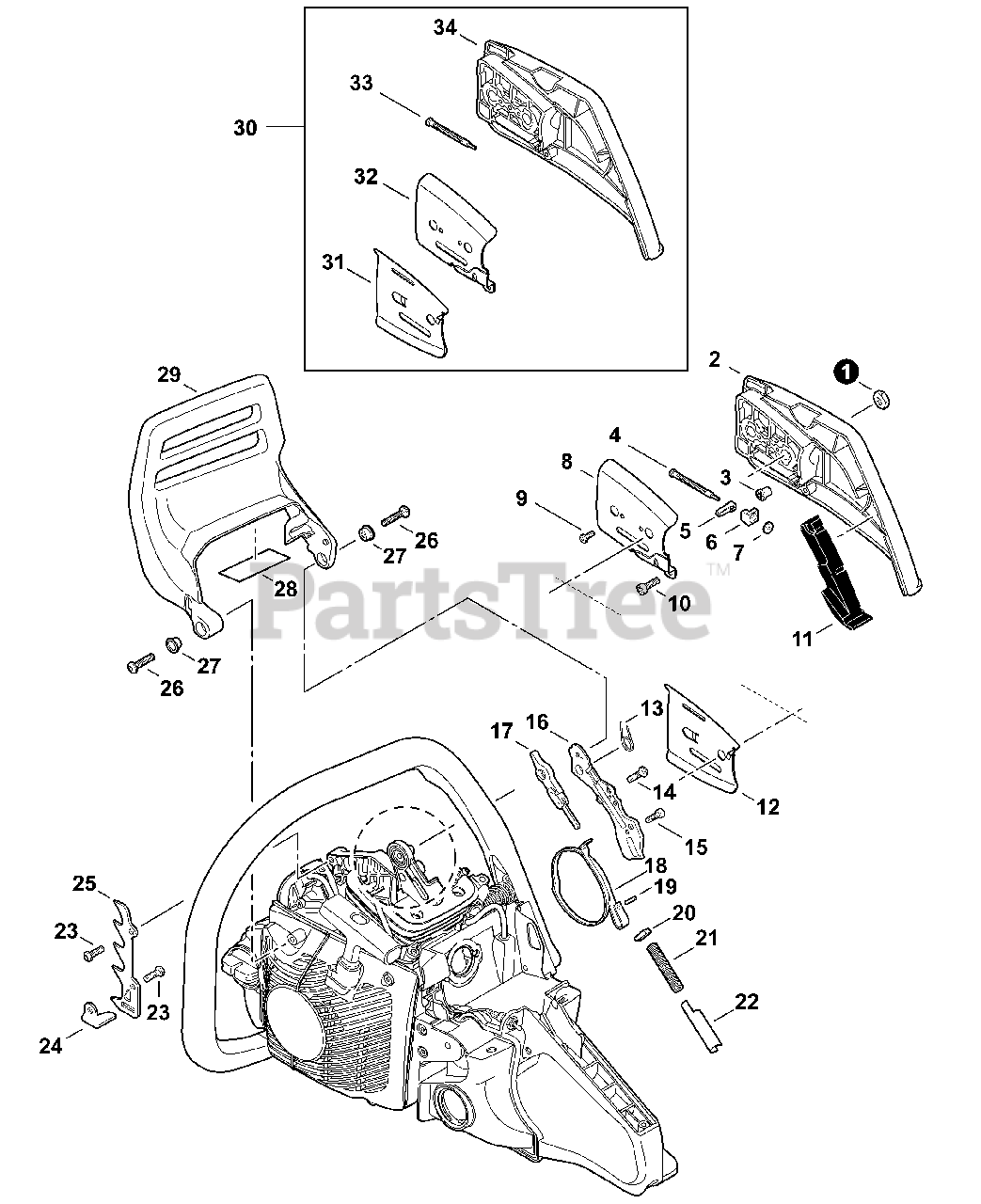

Chain Brake S/N: C22413001001 - C22413001550 Parts Diagram

  • Title

1

Echo V265000250

NUT 8

$0.99

$

In Stock, Qty 20+

0

2

Echo C300000412

GUARD, SPROCKET
(Superseded to P021045390)

$55.99

$

In Stock, only 1 left!

0

3

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

4

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

0

5

Echo C309000160

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 14

0

6

Echo V355000800

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

7

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

8

Echo C305000100

PLATE, GUIDE - OUTER
(Superseded to C305000101)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

10

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

11

Echo C302000011

CUSHION

$11.99

$

In Stock, only 1 left!

0

12

Echo C305000110

PLATE, GUIDE - INNER
(Superseded to C305000111)

$14.99

$

In Stock, only 1 left!

0

13

Echo V452000400

SPRING, TORSION

$3.49

$

In Stock, only 1 left!

0

14

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

16

Echo C345000283

COVER, BRAKE

$8.49

$

In Stock, only 2 left!

0

17

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$16.99

$

Usually ships in 2-4 days

0

18

Echo C328000121

BAND, BRAKE

$14.99

$

In Stock, only 1 left!

0

19

Echo 9305030080

PIN

$0.99

$

Usually ships in 2-4 days

0

20

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

21

Echo V450000740

SPRING, COMPRESSION 12×70.5

$14.99

$

Usually ships in 2-4 days

0

22

Echo C603000220

PLATE, SIDE

$3.99

$

Usually ships in 2-4 days

0

23

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

24

Echo C310000010

CHAIN CATCHER

$3.99

$

In Stock, only 2 left!

0

25

Echo C304000260

SPIKE, BUMPER

$20.99

$

Usually ships in 2-4 days

0

26

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

27

Echo V356000440

COLLAR 11.2×16.2×T0.6

$3.49

$

In Stock, only 3 left!

0

28

Echo V341000131

SHIELD, HEAT 75×27×0.15

$2.99

$

In Stock, Qty 6

0

29

Echo C320000182

LEVER, BRAKE

$30.99

$

In Stock, only 3 left!

0

30

Echo P021045470

GUARD KIT, SPROCKET

Note: Includes Items 32-34

$55.99

$

In Stock, only 1 left!

0

31

Echo C305000111

PLATE, GUIDE - INNER

$14.99

$

In Stock, only 1 left!

0

32

Echo C305000101

PLATE, GUIDE - OUTER

$11.99

$

Usually ships in 2-4 days

0

33

Echo V203002140

SCREW, CHAIN TENSION 63 MM

$5.99

$

In Stock, Qty 8

0

34

Echo C300000413

GUARD, SPROCKET

$54.99

$

In Stock, only 1 left!

0
