CS-600 P - Echo Chainsaw (SN: C03603001001 - C03603999999) Engine, Crankcase Parts Diagram

Chainsaw

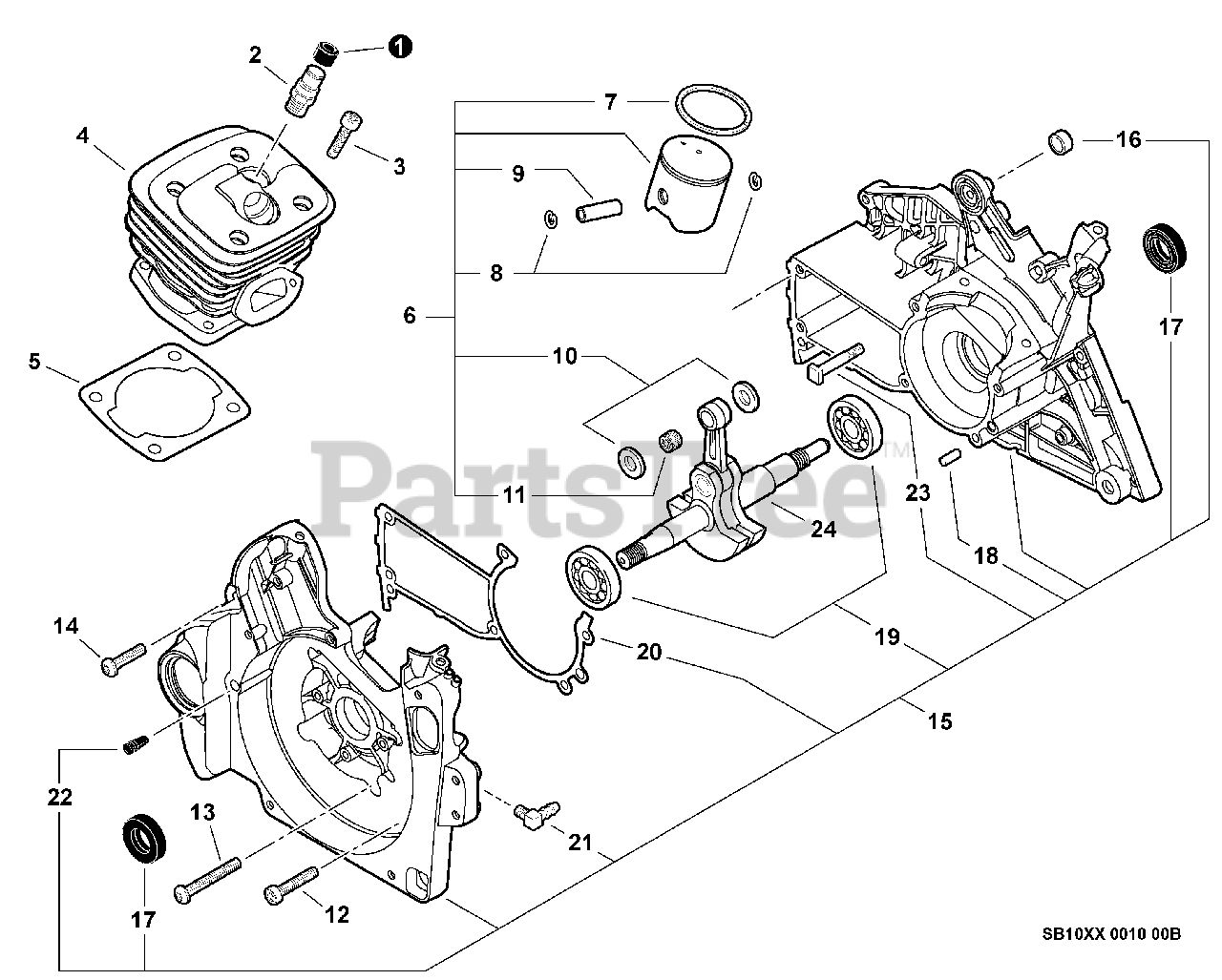

Engine, Crankcase Parts Diagram

  • Title

1

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

2

Echo A014000040

DECOMPRESSION ASSY
(Superseded to A014000110)

$46.99

$

In Stock, only 1 left!

0

3

Echo V805000220

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0

4

Echo A130000910

CYLINDER
(Superseded to A130000911)

$221.99

$

Usually ships in 2-4 days

0

5

Echo V100000270

GASKET, CYLINDER

$3.49

$

In Stock, Qty 7

0

6

Echo P021015190

PISTON KIT

$80.99

$

Usually ships in 2-4 days

0

7

Echo A101000210

RING, PISTON

Note: INCLUDES ITEMS 7-11

$8.49

$

In Stock, only 2 left!

0

8

Echo V580000030

RING, RETAINING - 1

$0.99

$

Usually ships in 2-4 days

0

9

Echo V609000010

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

10

Echo V308000040

WASHER, THRUST

$3.49

$

In Stock, only 1 left!

0

11

Echo V556000000

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

12

Echo V805000170

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo V805000020

SCREW - 5X35 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

14

Echo V805000010

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

15

Echo P021015132

CRANKCASE KIT
(Superseded to P021043800)

Note: Includes ITEMS 16-23

$119.99

$

Usually ships in 2-4 days

0

16

Echo V356000470

SPACER

$6.49

$

In Stock, only 1 left!

0

17

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$5.49

$

In Stock, Qty 6

0

18

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

19

Echo V592000000

BEARING, BALL

$22.99

$

Usually ships in 2-4 days

0

20

Echo V102000060

GASKET, CRANKCASE

$4.99

$

In Stock, Qty 8

0

21

Echo 43723914730

FITTING, GREASE

$7.99

$

Usually ships in 2-4 days

0

22

Echo 43611413930

VENT, TANK

$6.49

$

Usually ships in 2-4 days

0

23

Echo V205000400

STUD, GUIDE BAR
(Superseded to V205000401)

$2.99

$

In Stock, only 2 left!

0

24

Echo A011000540

CRANKSHAFT ASSY
(Superseded to A011001270)

$237.99

$

Usually ships in 2-4 days

0
