CS-600 P - Echo Chainsaw (SN: C03603001001 - C03603999999) Carburetor Parts Diagram

Chainsaw

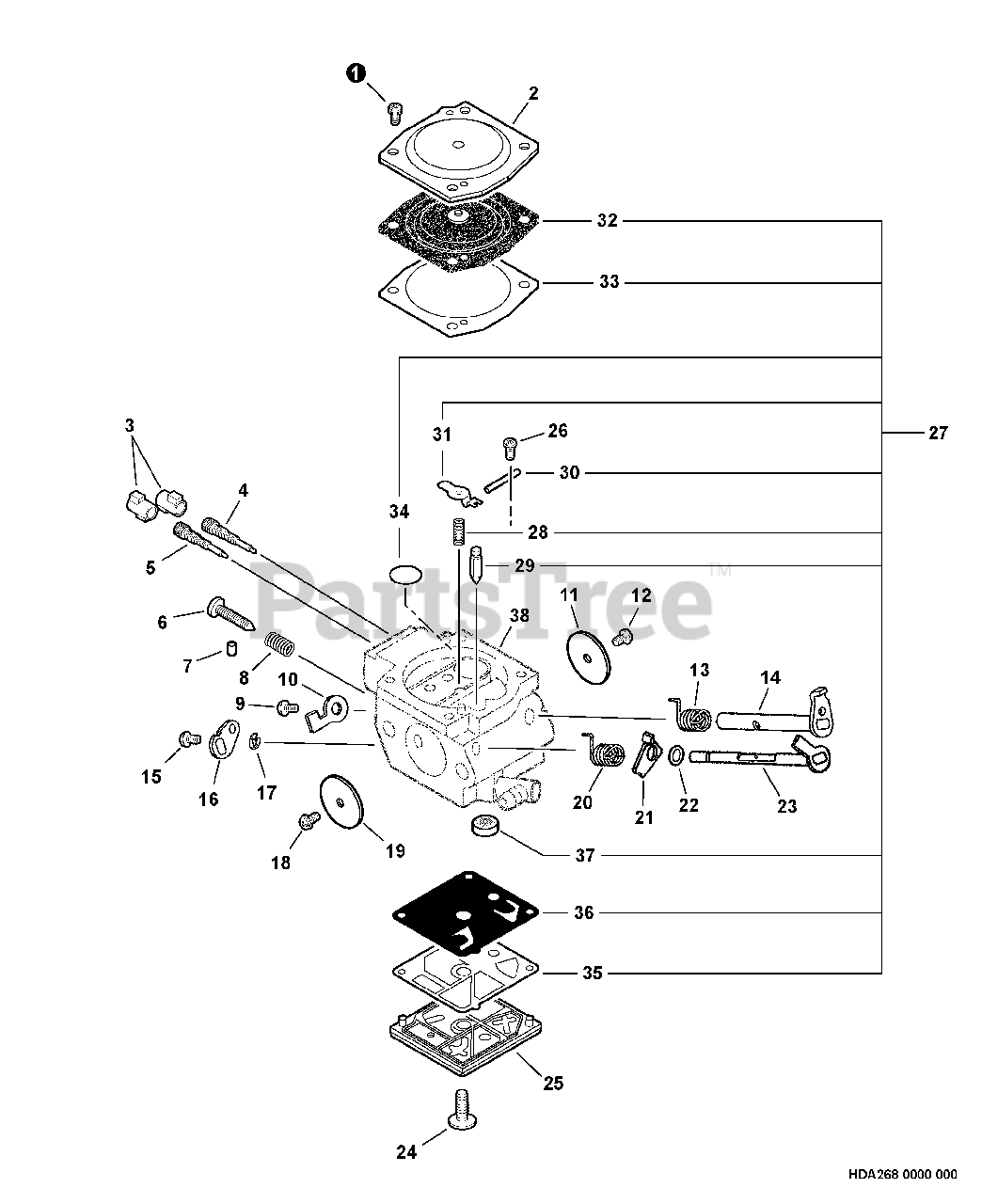

Carburetor Parts Diagram

  • Title

Echo A021001660

CARBURETOR HDA-268
(Superseded to A021001661)

Note: Includes ITEMS 1-37

$147.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

4

Echo 12311802261

NEEDLE - MIXTURE

$3.99

$

In Stock, Qty 11

0

5

Echo 12312032631

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 3 left!

0

6

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

$4.99

$

Usually ships in 2-4 days

0

8

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

$1.49

$

In Stock, Qty 13

0

10

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

12

$0.99

$

Usually ships in 2-4 days

0

13

Echo P003000560

SPRING, THROTTLE RETURN

$0.99

$

Usually ships in 2-4 days

0

14

Echo P003002280

SHAFT, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

15

$1.49

$

In Stock, Qty 13

0

16

Echo P003002300

LEVER, CHOKE

$11.99

$

Usually ships in 2-4 days

0

17

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

18

$1.49

$

In Stock, Qty 13

0

19

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

20

Echo P003000610

SPRING, CHOKE RETURN

$1.49

$

Usually ships in 2-4 days

0

21

Echo P003000620

LEVER, FAST IDLE

$1.49

$

Usually ships in 2-4 days

0

22

$0.99

$

In Stock, only 1 left!

0

23

Echo P003002290

SHAFT, CHOKE

$16.99

$

Usually ships in 2-4 days

0

24

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

25

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

26

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

27

Echo P003001160

REPAIR KIT
(Superseded to P033000000)

Note: Includes ITEMS 28-37

$13.99

$

Usually ships in 2-4 days

0

28

------------------

SPRING, METERING LEVER

$

$

Not available

29

------------------

VALVE, INLET NEEDLE

$

$

Not available

30

------------------

PIN, METERING LEVER

$

$

Not available

31

------------------

LEVER, METERING

$

$

Not available

32

------------------

DIAPHRAGM, METERING

$

$

Not available

33

------------------

GASKET, METERING

$

$

Not available

34

------------------

PLUG, WELCH

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

------------------

DIAPHRAGM, PUMP

$

$

Not available

37

------------------

STRAINER

$

$

Not available

38

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
