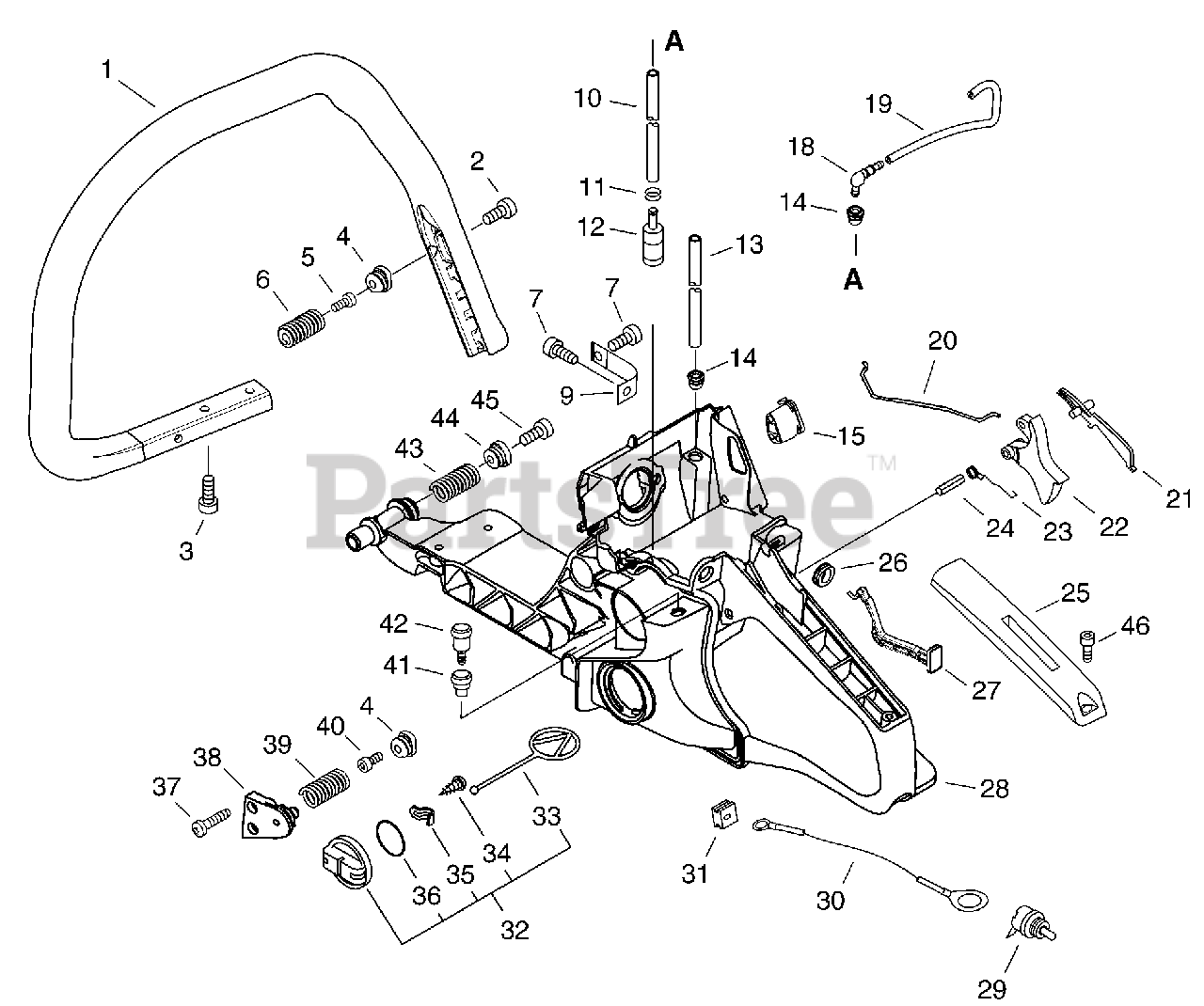

CS-600 - Echo Chainsaw (SN: C24526001001 - C24526999999) Handle, Throttle Control, Fuel System Parts Diagram

Chainsaw

Handle, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo C400000550

HANDLE, FRONT
(Superseded to C400000551)

$58.99

$

In Stock, only 3 left!

0

2

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

3

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

4

Echo V456000080

HOLDER, SPRING 14.4

$2.99

$

In Stock, only 3 left!

0

5

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

6

Echo V450000730

SPRING, COMPRESSION 17×38.4×2.6

$9.49

$

In Stock, only 1 left!

0

7

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

9

Echo C617000361

STRAP, SAFETY
(Superseded to C617000362)

$2.99

$

Usually ships in 2-4 days

0

10

Echo V471000600

PIPE, FUEL 3×5×120 BLACK
(Superseded to V471000601)

$0.99

$

In Stock, only 2 left!

0

11

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

12

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

13

Echo 13011030830

PIPE, IMPULSE 3×6(8)×160
(Superseded to 13011030831)

$2.99

$

In Stock, only 2 left!

0

14

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

15

Echo V131000020

GROMMET, NEEDLE

$5.49

$

In Stock, only 1 left!

0

18

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 15

0

19

Echo 13011014530

PIPE, FUEL 3×6×135L

$2.99

$

In Stock, only 1 left!

0

20

Echo C454000170

ROD, THROTTLE

$7.99

$

In Stock, only 1 left!

0

21

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$4.99

$

In Stock, only 1 left!

0

22

Echo C450000360

TRIGGER, THROTTLE

$4.49

$

In Stock, only 1 left!

0

23

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 18

0

24

Echo 90034540025

PIN, SPRING 4×25 SUS

$1.99

$

In Stock, only 4 left!

0

25

Echo C411000001

COVER, HANDLE

$8.49

$

In Stock, only 2 left!

0

26

Echo V130000030

GROMMET, CHOKE

$1.99

$

In Stock, only 4 left!

0

27

Echo A241000170

ROD, CHOKE
(Superseded to A241000171)

$10.99

$

In Stock, only 1 left!

0

28

Echo C410000467

HANDLE, REAR
(Superseded to C410000468)

$109.99

$

In Stock, only 1 left!

0

29

Echo A440001190

SWITCH, ON-OFF

$12.99

$

In Stock, only 1 left!

0

30

Echo V485001101

LEAD - GROUND L= 170

$3.99

$

Usually ships in 2-4 days

0

31

Echo 15011404920

GROMMET, LEAD

$1.49

$

In Stock, only 1 left!

0

32

Echo P021016041

CAP ASSY, FUEL

Note: Includes Items 33-36

$14.99

$

Usually ships in 2-4 days

0

33

Echo 13105119830

CONNECTOR, CAP L= 60mm
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

34

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

35

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

36

Echo 90072020029

O-RING 29

$3.49

$

Usually ships in 2-4 days

0

37

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

38

Echo V456000090

HOLDER, SPRING

$4.49

$

In Stock, only 1 left!

0

39

Echo V450000760

SPRING, COMPRESSION 17×36.7×2.6

$7.99

$

Usually ships in 2-4 days

0

40

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, Qty 6

0

41

Echo A359000000

GROMMET, VENT
(Superseded to A359000001)

$7.49

$

In Stock, only 1 left!

0

42

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

43

Echo V450000770

SPRING, COMPRESSION 20×40×3.3
(Superseded to V450000771)

$9.49

$

Usually ships in 2-4 days

0

44

Echo V456000101

HOLDER, SPRING 17

$2.99

$

Usually ships in 2-4 days

0

45

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

46

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0
