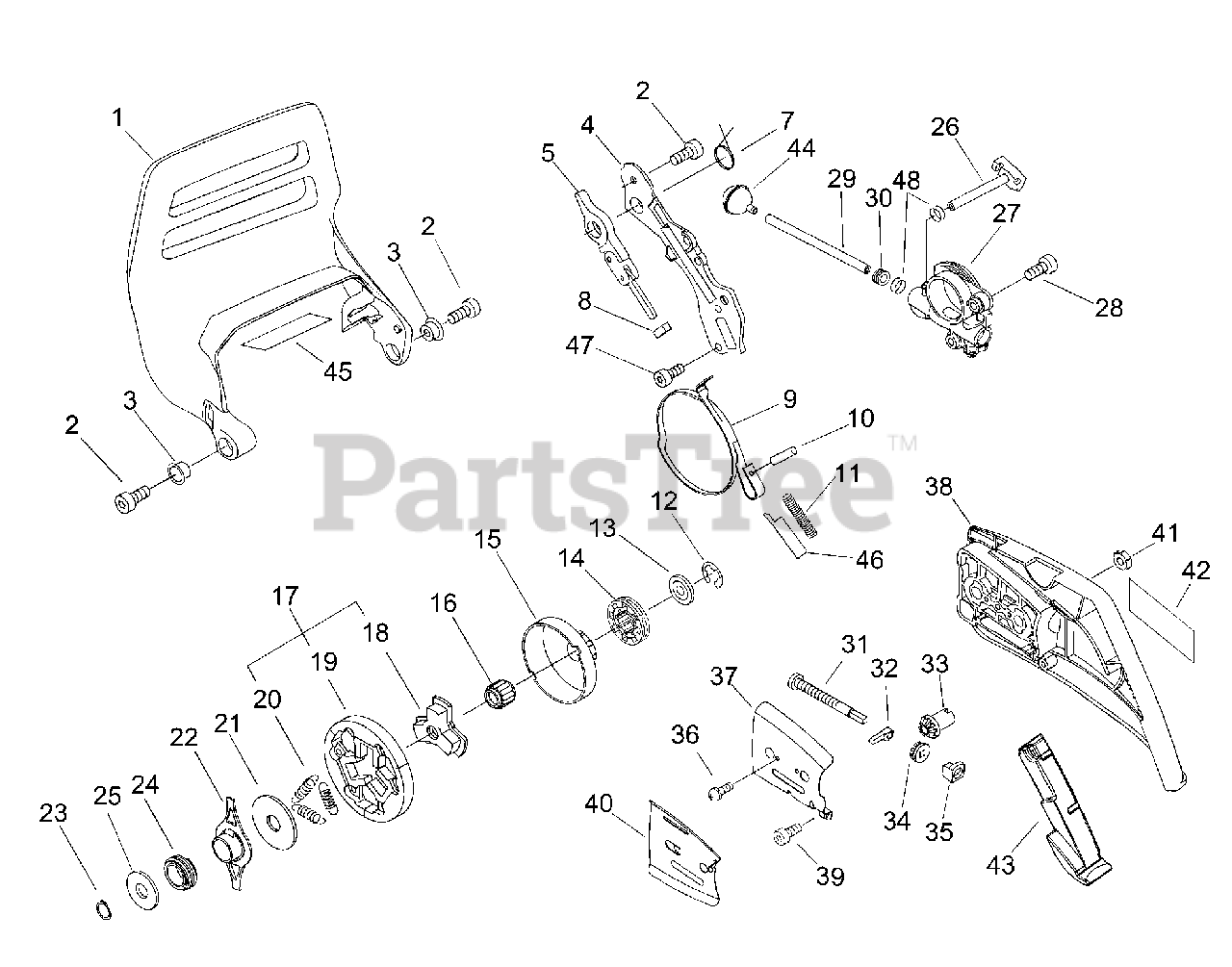

CS-600 - Echo Chainsaw (SN: C24526001001 - C24526999999) Clutch, Chain Brake, Auto Oiler Parts Diagram

Chainsaw

Clutch, Chain Brake, Auto Oiler Parts Diagram

  • Title

1

Echo C320000180

BRAKE, CHAIN
(Superseded to C320000182)

$30.99

$

In Stock, Qty 5

0

2

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000440

COLLAR 11.2×16.2×T0.6

$3.49

$

In Stock, Qty 11

0

4

Echo C345000283

COVER, BRAKE

$8.49

$

In Stock, only 2 left!

0

5

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$16.99

$

Usually ships in 2-4 days

0

7

Echo V452000400

SPRING, TORSION

$3.49

$

In Stock, only 2 left!

0

8

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

9

Echo C328000121

BAND, BRAKE

$14.99

$

Usually ships in 2-4 days

0

10

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo V450000740

SPRING, COMPRESSION 12×70.5

$14.99

$

Usually ships in 2-4 days

0

12

Echo V583000130

RING, SNAP 8 T: 1.2

$1.99

$

In Stock, Qty 18

0

13

Echo V307000180

WASHER 10×28.5×3.5(0.8)
(Superseded to V307000520)

$2.49

$

In Stock, only 4 left!

0

14

Echo 17503314731

SPROCKET, RIM 3/8"×7T

$14.99

$

In Stock, only 2 left!

0

15

Echo A556000550

DRUM, CLUTCH
(Superseded to A556001610)

$73.99

$

In Stock, only 1 left!

0

16

Echo V555000160

BEARING, NEEDLE 10
(Superseded to V555000010)

$10.99

$

In Stock, only 4 left!

0

17

Echo A056000220

CLUTCH ASSY
(Superseded to A056000221)

Note: Includes Items 18-20

$64.99

$

In Stock, Qty 7

0

18

Echo A552000110

HUB, CLUTCH

$63.99

$

Usually ships in 2-4 days

0

19

Echo P021007050

SHOE SET, CLUTCH (3PCS)
(Superseded to P021007051)

$34.99

$

Usually ships in 2-4 days

0

20

Echo V451000500

SPRING, TENSION

$3.49

$

In Stock, Qty 15

0

21

Echo A551000110

PLATE, CLUTCH

$8.49

$

In Stock, Qty 5

0

22

Echo V358000090

COLLAR 15×19×73

$13.99

$

Usually ships in 2-4 days

0

23

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

24

Echo V652000050

GEAR, WORM

$12.99

$

Usually ships in 2-4 days

0

25

Echo V311000090

WASHER 15.5×22.5×0.5

$1.99

$

In Stock, Qty 9

0

26

Echo V470000830

PIPE, OIL
(Superseded to V470000831)

$9.99

$

In Stock, only 1 left!

0

27

Echo C022000051

AUTO-OILER ASSY
(Superseded to C022000052)

$62.99

$

In Stock, only 3 left!

0

28

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

29

Echo 43721030830

PIPE, FUEL 3×6×210 BLACK
(Superseded to 43721030831)

$5.99

$

In Stock, only 1 left!

0

30

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

31

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

0

32

Echo C309000160

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 5

0

33

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

34

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

35

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

36

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

37

Echo C305000100

PLATE, GUIDE - OUTER
(Superseded to C305000101)

$11.99

$

In Stock, only 1 left!

0

38

Echo C300000410

GUARD, SPROCKET
(Superseded to C300000412)

$55.99

$

In Stock, only 1 left!

0

39

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

40

Echo C305000110

PLATE, GUIDE - INNER
(Superseded to C305000111)

$14.99

$

In Stock, only 1 left!

0

41

Echo V265000110

NUT 8
(Superseded to V265000250)

$0.99

$

In Stock, Qty 16

0

42

Echo X502000340

LABEL, ECHO

$1.99

$

In Stock, Qty 12

0

43

Echo C302000010

CUSHION, CLUTCH COVER
(Superseded to C302000011)

$11.99

$

In Stock, only 1 left!

0

44

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 2 left!

0

45

Echo V341000130

SHIELD, HEAT 75×27×0.15
(Superseded to V341000131)

$2.99

$

In Stock, only 4 left!

0

46

Echo C603000220

PLATE, SIDE

$3.99

$

Usually ships in 2-4 days

0

47

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

48

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0
