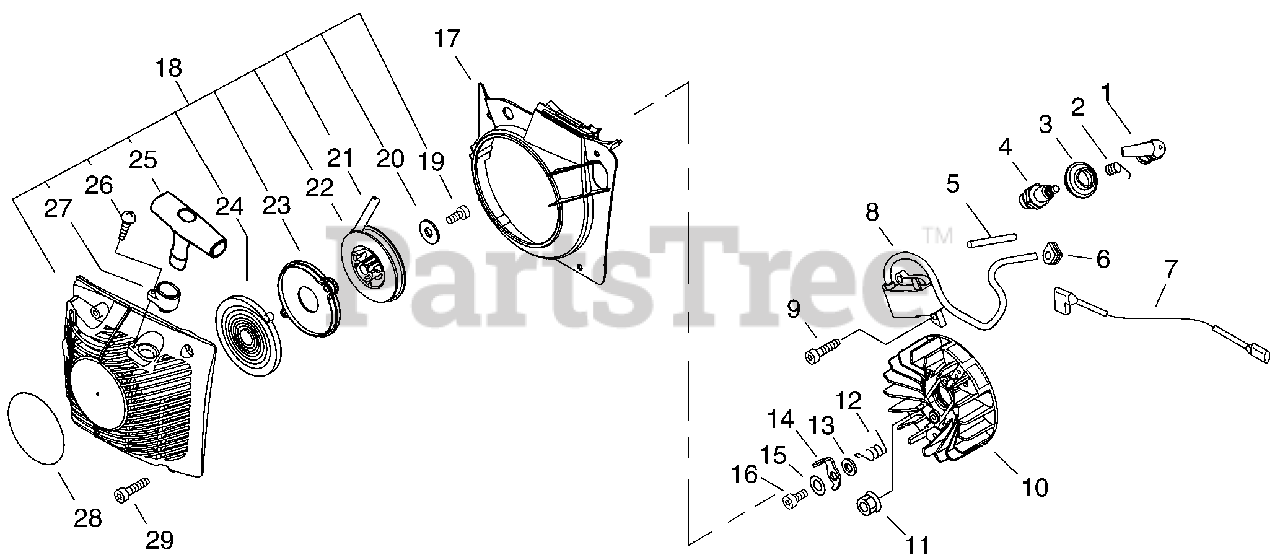

CS-600 - Echo Chainsaw (SN: C03920001001 - C03920999999) Flywheel, Ignition Coil, Recoil Starter Parts Diagram

Chainsaw

Flywheel, Ignition Coil, Recoil Starter Parts Diagram

  • Title

1

Echo A427000013

CAP, SPARK PLUG

$2.99

$

In Stock, Qty 7

0

2

Echo A426000010

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 11

0

3

Echo A429000040

SEAL, SPARK PLUG

$6.99

$

In Stock, only 2 left!

0

4

Echo 15901019830

SPARK PLUG - BPM-8Y

$3.49

$

In Stock, Qty 20+

0

5

Echo V475004130

SLEEVE, IGNITION COIL 6×7.2×70

$3.49

$

In Stock, only 3 left!

0

6

Echo V135000040

GROMMET
(Superseded to 15611004920)

$0.99

$

In Stock, Qty 7

0

7

Echo V485001090

LEAD L= 280
(Superseded to V485001091)

$4.49

$

Usually ships in 2-4 days

0

8

Echo A411000450

COIL, IGNITION

$114.99

$

In Stock, only 1 left!

0

9

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo A409000360

FLYWHEEL

$120.99

$

Usually ships in 2-4 days

0

11

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 3 left!

0

12

Echo 17723435430

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

13

Echo 17724704630

SPACER 5.2×8×2.1

$1.99

$

In Stock, Qty 9

0

14

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, only 2 left!

0

15

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo V835000000

BOLT, TORX 5×16

$1.99

$

In Stock, only 4 left!

0

17

Echo A172000842

COVER, FAN
(Superseded to P200001010)

$104.99

$

Usually ships in 2-4 days

0

18

Echo P021015160

STARTER ASSY, RECOIL
(Superseded to P021015163)

Note: Includes Items 19-27

$104.99

$

Usually ships in 2-4 days

0

19

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

20

Echo 17721402830

WASHER 5.2×16×1.0

$0.99

$

In Stock, Qty 5

0

21

Echo 17722607060

ROPE, STARTER 4.0×950

$10.99

$

In Stock, Qty 9

0

22

Echo A506000110

REEL, ROPE
(Superseded to A506000112)

$13.99

$

In Stock, only 1 left!

0

23

Echo A503000030

PLATE, STARTER
(Superseded to A503000031)

$6.49

$

Usually ships in 2-4 days

0

24

Echo 17722035430

SPRING, RECOIL

$13.99

$

Usually ships in 2-4 days

0

25

Echo A511000070

GRIP, STARTER
(Superseded to A511000072)

$8.99

$

Usually ships in 2-4 days

0

26

Echo 90029603016

SCREW, TAPPING 3×16

$0.99

$

Usually ships in 2-4 days

0

27

Echo A510000090

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

28

Echo X502000460

LABEL, ECHO

$2.49

$

In Stock, Qty 8

0

29

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
