CS-600 - Echo Chainsaw (SN: C03920001001 - C03920999999) Crankcase Parts Diagram

Chainsaw

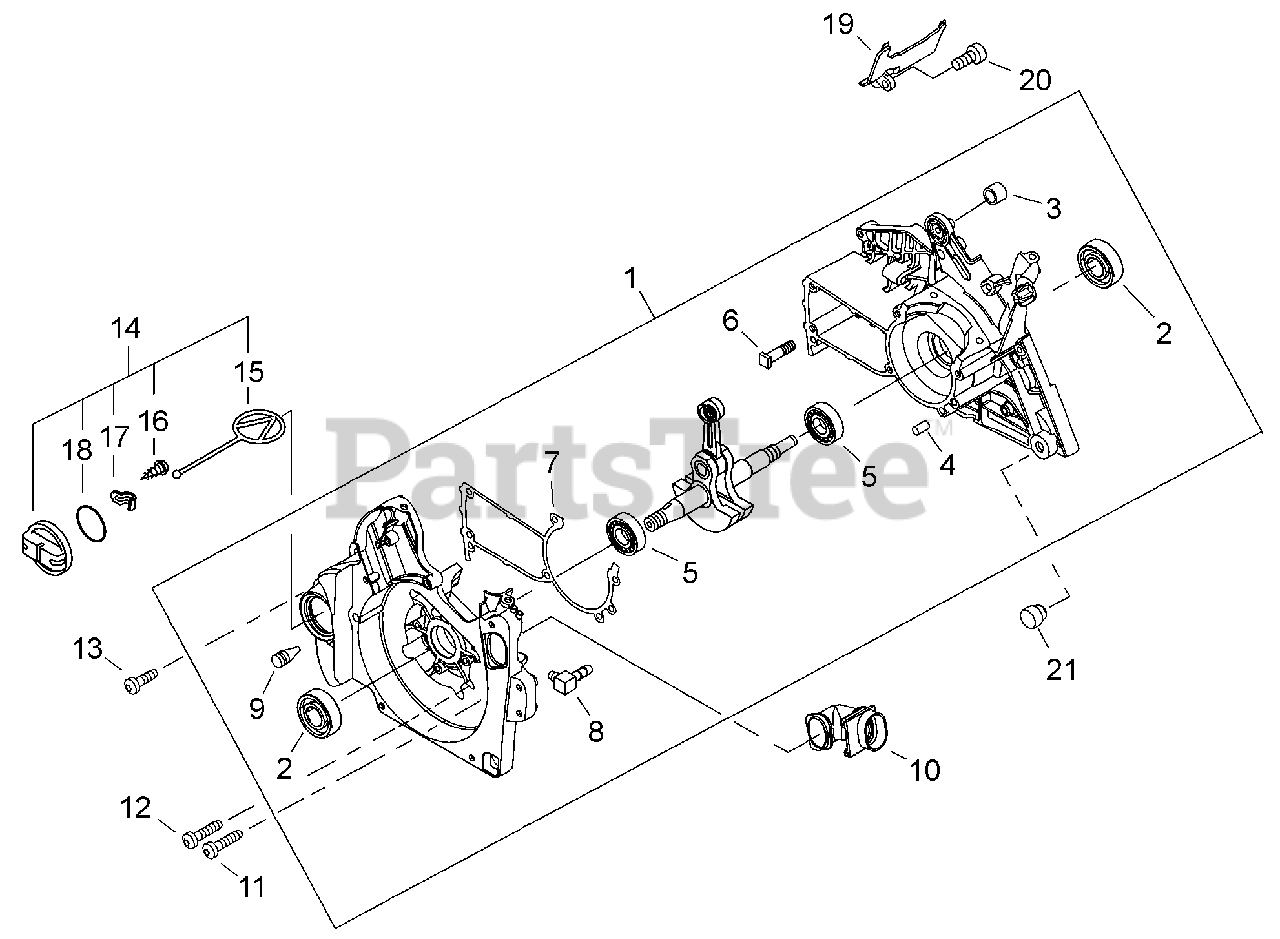

Crankcase Parts Diagram

  • Title

1

Echo P021015132

CRANKCASE KIT
(Superseded to P021043800)

Note: Includes Items 2-9

$119.99

$

Usually ships in 2-4 days

0

2

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$5.49

$

In Stock, only 4 left!

0

3

Echo V356000470

SPACER 12×10×T: 1.0

$6.49

$

In Stock, only 1 left!

0

4

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

5

Echo V592000000

BEARING, BALL 6202

$22.99

$

Usually ships in 2-4 days

0

6

Echo V205000400

BOLT, STUD M8×1.25×34.5
(Superseded to V205000401)

$2.99

$

In Stock, only 2 left!

0

7

Echo V102000060

GASKET, CRANKCASE

$4.99

$

In Stock, Qty 7

0

8

Echo 43723914730

CONNECTOR, PIPE

$7.99

$

Usually ships in 2-4 days

0

9

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

10

Echo A239000060

PIPE, AIR INTAKE

$13.99

$

Usually ships in 2-4 days

0

11

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

12

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

13

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

14

Echo P021016030

CAP ASSY, OIL
(Superseded to P021016031)

Note: Includes Items 15-18

$12.99

$

In Stock, only 1 left!

0

15

Echo 13105119830

CONNECTOR, CAP L= 60mm
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

16

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

17

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

18

Echo 90072000028

O-RING 28

$3.49

$

Usually ships in 2-4 days

0

19

Echo E106000020

GUIDE, AIR

$3.49

$

Usually ships in 2-4 days

0

20

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

21

Echo V420001790

CUSHION

$7.49

$

In Stock, only 1 left!

0
