CS-600 - Echo Chainsaw (SN: C03920001001 - C03920999999) Air Filter, Muffler, Engine Cover Parts Diagram

Chainsaw

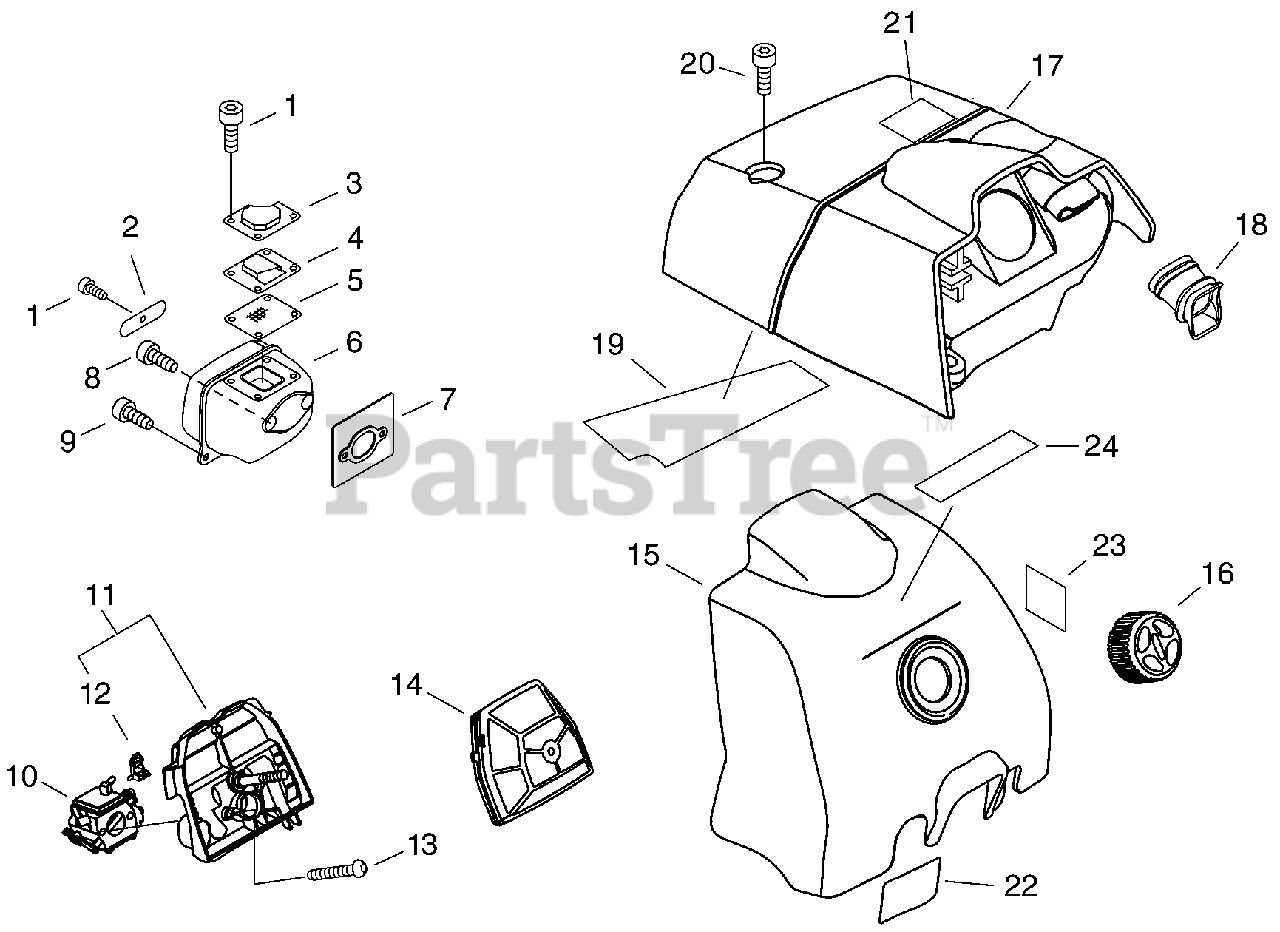

Air Filter, Muffler, Engine Cover Parts Diagram

  • Title
1

Echo V804000030

BOLT, TORX 4×8

$0.99

$

In Stock, Qty 16

0

2

Echo A301000030

PLATE, MUFFLER

$2.49

$

In Stock, only 2 left!

0

3

Echo A313001050

GUIDE, EXHAUST
(Superseded to A031000030)

$9.99

$

Usually ships in 2-4 days

0

4

Echo A313001041

GUIDE, EXHAUST

$9.99

$

In Stock, only 1 left!

0

5

Echo A310000100

SCREEN, SPARK ARRESTER

$7.99

$

Usually ships in 2-4 days

0

6

Echo A300000770

MUFFLER
(Superseded to A300001570)

$75.99

$

Usually ships in 2-4 days

0

7

Echo V104000910

GASKET, EXHAUST
(Superseded to V104002150)

$3.99

$

Usually ships in 2-4 days

0

8

Echo V805000210

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

9

Echo V855000000

BOLT, TORX 5×20

$1.99

$

In Stock, only 4 left!

0

10

Echo A021001820

CARBURETOR - HDA-274
(Superseded to A021001821)

$118.99

$

Usually ships in 2-4 days

0

11

Echo P021016020

CASE ASSY, AIR FILTER
(Superseded to P021016021)

Note: Includes Item 12

$58.99

$

Usually ships in 2-4 days

0

12

Echo A219000000

SHUTTER, AIR

$2.99

$

Usually ships in 2-4 days

0

13

Echo V805000030

BOLT, TORX 5×50

$1.99

$

Usually ships in 2-4 days

0

14

Echo P021016370

FILTER ASSY, AIR
(Superseded to P021016371)

$33.99

$

In Stock, Qty 8

0

15

Echo A232000471

COVER, AIR FILTER
(Superseded to A232000472)

$11.99

$

In Stock, only 3 left!

0

16

Echo A235000190

KNOB, AIR FILTER COVER
(Superseded to A235000200)

$6.49

$

In Stock, only 2 left!

0

17

Echo A160001080

COVER, ENGINE
(Superseded to A160001081)

$17.99

$

Usually ships in 2-4 days

0

18

Echo A239000070

PIPE, INTAKE

$5.99

$

In Stock, only 1 left!

0

19

Echo V341000140

SHIELD, HEAT 75×32×0.15

$2.99

$

In Stock, only 1 left!

0

20

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

21

Echo 89034539230

LABEL, CAUTION
(Superseded to 89034539231)

$2.99

$

Usually ships in 2-4 days

0

22

Echo 89015739130

LABEL, STOP
(Superseded to 89015739131)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 89063138130

LABEL, CAUTION
(Superseded to 89063138131)

$2.49

$

Usually ships in 2-4 days

0

24

Echo X503009510

LABEL, CS-600

$2.49

$

Usually ships in 2-4 days

0
