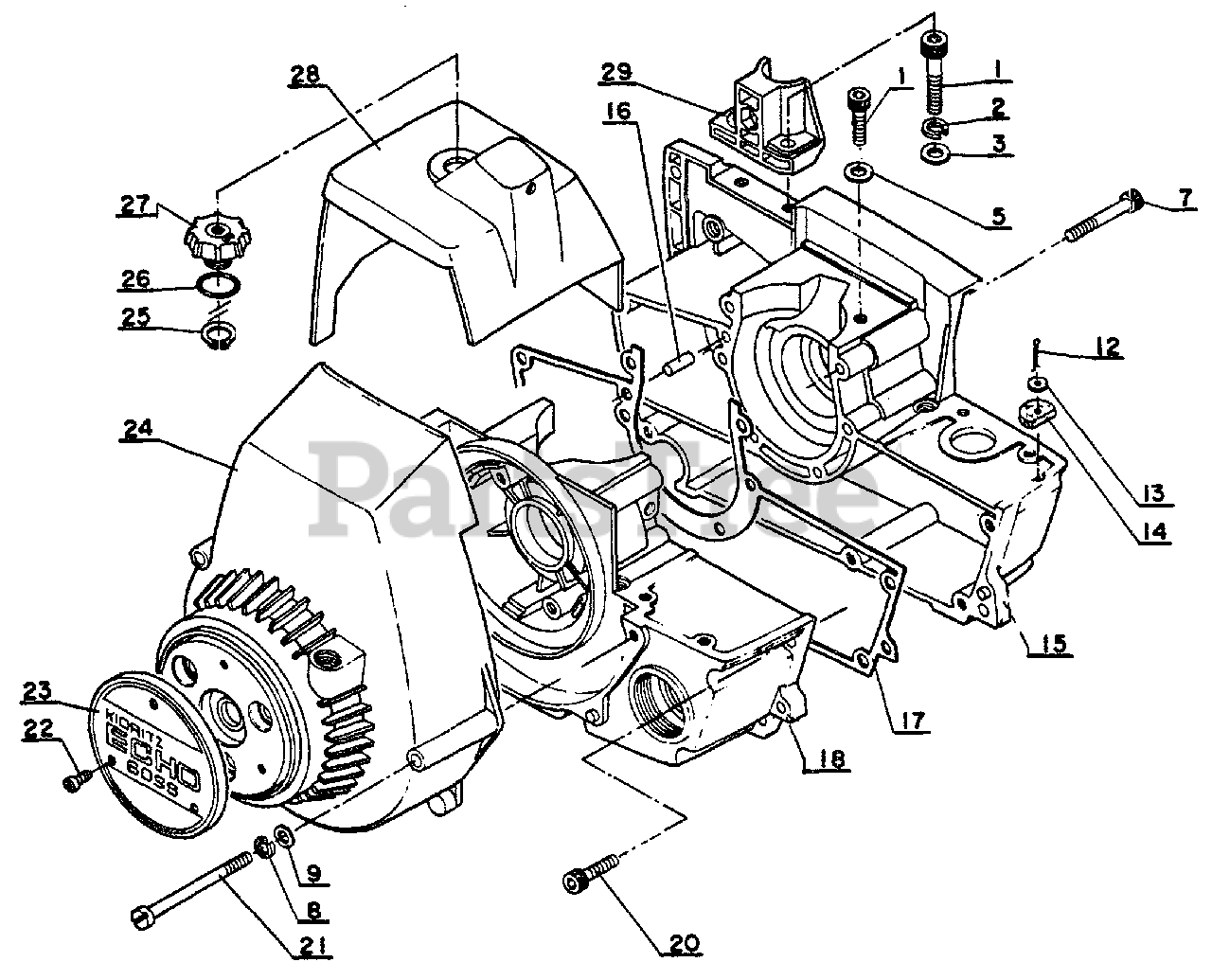

CS-60 S - Echo Chainsaw (SN: 059501 - 999999) Crankcase, Cover Parts Diagram

Chainsaw

Crankcase, Cover Parts Diagram

  • Title

1

Echo 90010506025

SCREW - 6X25

$1.49

$

In Stock, only 4 left!

0

2

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

5

Echo 43301500230

WASHER

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

8

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

9

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90030020015

PIN, SPLIT -- 2X15
(Superseded to Discontinued)

$

$

Not available

13

Echo 90060000002

WASHER - 2

$0.99

$

Usually ships in 2-4 days

0

14

Echo 13141000330

SEAL, FELT
(Superseded to Discontinued)

$

$

Not available

15

Echo 10020000332

CRANKCASE
(Superseded to 10020400330)

Note: Includes ITEM 18

$393.99

$

Usually ships in 2-4 days

0

16

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

17

Echo 10024200331

GASKET, CRANKCASE
(Superseded to 10024200332)

$

$

Not available

20

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

21

Echo 13002100331

BOLT

$1.49

$

Usually ships in 2-4 days

0

22

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

23

Echo 89011200331

Nameplate

$4.99

$

Usually ships in 2-4 days

0

24

Echo 10151100333

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90070100011

RING, RETAINING - 11

$0.99

$

In Stock, Qty 7

0

26

Echo 90072000014

O-RING - 14

$1.49

$

Usually ships in 2-4 days

0

27

Echo 13040600330

WINGNUT

$5.99

$

Usually ships in 2-4 days

0

28

Echo 10151400331

COVER, ENGINE

$39.99

$

Usually ships in 2-4 days

0

29

Echo 35121700331

BRACKET, HANDLE

$9.49

$

Usually ships in 2-4 days

0
