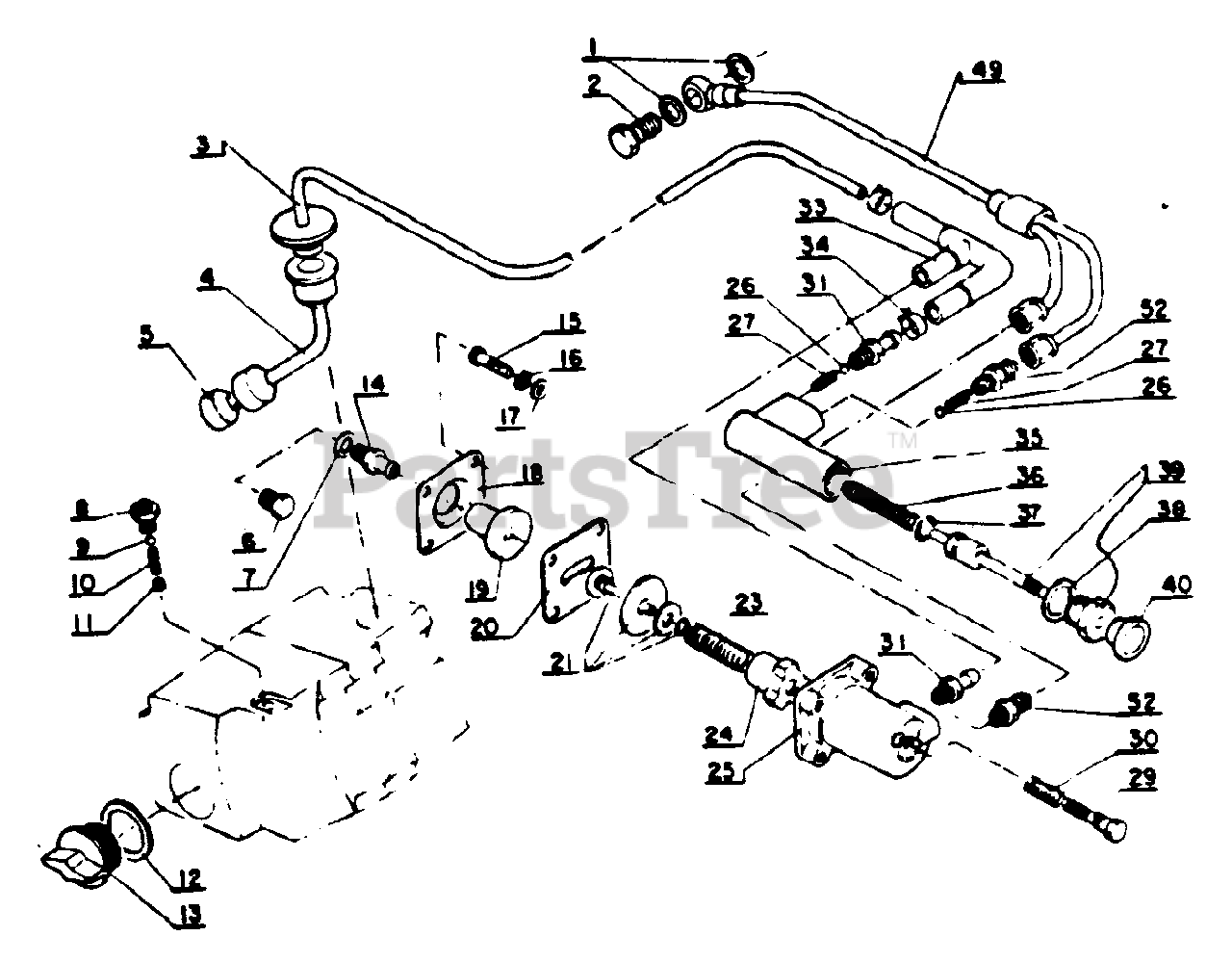

CS-60 S - Echo Chainsaw (SN: 001001 - 059500) Oiler, Auto Parts Diagram

Chainsaw

Oiler, Auto Parts Diagram

  • Title

1

Echo 43221900330

O-RING

$

$

Currently unavailable

2

Echo 43722000330

BOLT

$7.49

$

Usually ships in 2-4 days

0

3

Echo 43720500330

PIPE - OIL

$10.99

$

Usually ships in 2-4 days

0

4

Echo 43731000331

PIPE, OIL - INNER

$15.99

$

Usually ships in 2-4 days

0

5

Echo 43621000332

FILTER, OIL

$4.99

$

Usually ships in 2-4 days

0

6

Echo 10041100330

PLUG

$2.99

$

Usually ships in 2-4 days

0

7

Echo 13131000230

GASKET

$0.99

$

In Stock, only 2 left!

0

8

Echo 43611000230

Nut, air breed
(Superseded to 43610000230)

$6.49

$

In Stock, only 1 left!

0

9

Echo 43611100230

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

10

Echo 43611200230

SPRING, AIR BLEED

$0.99

$

Usually ships in 2-4 days

0

11

Echo 43611300230

Plug, air breed
(Superseded to Discontinued)

$

$

Not available

12

Echo 10041000330

ADAPTOR

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43601300230

OIL TANK CAP

$

$

Currently unavailable

14

Echo 10041000330

ADAPTOR

$3.99

$

Usually ships in 2-4 days

0

15

Echo 90001204015

SCREW

Note: Used on CS-60S (JIS)

$

$

Currently unavailable

15

Echo 90021004015

SCREW - 4X15

Note: Used on CS-60S (ISO)

$

$

Currently unavailable

16

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

18

Echo 43702700330

RETAINER

$2.49

$

Usually ships in 2-4 days

0

19

Echo 43702600330

CONNECTOR

$2.49

$

Usually ships in 2-4 days

0

20

Echo 43702500330

PACKING

$0.99

$

Usually ships in 2-4 days

0

21

Echo 43700600330

PLUNGER ASSY

$21.99

$

Usually ships in 2-4 days

0

23

Echo 43701900330

SPRING, ADJUST

$2.49

$

Usually ships in 2-4 days

0

24

Echo 43701800330

CASE, SPRING
(Superseded to Discontinued)

$

$

Not available

25

Echo 43700100332

CYLINDER, OIL
(Superseded to 43700000332)

Note: Used on CS-60S (ISO)

$115.99

$

Usually ships in 2-4 days

0

26

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

27

------------------

Valve spring

Note: NOT USED ON THIS MODEL

$

$

Not available

29

Echo 43701600330

SCREW, ADJUST
(Superseded to Discontinued)

Note: Used on CS-60S (JIS)

$

$

Not available

29

Echo 43701600331

SCREW, ADJUST
(Superseded to Discontinued)

Note: Used on CS-60S (ISO)

$

$

Not available

30

Echo 43701500330

SPRING
(Superseded to Discontinued)

$

$

Not available

31

Echo 43701700330

CONNECTOR

$5.49

$

Usually ships in 2-4 days

0

32

Echo 43720600330

PIPE - OIL
(Superseded to Discontinued)

$

$

Not available

33

Echo 43721500330

PIPE - OIL

$11.99

$

Usually ships in 2-4 days

0

34

Echo 43722100330

CLIP
(Superseded to Discontinued)

$

$

Not available

35

Echo 43711000231

BODY, OIL PUMP
(Superseded to 43710200330)

$

$

Not available

36

Echo 43711100231

SPRING, OIL PUMP

$1.99

$

Usually ships in 2-4 days

0

37

Echo 13101300430

O-RING
(Superseded to 90072000006)

$1.49

$

In Stock, only 3 left!

0

38

Echo 43711400230

LOCKWASHER

Note: Used on CS-60S (JIS)

$0.99

$

Usually ships in 2-4 days

0

39

Echo 43710100430

PISTON, OIL PUMP
(Superseded to 43710100330)

Note: Used on CS-60S (JIS)

$12.99

$

Usually ships in 2-4 days

0

39

Echo 43710100330

PISTON, OIL PUMP

Note: Used on CS-60S (ISO)

$12.99

$

Usually ships in 2-4 days

0

40

Echo 17851200430

BUTTON, OIL PUMP

$2.99

$

Usually ships in 2-4 days

0

49

Echo 43720700331

PIPE - OIL
(Superseded to Discontinued)

Note: Used on CS-60S (ISO)

$

$

Not available

52

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

Note: Used on CS-60S (ISO)

$

$

Not available
