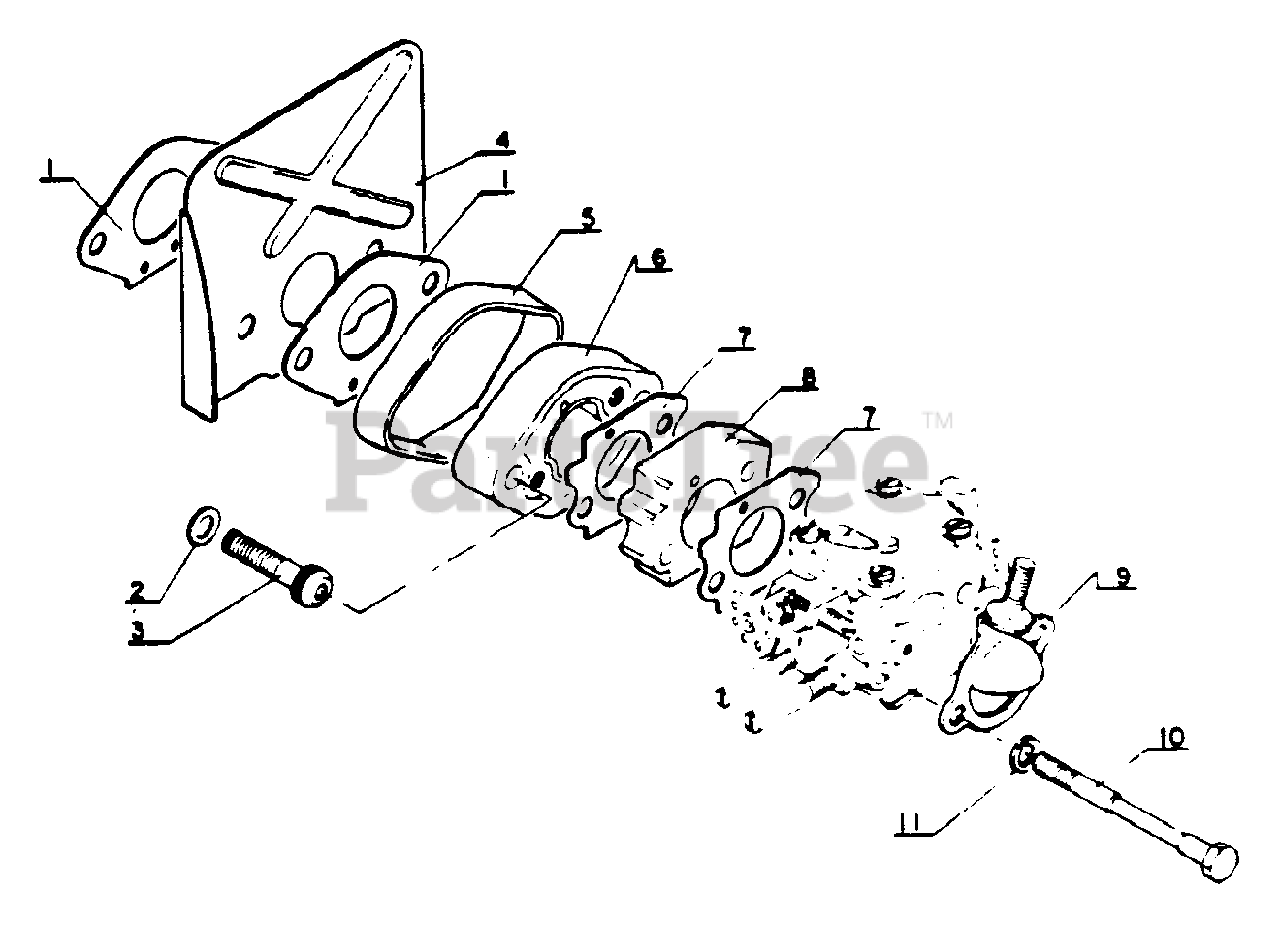

CS-60 S - Echo Chainsaw (SN: 001001 - 059500) Intake Parts Diagram

Chainsaw

Intake Parts Diagram

  • Title

1

Echo 13001000230

GASKET, INTAKE

$0.99

$

In Stock, Qty 11

0

2

Echo 43301500230

WASHER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 13001500330

BOLT - 6X28
(Superseded to Discontinued)

$

$

Not available

4

Echo 13001100230

SHIELD, INTAKE

$4.49

$

Usually ships in 2-4 days

0

5

Echo 13001200230

SEAL, DUST

$1.99

$

In Stock, only 2 left!

0

6

Echo 13000500330

CASE, CARBURETOR
(Superseded to Discontinued)

Note: Used on CS-60S (JIS)

$

$

Not available

6

Echo 13000500331

CASE, CARBURETOR

Note: Used on CS-60S (ISO)

$15.99

$

Usually ships in 2-4 days

0

7

Echo 13001600330

GASKET, INTAKE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13001700330

INSULATOR, INTAKE

$3.49

$

Usually ships in 2-4 days

0

9

Echo 13040500330

PLATE, PREVENT
(Superseded to 13040500331)

Note: Used on CS-60S (JIS)

$

$

Not available

9

Echo 13040500331

PLATE, PREVENT
(Superseded to Discontinued)

Note: Used on CS-60S (ISO)

$

$

Not available

10

Echo 13002100330

BOLT
(Superseded to Discontinued)

Note: Used on CS-60S (JIS)

$

$

Not available

10

Echo 13002100331

BOLT

Note: Used on CS-60S (ISO)

$1.49

$

Usually ships in 2-4 days

0

11

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0
