CS-590 - Echo Chainsaw (SN: C98512001001 - C98512999999) Fuel System Parts Diagram

Chainsaw

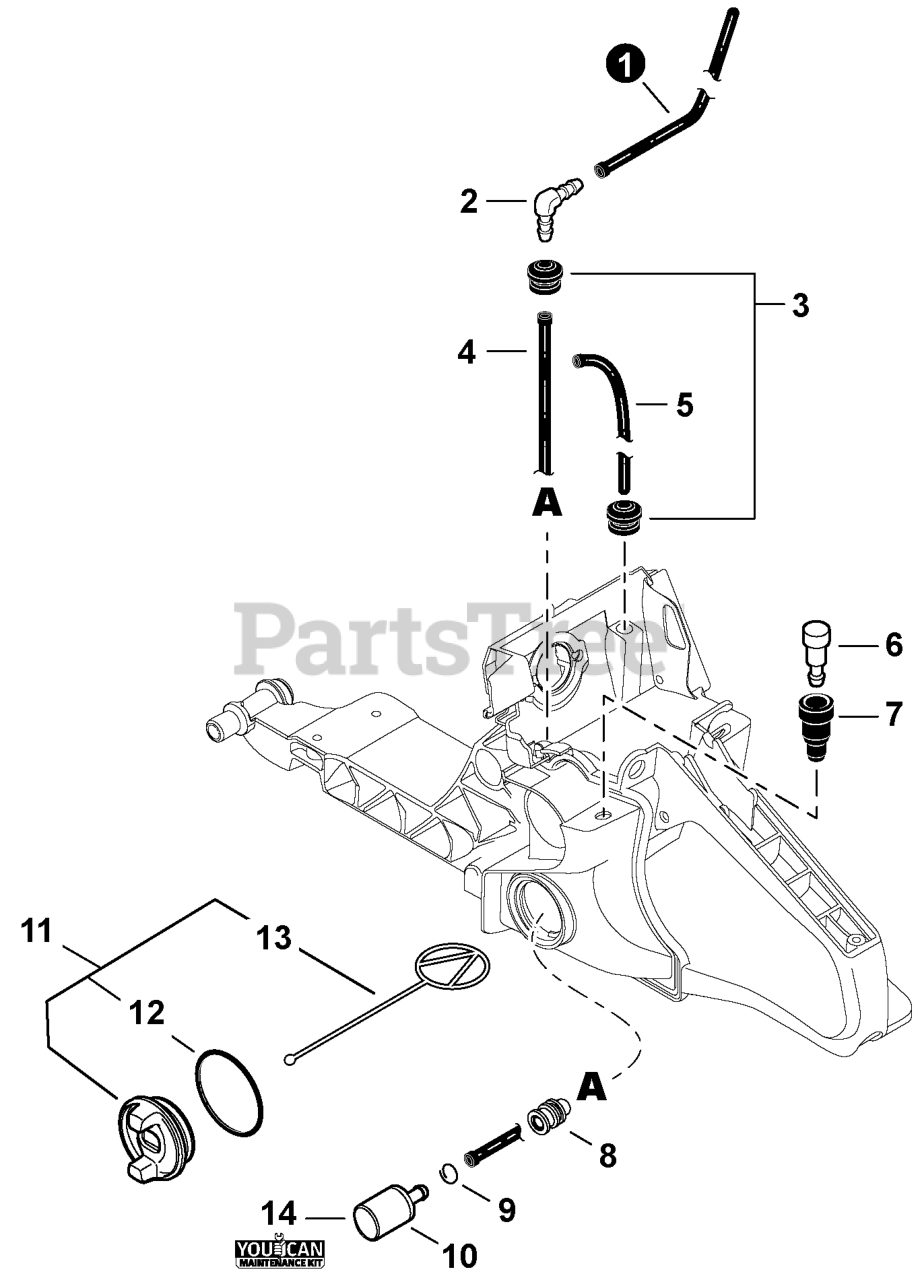

Fuel System Parts Diagram

  • Title

1

Echo V471003861

PIPE, FUEL 3x6x135

$4.99

$

In Stock, only 4 left!

0

2

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

3

Echo 13211501462

GROMMET

$1.49

$

In Stock, Qty 7

0

4

Echo V471000601

PIPE, FUEL 3x5x120 BLACK

$0.99

$

In Stock, Qty 14

0

5

Echo 13011030831

PIPE, IMPULSE 3x6(8)x160

$2.99

$

In Stock, Qty 6

0

6

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

7

Echo A359000001

GROMMET, VENT

$7.49

$

In Stock, Qty 5

0

8

Echo A413000190

BOOT

$1.99

$

In Stock, Qty 7

0

9

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

10

Echo A369000460

FILTER, FUEL

Note: Included in Tune-Up Kit

$9.49

$

In Stock, Qty 20+

0

11

Echo P100004891

CAP ASSY, FUEL

Note: Includes Items 12-13

$5.99

$

Usually ships in 2-4 days

0

12

Echo V581000600

O-RING 29

$2.49

$

In Stock, Qty 9

0

13

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

14

Echo 90167Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$43.99

$

In Stock, Qty 7

0
