CS-590 - Echo Chainsaw (SN: C69015001001 - C69015999999) Recoil Starter Parts Diagram

Chainsaw

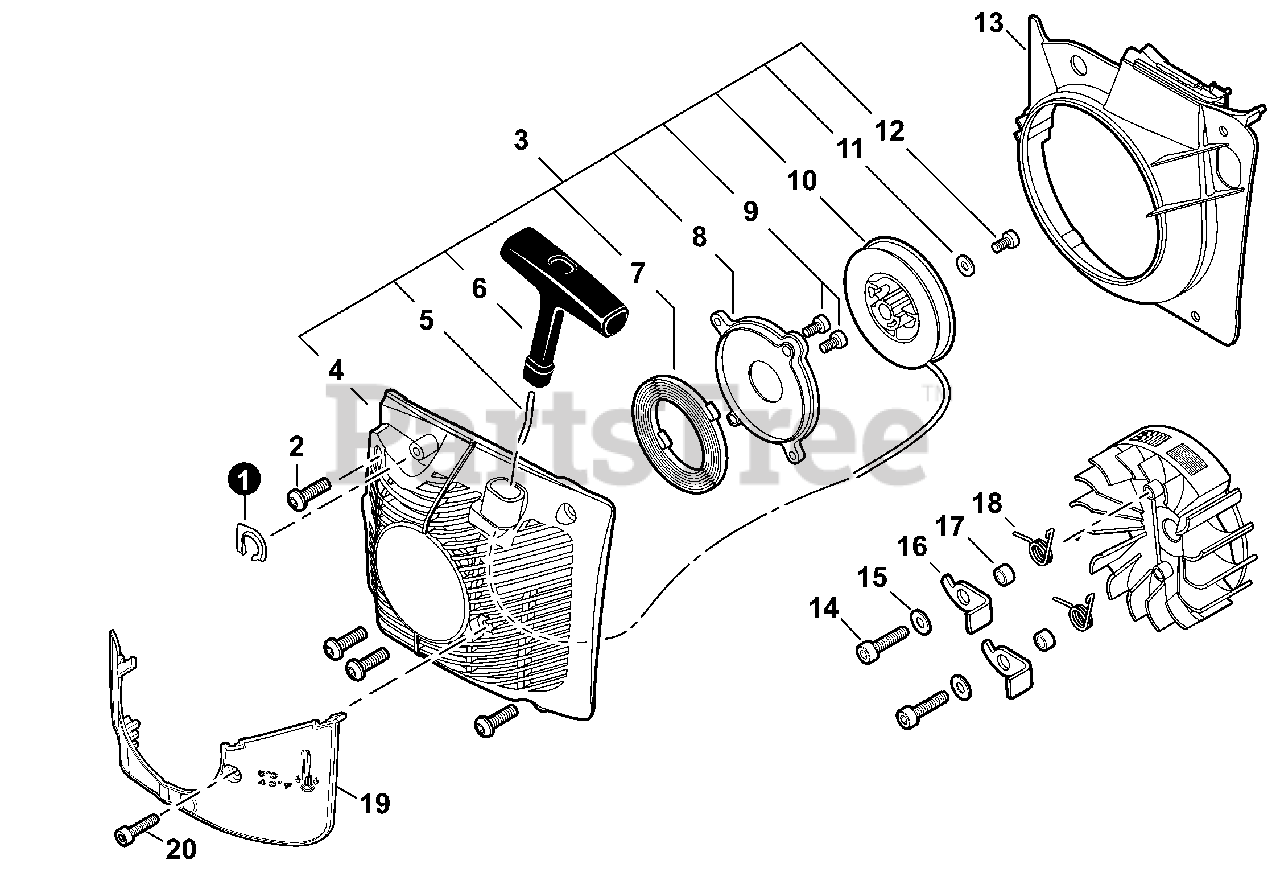

Recoil Starter Parts Diagram

  • Title

1

Echo V150003800

PLATE, EYE

$2.99

$

Usually ships in 2-4 days

0

2

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

3

Echo P021041832

STARTER ASSY, RECOIL
(Superseded to P200001010)

Note: Includes Items 4-12

$104.99

$

Usually ships in 2-4 days

0

4

Echo P021047600

CASE, STARTER
(Superseded to P200001010)

$104.99

$

Usually ships in 2-4 days

0

5

Echo A509000460

ROPE, STARTER Ø4×950

$8.49

$

In Stock, only 1 left!

0

6

Echo A511000072

GRIP, STARTER

$8.99

$

Usually ships in 2-4 days

0

7

Echo 17722035430

SPRING, RECOIL

$13.99

$

Usually ships in 2-4 days

0

8

Echo A503000032

PLATE, STARTER

$6.49

$

Usually ships in 2-4 days

0

9

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

10

Echo A506000112

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

11

Echo 17721402830

WASHER 5.2×16×1.0

$0.99

$

In Stock, Qty 5

0

12

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

13

Echo A172000842

COVER, FAN
(Superseded to P200001010)

$104.99

$

Usually ships in 2-4 days

0

14

Echo V835000000

BOLT, TORX 5×16

$1.99

$

In Stock, only 4 left!

0

15

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, only 2 left!

0

17

Echo 17724704630

SPACER 5.2×8×2.1

$1.99

$

In Stock, Qty 9

0

18

Echo 17723435430

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

19

Echo P021045730

SHIELD KIT - SNOW

$11.99

$

Usually ships in 2-4 days

0

20

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0
