CS-590 - Echo Chainsaw (SN: C25913001001 - C25913999999) Engine Parts Diagram

Chainsaw

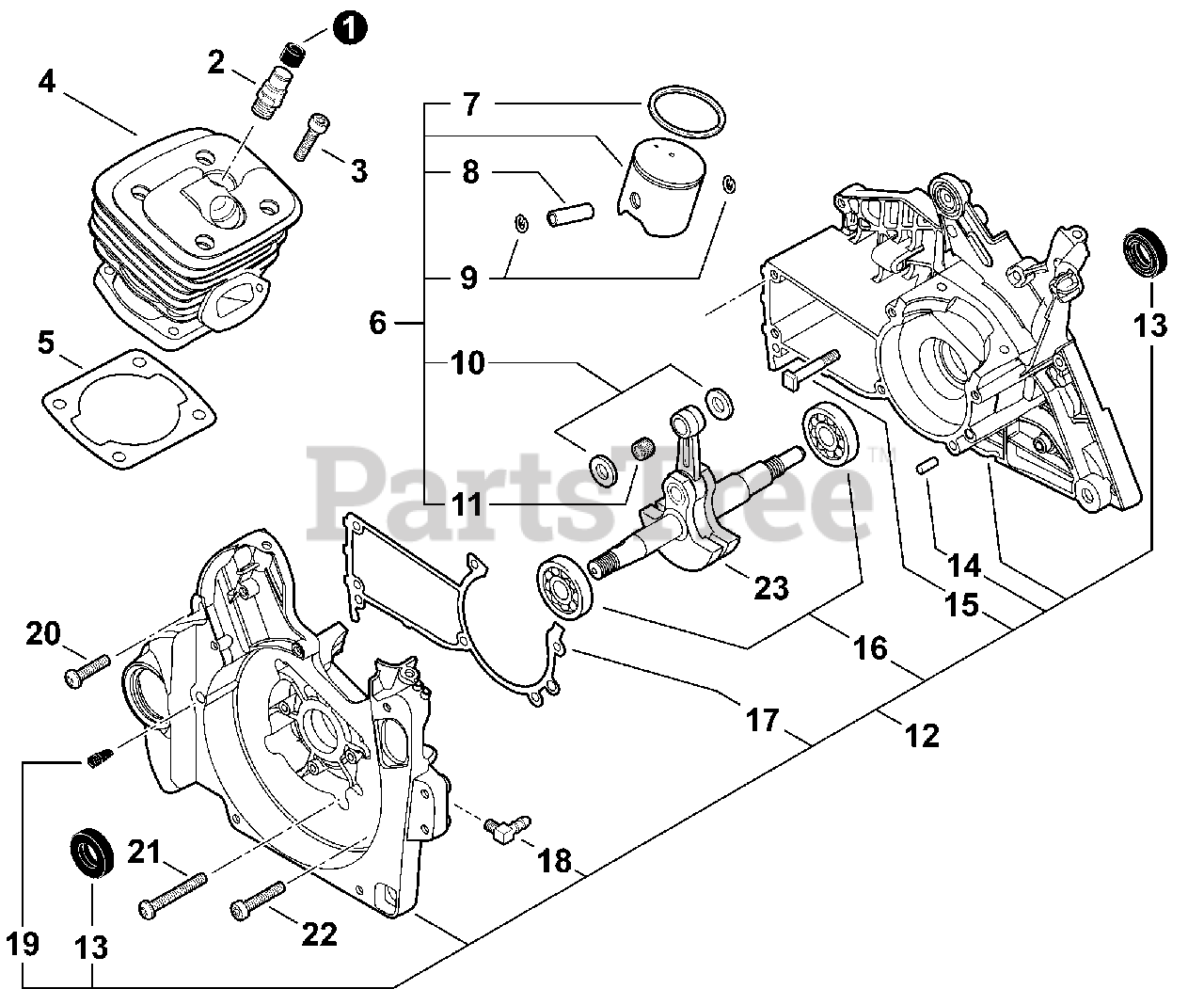

Engine Parts Diagram

  • Title

1

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

2

Echo A014000040

DECOMPRESSION ASY
(Superseded to A014000110)

$46.99

$

In Stock, only 1 left!

0

3

Echo V805000220

SCREW - 5×25

$1.49

$

In Stock, only 3 left!

0

4

Echo A130002041

CYLINDER

$163.99

$

In Stock, only 1 left!

0

5

Echo V100000270

GASKET, CYLINDER

$3.49

$

In Stock, Qty 7

0

6

Echo P021038790

PISTON KIT

Note: Includes Items 7-11

$81.99

$

In Stock, only 3 left!

0

7

Echo A101000210

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo V609000010

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

9

Echo V580000030

RING, RETAINING - 1

$0.99

$

Usually ships in 2-4 days

0

10

Echo V308000040

WASHER, THRUST - 1

$3.49

$

In Stock, only 1 left!

0

11

Echo V556000000

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

12

Echo P021043311

CRANKCASE KIT
(Superseded to P021043312)

Note: Includes Items 13-19

$119.99

$

Usually ships in 2-4 days

0

13

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$5.49

$

In Stock, Qty 7

0

14

Echo 90033050100

PIN, DOWEL

$0.99

$

Usually ships in 2-4 days

0

15

Echo V205000401

STUD, GUIDE BAR
(Superseded to 43301119831)

$2.99

$

In Stock, only 2 left!

0

16

Echo 9403646202

BEARING, BALL

$9.99

$

Usually ships in 2-4 days

0

17

Echo V102000060

GASKET, CRANKCASE

$4.99

$

In Stock, Qty 8

0

18

Echo 43723914730

NIPPLE

$7.99

$

Usually ships in 2-4 days

0

19

Echo 43611413930

VALVE, CHECK

$6.49

$

In Stock, only 1 left!

0

20

Echo V805000010

SCREW - 5×20

$0.99

$

Usually ships in 2-4 days

0

21

Echo V805000020

SCREW - 5×35 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

22

Echo V805000170

SCREW - 5×25

$0.99

$

Usually ships in 2-4 days

0

23

Echo A011000540

CRANKSHAFT ASY
(Superseded to A011001270)

$237.99

$

Usually ships in 2-4 days

0
