CS-590 - Echo Chainsaw (SN: 37000001 - 37999999) Oil System Parts Diagram

Chainsaw

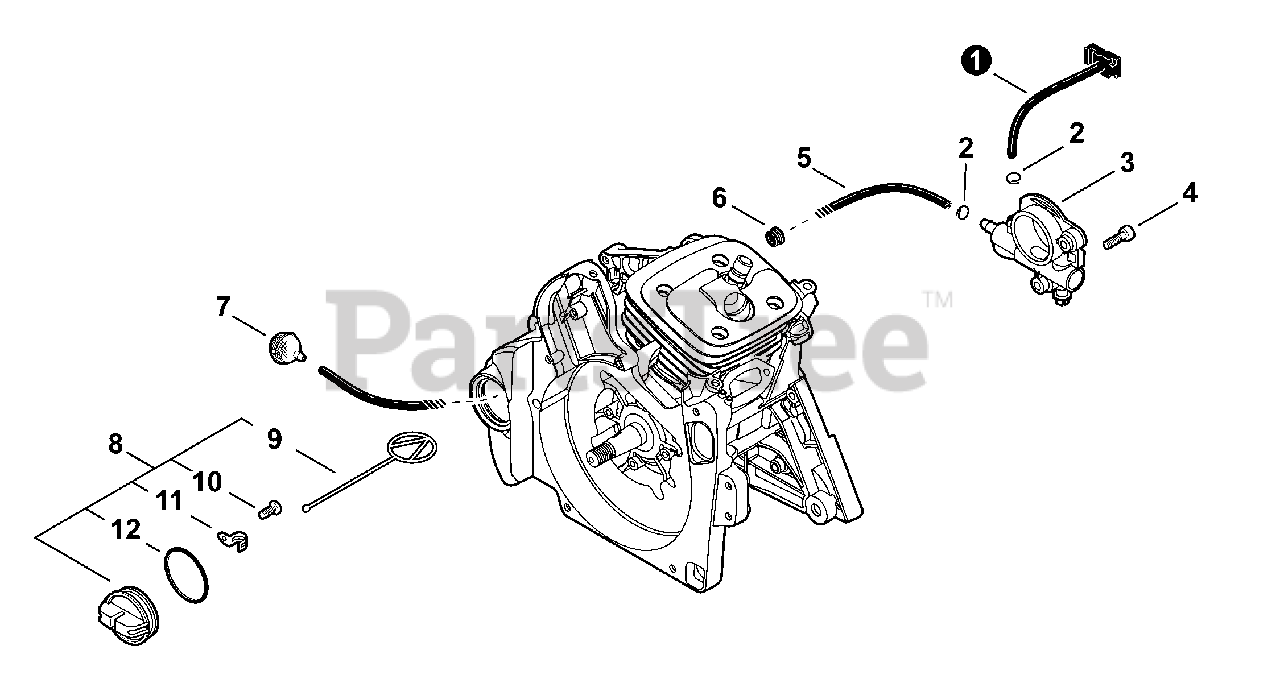

Oil System Parts Diagram

  • Title
1

Echo V470000830

PIPE, OIL
(Superseded to V470000831)

$9.99

$

Usually ships in 2-4 days

0

2

$0.99

$

In Stock, Qty 15

0

3

Echo C022000052

AUTO-OILER ASSY
(Superseded to C022000053)

$62.99

$

In Stock, Qty 8

0

4

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

5

Echo 43721030830

PIPE, FUEL 3×6×210 BLACK
(Superseded to 43721030831)

$5.99

$

In Stock, only 3 left!

0

6

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

7

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 3 left!

0

8

Echo P021016031

CAP ASSY, OIL
(Superseded to P100004881)

Note: Includes Items 9-12

$12.99

$

In Stock, only 2 left!

0

9

Echo 13105119830

CONNECTOR, CAP L= 60mm
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

10

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

11

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

12

Echo 90072000028

O-RING 28

$3.49

$

Usually ships in 2-4 days

0
