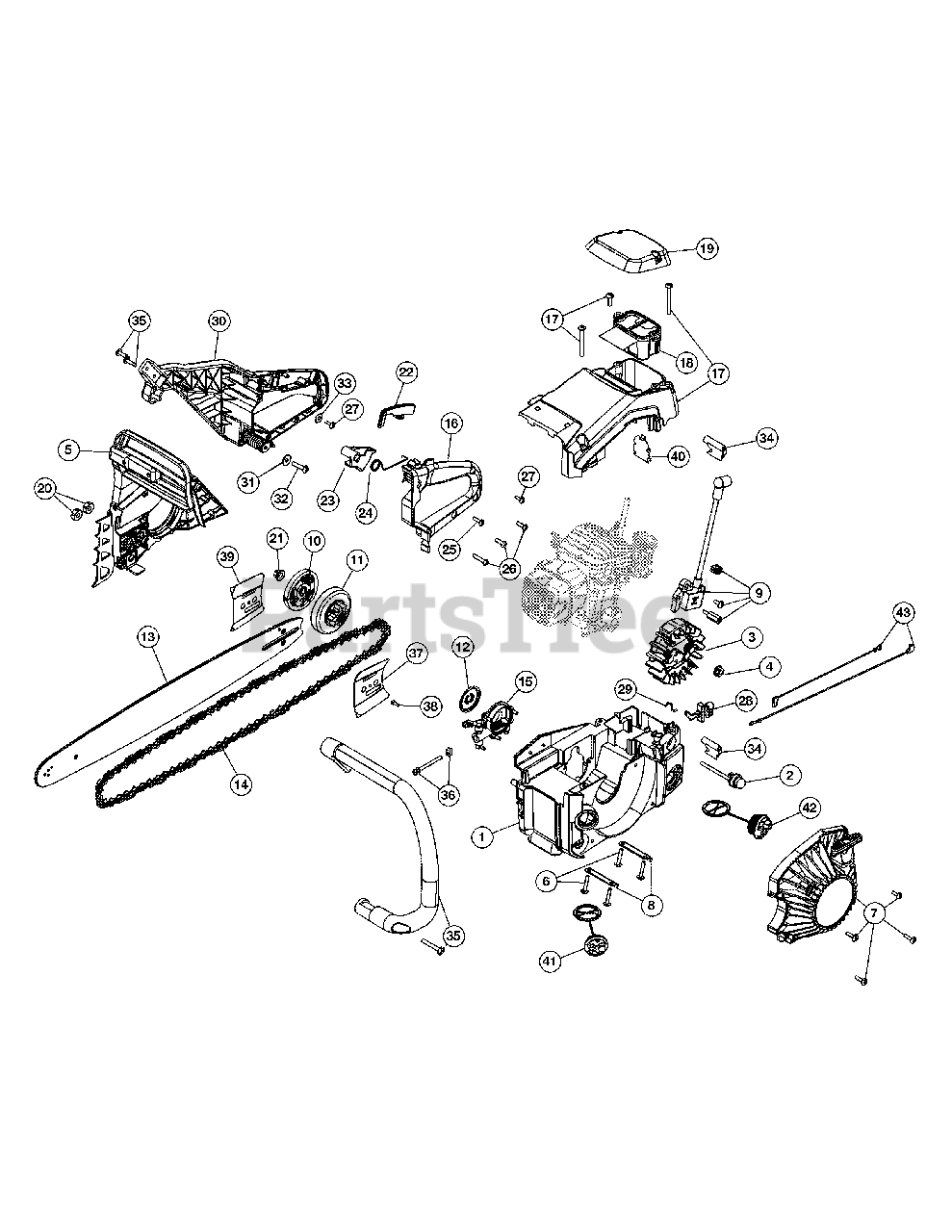

CS 552 (41AY85AS912) - Cub Cadet Chainsaw (2013) General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06730

Housing Assembly (Incl. 2, 41 & 42)

$

$

Not available

2

Cub Cadet 753-06425

Primer Bulb Assembly

$

$

Not available

3

Cub Cadet 753-06976

Flywheel Assembly

$19.99

$

In Stock, only 1 left!

0

4

Cub Cadet 753-06427

Flywheel Nut

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-06983

Chain Brake Assembly

$52.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-06429

Engine Mount Screw

$

$

Not available

7

Cub Cadet 753-06984

Starter Housing Assembly

$

$

Not available

8

Cub Cadet 753-06431

Engine Mount Plate Assembly (Incl. 6)

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-06432

Module Assembly

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-06449

Clutch

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06450

Clutch Drum Assembly

$

$

Not available

12

Cub Cadet 753-06451

Oil Pump Shield

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-06745

Bar, 20"

$41.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-06267

20" Chain
(Superseded to 913-05044)

$47.99

$

In Stock, Qty 12

0

15

Cub Cadet 753-06387

Oil Pump Assembly

$

$

Not available

16

Cub Cadet 753-06734

Rear Handle Cover Assembly w/switch

$

$

Not available

17

Cub Cadet 753-06456

Top Cover Assembly (Incl. 40)

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-06457

Air Cleaner Assembly

$

$

Not available

19

Cub Cadet 753-06458

Air Cleaner Cover Assembly

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-06460

Bar Nut

$2.99

$

In Stock, Qty 20+

0

21

Cub Cadet 753-06461

Clutch Nut

$2.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-06985

Trigger Release

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-06986

Throttle Trigger

$2.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 753-06466

Trigger Release Spring

$2.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 753-06467

Upper Grip Screw

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 753-06468

Lower Grip Screw
(Superseded to 753-06470)

$2.99

$

In Stock, Qty 12

0

27

Cub Cadet 753-06470

Throttle Clamp Screw

$2.99

$

In Stock, Qty 12

0

28

Cub Cadet 753-06987

Choke Lever Assembly

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 753-06474

Choke Rod

$2.99

$

In Stock, only 1 left!

0

30

Cub Cadet 753-06738

Rear Handle Assembly

$14.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 753-06477

Grip Anti-vibration Washer

$2.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 753-06478

Grip Anti-vibration Screw

$2.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-06479

Throttle Clamp Washer

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 753-06739

Boot

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 753-06483

Handle Assembly

$11.99

$

In Stock, only 2 left!

0

36

Cub Cadet 753-06484

Tension Screw & Nut Assembly

$

$

Not available

37

Cub Cadet 753-06740

Inner Guide Plate

$

$

Not available

38

Cub Cadet 753-06487

Guide Plate Screw

$2.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 753-06488

Outer Guide Plate

$

$

Not available

40

Cub Cadet 753-06504

Screen

$2.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 753-06505

Oil Cap

$3.49

$

In Stock, Qty 9

0

42

Cub Cadet 753-06741

Fuel Cap

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 753-06510

Ground Wire

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-06489

Case

Note: (Not shown)

$

$

Not available

Cub Cadet 753-06490

Wrench

Note: (Not shown)

$

$

Not available
