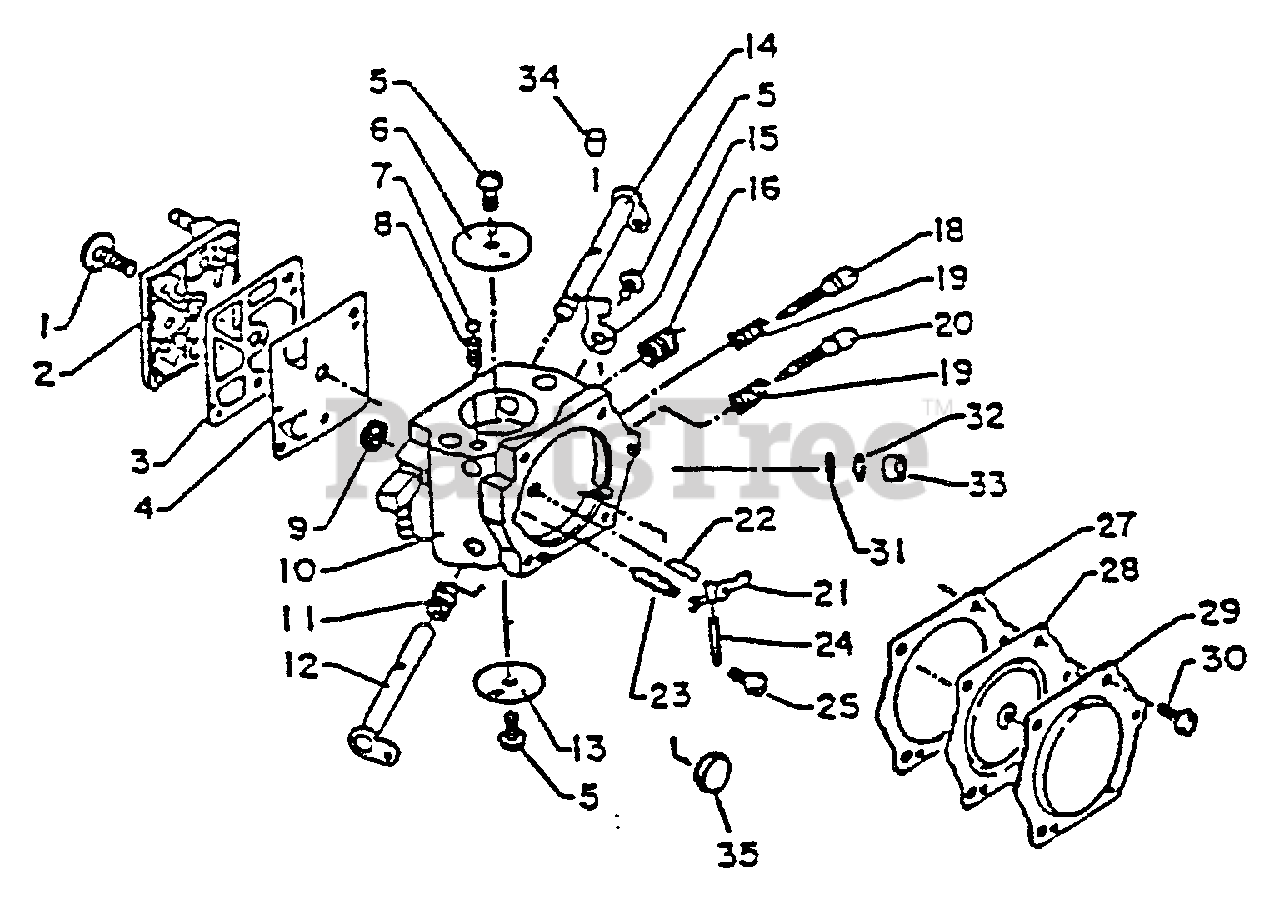

CS-5500 - Echo Chainsaw (SN: 020977 - 999999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12300032330

CARBURETOR HDA-53

$156.99

$

Usually ships in 2-4 days

0

1

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

3

------------------

GASKET, PUMP

$

$

Not available

4

------------------

DIAPHRAGM, PUMP

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

6

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

------------------

STRAINER

$

$

Not available

10

------------------

BODY, CARBURETOR

Note: Use Carb Asy P/N 12300032330

$

$

Not available

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311732430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

15

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

18

Echo 12311818331

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

19

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

20

Echo 12312018431

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

21

------------------

LEVER, METERING

$

$

Not available

22

------------------

SPRING, METER LEVER

$

$

Not available

23

------------------

VALVE, INLET NEEDLE

$

$

Not available

24

------------------

PIN, METERING LEVER

$

$

Not available

25

------------------

SCREW, METERING LEVER PIN

$

$

Not available

27

------------------

GASKET, METERING

$

$

Not available

28

------------------

DIAPHRAGM, METERING

$

$

Not available

29

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

30

------------------

SCREW

$

$

Not available

31

------------------

STRAINER

$

$

Not available

32

------------------

PIN, RETAINING

$

$

Not available

33

------------------

PLUG, WELCH

$

$

Not available

34

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

35

------------------

PLUG, WELCH

$

$

Not available

Echo 160336801

GUIDE BAR - 16" (40cm)

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 200337901

GUIDE BAR - 20" (50cm)

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 240339101

GUIDE BAR - 24" (60cm)

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 333068

SAW CHAIN - 33SL-68G -- 16"

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 333079

SAW CHAIN - 33SL 79G -- 20"

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 333091

SAW CHAIN - 24" (60cm)

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 12310030830

REPAIR KIT
(Superseded to Discontinued)

$

$

Not available

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
