CS-5500 - Echo Chainsaw (SN: 001001 - 020976) Clutch, Cutting Attch, Chain Brake Parts Diagram

Chainsaw

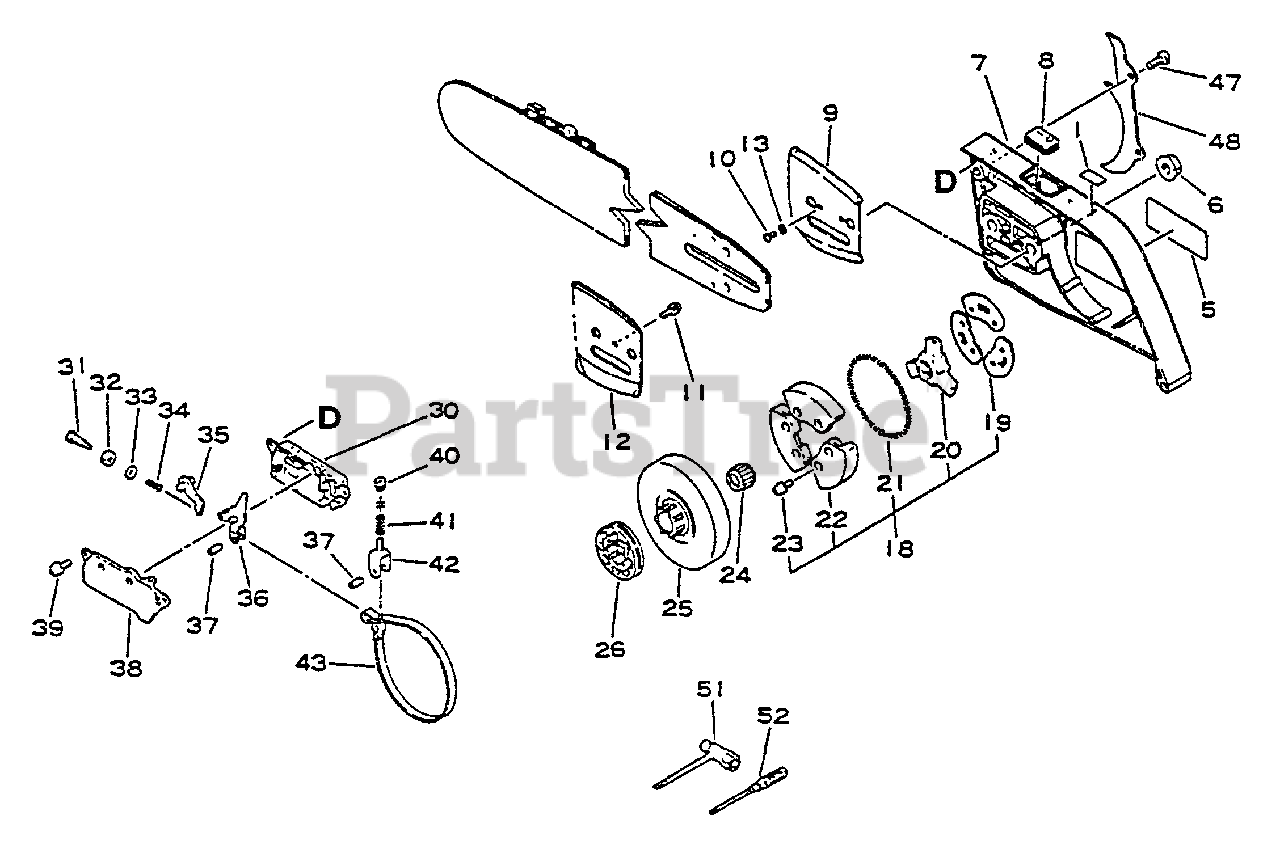

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title
1

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

5

Echo 89011818331

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

6

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

7

Echo 43300532330

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

$2.99

$

In Stock, only 1 left!

0

9

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, only 4 left!

0

10

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

11

Echo 90028104008

SCREW - 4X8
(Superseded to 90023804008)

$0.99

$

In Stock, Qty 10

0

12

Echo 43301330830

PLATE, GUIDE - INNER

Note: Includes ref. 13

$5.49

$

In Stock, only 3 left!

0

13

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

18

Echo 17500019830

CLUTCH ASSY
(Superseded to 17500037530)

$65.99

$

In Stock, only 1 left!

0

19

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17501619830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

21

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

22

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

23

Echo 90028104008

SCREW - 4X8
(Superseded to 90023804008)

$0.99

$

In Stock, Qty 10

0

24

Echo 17501219830

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

25

Echo 17510519831

DRUM, CLUTCH
(Superseded to 17510533330)

$

$

Not available

26

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 13

0

Echo 43320232330

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

30

Echo 43330619930

COVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

32

$0.99

$

In Stock, Qty 10

0

33

$0.99

$

In Stock, only 3 left!

0

34

Echo 43312219930

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

35

Echo 43320919930

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

36

Echo 43320830230

LEVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

37

Echo 90034540010

PIN - SPRING

$2.49

$

In Stock, only 1 left!

0

38

Echo 43331019931

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

39

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 5

0

$5.49

$

Usually ships in 2-4 days

0

41

$0.99

$

In Stock, only 1 left!

0

42

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.49

$

Usually ships in 2-4 days

0

43

Echo 43312332330

BAND, BRAKE

$7.99

$

In Stock, only 1 left!

0

$10.99

$

In Stock, only 1 left!

0

48

Echo 88020032430

SPIKE KIT
(Superseded to P021002880)

Note: Includes ref. 47

$10.99

$

Usually ships in 2-4 days

0

51

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

52

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0
