CS-550 P - Echo Chainsaw (SN: C10712001001 - C10712999999) Engine, Crankcase Parts Diagram

Chainsaw

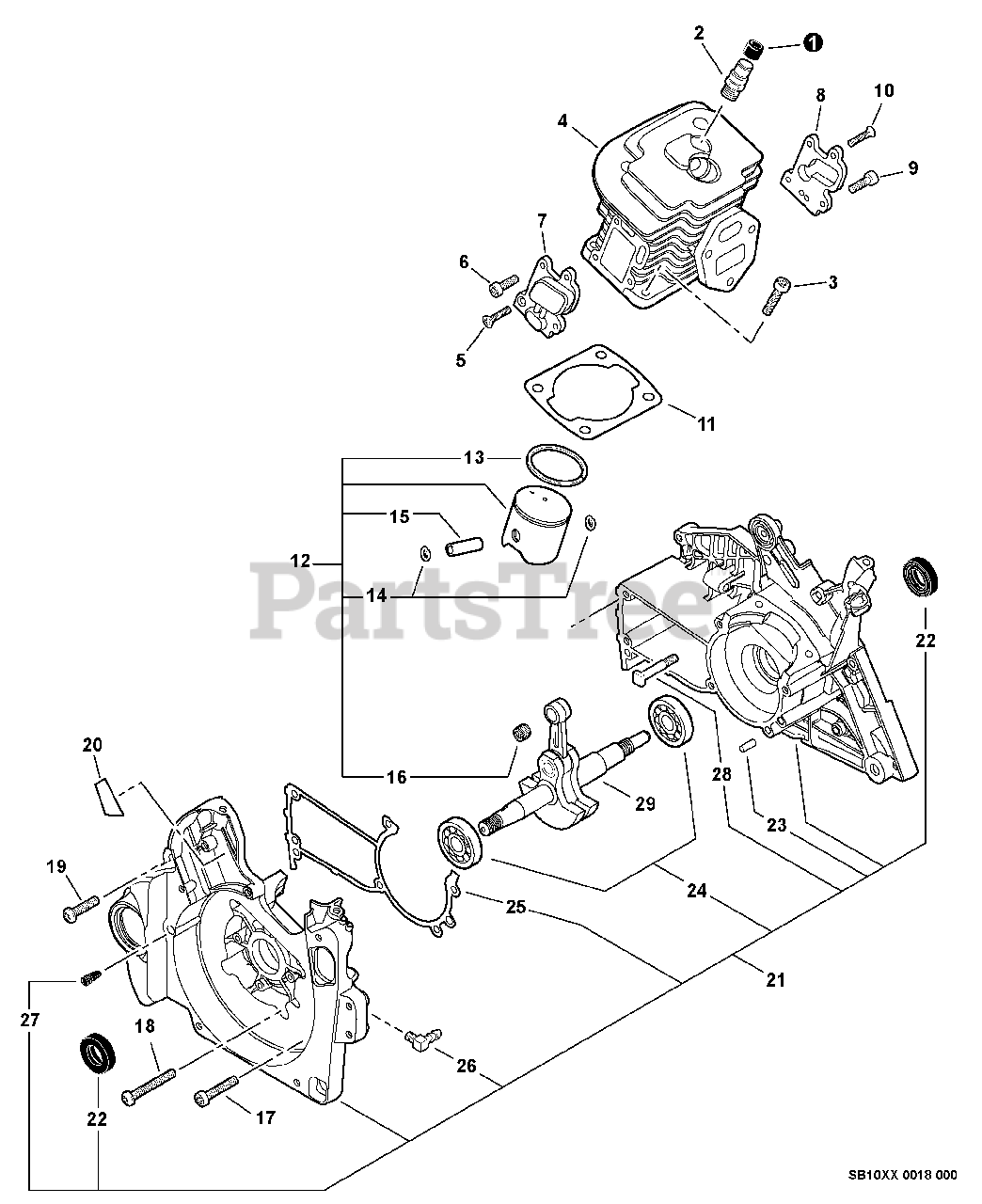

Engine, Crankcase Parts Diagram

  • Title
1

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

2

Echo A014000040

DECOMPRESSION ASSY
(Superseded to A014000110)

$46.99

$

In Stock, only 1 left!

0

3

Echo V805000220

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

4

Echo A130001740

CYLINDER

$253.99

$

Usually ships in 2-4 days

0

5

Echo 90021204014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

6

Echo V804000050

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

7

Echo P021036660

REED VALVE ASSY - LEFT

$26.99

$

Usually ships in 2-4 days

0

8

Echo P021036670

REED VALVE ASSY - RIGHT

$26.99

$

Usually ships in 2-4 days

0

9

Echo V804000050

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

10

Echo 90021204010

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

11

Echo V100000630

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

12

Echo P021036680

PISTON KIT

$74.99

$

Usually ships in 2-4 days

0

13

Echo A101000590

RING, PISTON

Note: Includes ITEMS 13-16

$13.99

$

Usually ships in 2-4 days

0

14

Echo 10001532330

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

15

Echo V609000000

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

16

Echo V556000000

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

17

Echo V805000170

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000020

SCREW - 5X35 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

19

Echo V805000010

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

20

Echo V376001780

CUSHION

$1.49

$

Usually ships in 2-4 days

0

21

Echo P021036691

CRANKCASE KIT

Note: Includes ITEMS 21-28

$256.99

$

Usually ships in 2-4 days

0

22

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$5.49

$

In Stock, only 4 left!

0

23

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 9403646202

BEARING, BALL - 6202

$9.99

$

Usually ships in 2-4 days

0

25

Echo V102000210

GASKET, CRANKCASE

$4.99

$

Usually ships in 2-4 days

0

26

Echo 43723914730

FITTING, GREASE

$7.99

$

Usually ships in 2-4 days

0

27

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

28

Echo V205000400

STUD, GUIDE BAR
(Superseded to V205000401)

$2.99

$

In Stock, only 2 left!

0

29

Echo A011001101

CRANKSHAFT ASSY

$214.99

$

Usually ships in 2-4 days

0
