CS-550 P - Echo Chainsaw (SN: C10712001001 - C10712999999) Carburetor Parts Diagram

Chainsaw

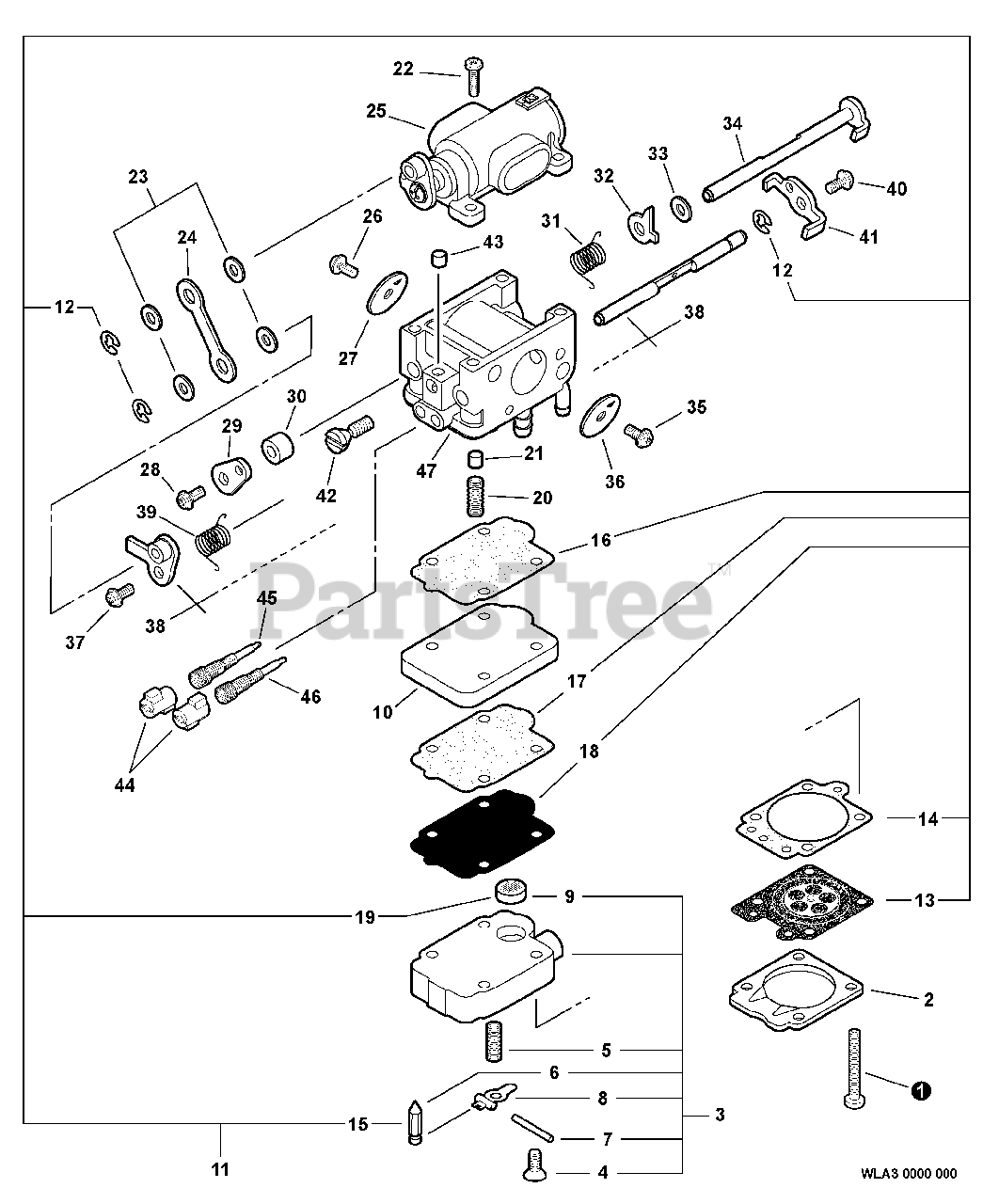

Carburetor Parts Diagram

  • Title

Echo A021003420

CARBURETOR WLA-3

$180.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, Qty 6

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

Echo P003004220

PUMP BODY ASSY

Note: Includes ITEMS 4-9

$28.99

$

Usually ships in 2-4 days

0

4

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

6

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

7

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

8

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

9

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

10

Echo P003002160

PLATE, PASSAGE

$23.99

$

Usually ships in 2-4 days

0

11

Echo P003002230

REPAIR KIT

Note: Includes ITEMS 12-19

$19.99

$

In Stock, only 1 left!

0

12

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

13

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

14

Echo 12314027230

GASKET, METERING

$3.99

$

In Stock, only 1 left!

0

15

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

16

Echo P003002110

GASKET, PASSAGE

$1.49

$

Usually ships in 2-4 days

0

17

Echo P003000100

GASKET, PUMP

$4.99

$

In Stock, only 4 left!

0

18

Echo 12311240630

DIAPHRAGM, PUMP

$12.99

$

In Stock, only 1 left!

0

19

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

20

$5.99

$

In Stock, only 1 left!

0

21

Echo 12318539130

PISTON ASSY

$5.99

$

Usually ships in 2-4 days

0

22

$2.49

$

In Stock, only 3 left!

0

23

$0.99

$

In Stock, only 1 left!

0

24

$11.99

$

Usually ships in 2-4 days

0

25

Echo P003004230

AIR VALVE ASSY

$44.99

$

Usually ships in 2-4 days

0

26

$1.49

$

In Stock, Qty 13

0

27

Echo P003002200

VALVE, CHOKE

$4.99

$

Usually ships in 2-4 days

0

28

$1.49

$

In Stock, Qty 13

0

29

Echo P003004060

LEVER, CHOKE

$1.49

$

Usually ships in 2-4 days

0

30

$11.99

$

Usually ships in 2-4 days

0

31

$11.99

$

Usually ships in 2-4 days

0

32

Echo P003001510

LEVER, CHOKE
(Superseded to Discontinued)

$

$

Not available

33

$0.99

$

In Stock, only 1 left!

0

34

Echo P003004270

SHAFT, CHOKE

$7.99

$

Usually ships in 2-4 days

0

35

$1.49

$

In Stock, Qty 13

0

36

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

37

$1.49

$

In Stock, Qty 13

0

38

Echo P003004260

THROTTLE SHAFT ASSY

$12.99

$

Usually ships in 2-4 days

0

39

$2.49

$

In Stock, Qty 11

0

40

$1.49

$

In Stock, Qty 13

0

41

Echo P003004250

LEVER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

42

Echo P003004280

SCREW, IDLE ADJUST

$2.99

$

Usually ships in 2-4 days

0

$4.99

$

Usually ships in 2-4 days

0

44

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

45

Echo P003004320

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

46

Echo P003004310

NEEDLE - LOW SPEED

$5.49

$

Usually ships in 2-4 days

0

47

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
