CS-550 EVLP - Echo Chainsaw Engine, Crankcase, Intake Parts Diagram

Chainsaw

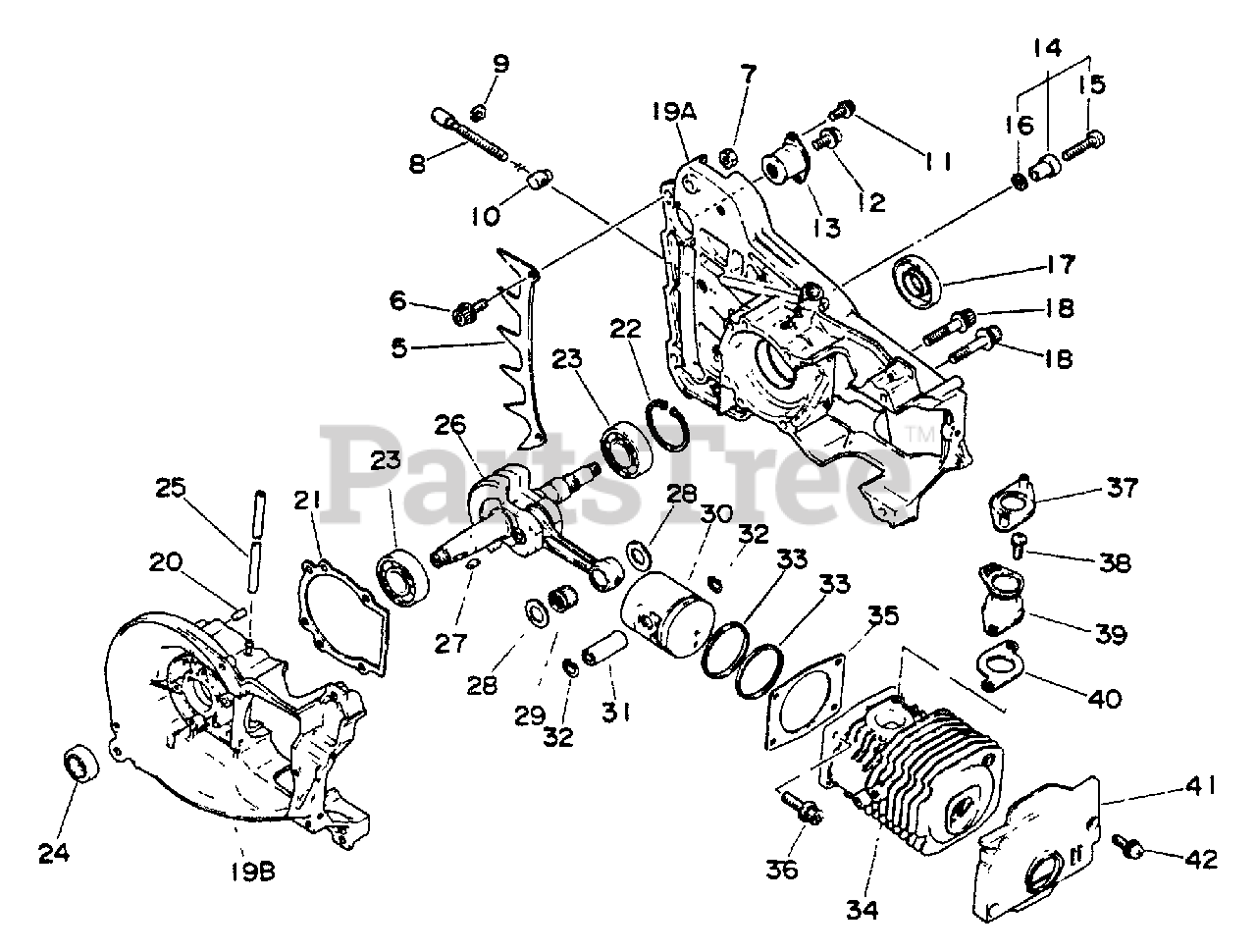

Engine, Crankcase, Intake Parts Diagram

  • Title

5

Echo 88021014330

SPIKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

7

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

8

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

9

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 15

0

10

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

11

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

12

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

13

Echo 10092112331

CUSHION

$8.49

$

Usually ships in 2-4 days

0

14

Echo 43300012830

CHAIN CATCHER KIT
(Superseded to Discontinued)

$

$

Not available

15

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

18

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

19

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

19A

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 19, Crankcase set, P/N 10020015230

$

$

Not available

19B

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 19, Crankcase set, P/N 10020015230

$

$

Not available

20

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

21

Echo 10024215230

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

22

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

23

Echo 90081006202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

24

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 5

0

25

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

26

Echo 10010017330

CRANKSHAFT ASSY
(Superseded to 10010013730)

$

$

Not available

27

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

28

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0

29

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

30

Echo 10001017330

PISTON
(Superseded to 10000017330)

$79.99

$

Usually ships in 2-4 days

0

31

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

32

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

33

Echo 10001117330

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

34

Echo 10101117330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

35

Echo 10101017330

GASKET, CYLINDER
(Superseded to 10101017331)

$

$

Not available

36

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

37

Echo 13003412331

SEAL

$4.99

$

Usually ships in 2-4 days

0

38

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

39

Echo 13050812331

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

40

Echo 13001012330

GASKET, INTAKE
(Superseded to 13001012331)

$1.49

$

In Stock, only 3 left!

0

41

Echo 10151415230

COVER, CYLINDER

$28.99

$

Usually ships in 2-4 days

0

42

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0
