CS-550 EVLP - Echo Chainsaw Chain Brake Parts Diagram

Chainsaw

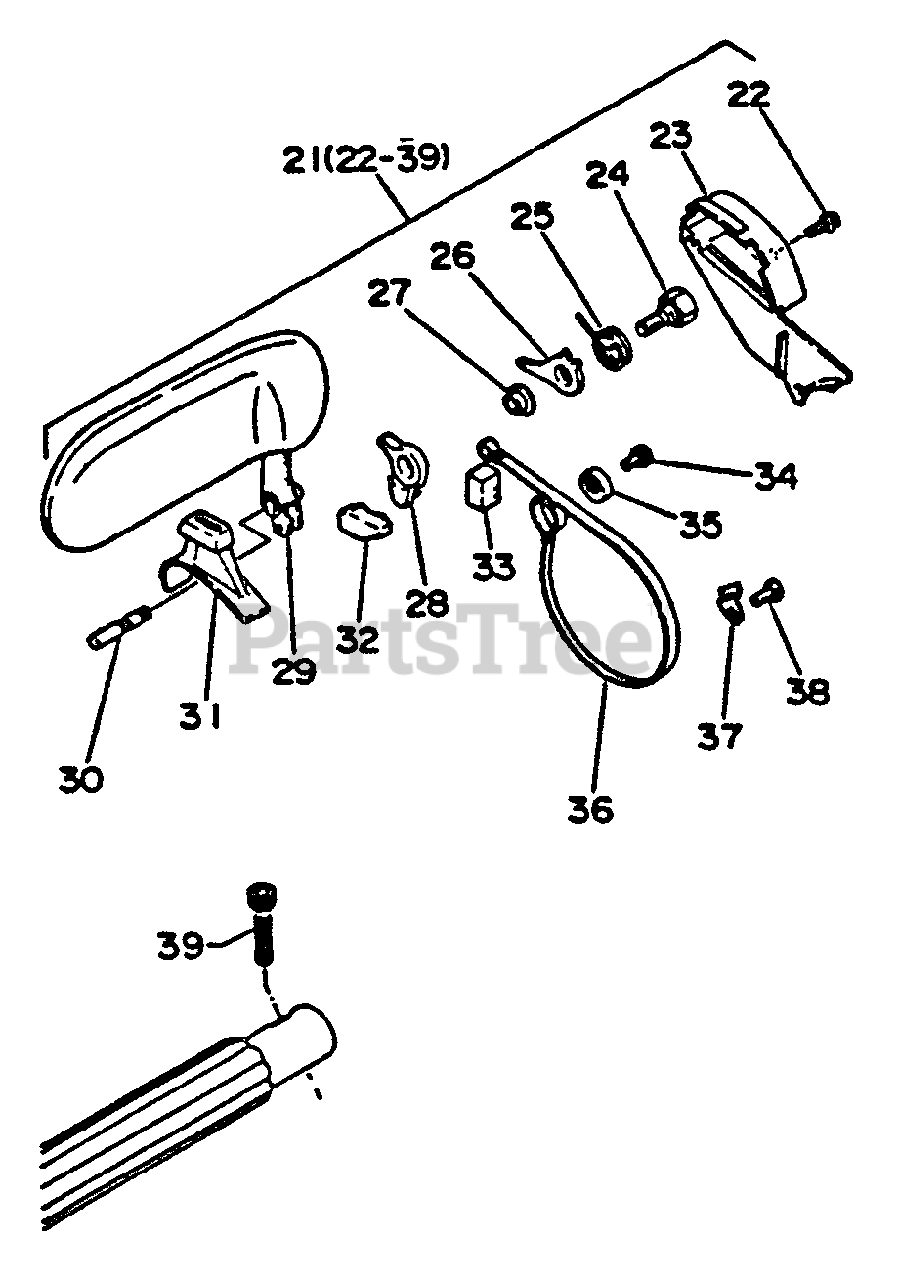

Chain Brake Parts Diagram

  • Title

21

Echo 43310017330

CHAIN BRAKE ASSY
(Superseded to 43310017331)

$

$

Not available

22

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

23

Echo 43331012330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

24

Echo 43313412330

BOLT

$6.99

$

In Stock, only 1 left!

0

25

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

26

Echo 43311912330

STOPPER

$4.49

$

In Stock, only 4 left!

0

27

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

28

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

29

Echo 43310517330

HANDLE
(Superseded to 43310517331)

$

$

Not available

30

Echo 43311312330

SCREW

$3.49

$

In Stock, only 1 left!

0

31

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

32

Echo 43314912530

RESET, BRAKE

$3.49

$

Usually ships in 2-4 days

0

33

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

34

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

35

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 3 left!

0

36

Echo 43312312330

BAND, BRAKE

$8.49

$

Usually ships in 2-4 days

0

37

Echo 43314414330

RETAINER, BRAKE BAND

$1.99

$

Usually ships in 2-4 days

0

38

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

39

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0
