CS-550 EVL - Echo Chainsaw Clutch, Cutting Attachment, Tools Parts Diagram

Chainsaw

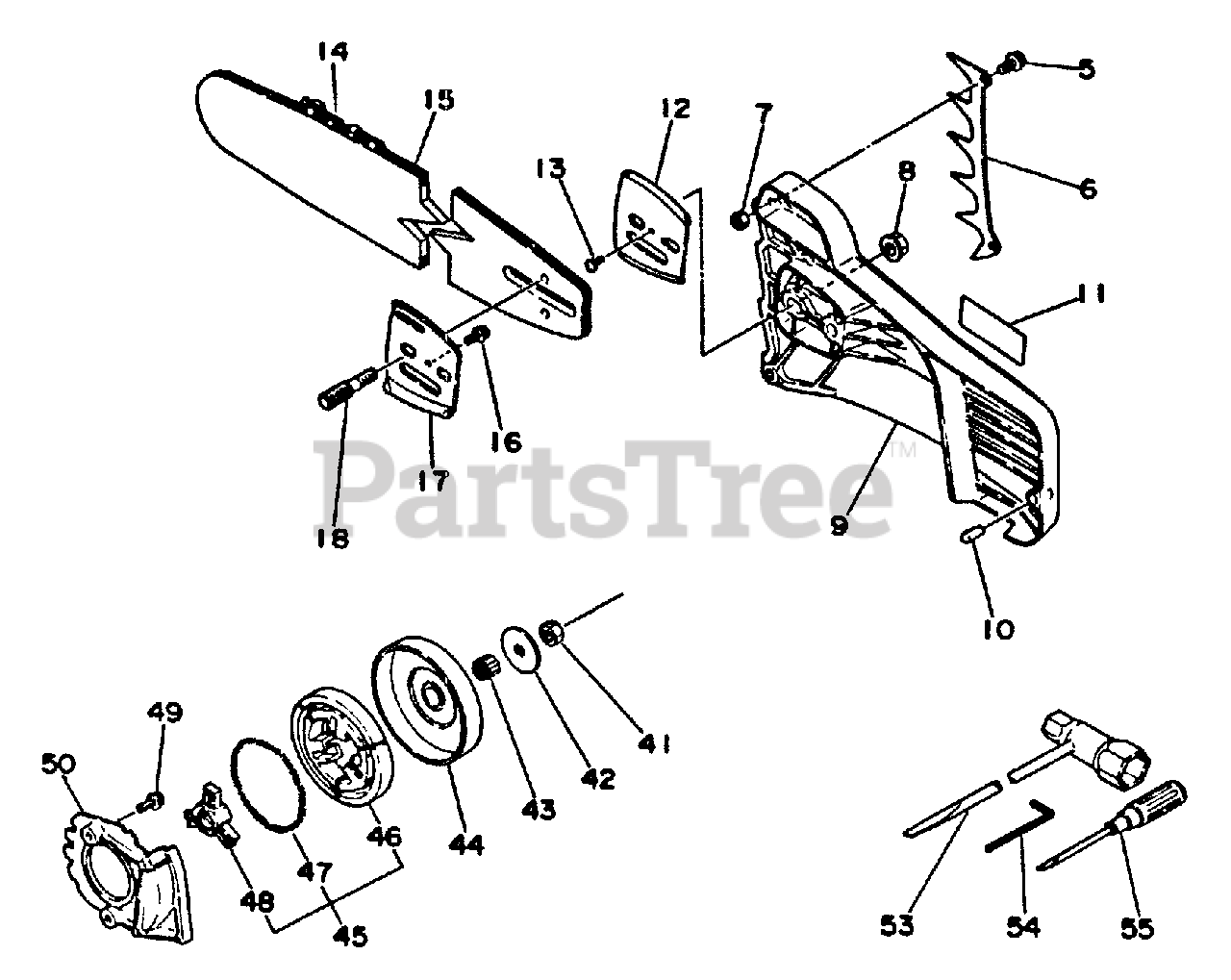

Clutch, Cutting Attachment, Tools Parts Diagram

  • Title
5

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

6

Echo 88021014330

SPIKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

8

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

9

Echo 43301018330

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

10

Echo 43303014430

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

11

Echo 89011818331

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

12

Echo 43301212332

PLATE, GUIDE - OUTER

$6.49

$

In Stock, only 1 left!

0

13

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

14

------------------

Chain

$

$

Not available

15

------------------

GUIDE BAR

$

$

Not available

16

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

17

Echo 43301312332

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 1 left!

0

18

Echo 43301112330

STUD, GUIDE BAR

$2.49

$

In Stock, only 2 left!

0

41

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, only 4 left!

0

42

Echo 17501503430

WASHER, CLUTCH

$

$

Not available

43

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

44

Echo 17500514330

DRUM, CLUTCH

$57.99

$

Usually ships in 2-4 days

0

45

Echo 17500012330

CLUTCH ASSY
(Superseded to 17500016130)

$

$

Not available

46

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

47

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

48

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

49

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

50

Echo 17531015230

SEAL, DUST

$11.99

$

Usually ships in 2-4 days

0

53

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

54

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

55

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0
