CS-530 - Echo Chainsaw (SN: C02904001001 - C02904999999) Carburetor -- WT-908 Parts Diagram

Chainsaw

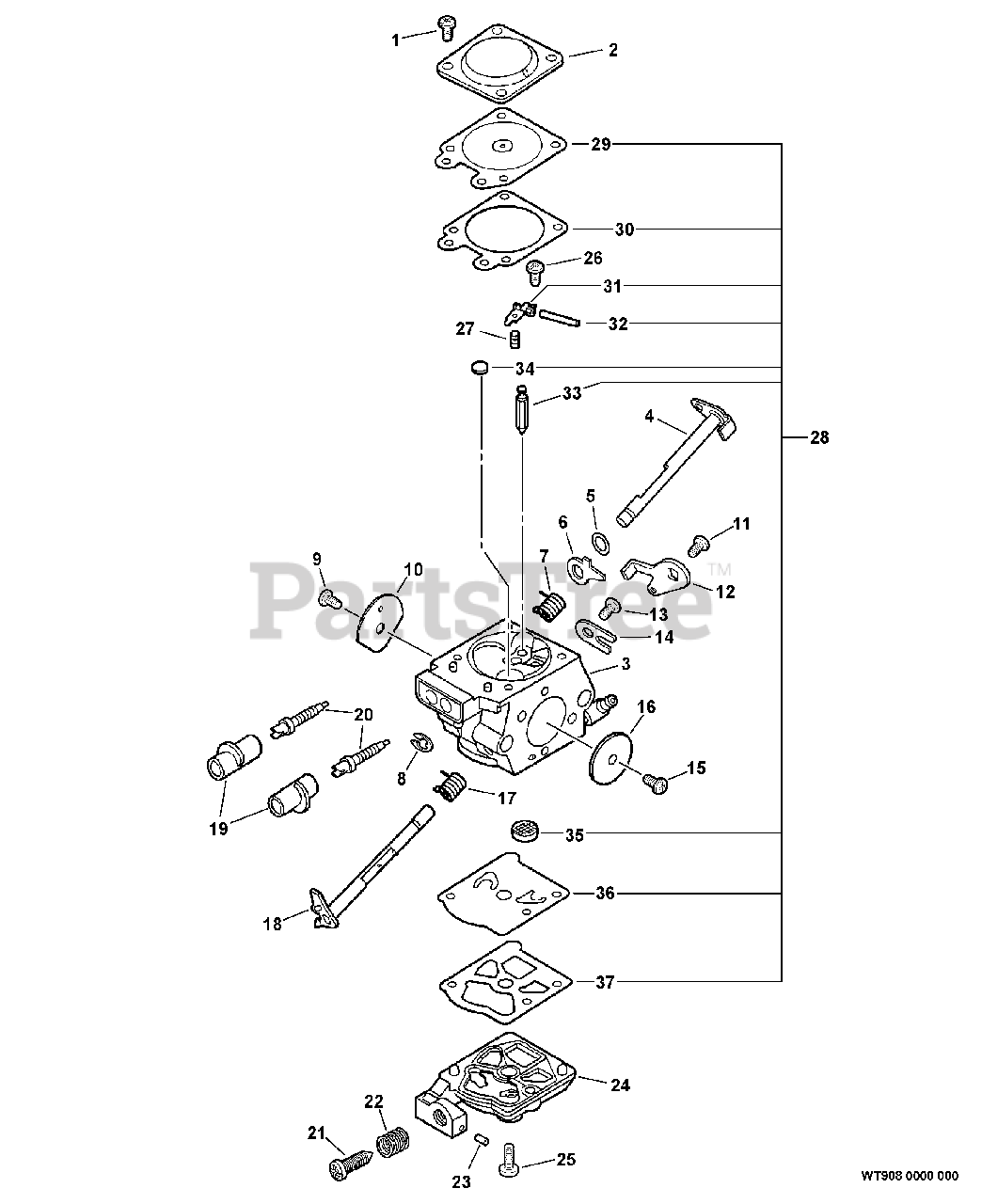

Carburetor -- WT-908 Parts Diagram

  • Title

Echo A021001620

CARBURETOR WT-908

$128.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

5

$0.99

$

In Stock, only 1 left!

0

6

Echo P003001510

LEVER, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo P003000140

SPRING, CHOKE RETURN

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

$1.49

$

In Stock, Qty 13

0

10

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

11

$1.49

$

In Stock, Qty 13

0

12

Echo P003001520

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

13

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

15

$1.49

$

In Stock, Qty 13

0

16

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

18

Echo P003001800

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

20

Echo 12311802261

NEEDLE - MIXTURE

$3.99

$

In Stock, Qty 11

0

21

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

22

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

$4.99

$

Usually ships in 2-4 days

0

24

Echo 12312438330

COVER, PUMP

$7.49

$

Usually ships in 2-4 days

0

25

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

26

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

27

Echo 12312239330

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

28

Echo P003002190

REPAIR KIT

Note: Includes ITEM 29-37

$10.99

$

In Stock, only 1 left!

0

29

------------------

DIAPHRAGM, METERING

$

$

Not available

30

------------------

GASKET, DIAPHRAGM

$

$

Not available

31

------------------

LEVER, METERING

$

$

Not available

32

------------------

PIN, METERING LEVER

$

$

Not available

33

------------------

VALVE, INLET NEEDLE

$

$

Not available

34

------------------

PLUG, WELCH

$

$

Not available

35

------------------

STRAINER

$

$

Not available

36

------------------

DIAPHRAGM, PUMP

$

$

Not available

37

------------------

GASKET, PUMP

$

$

Not available
