CS-530 - Echo Chainsaw (SN: C02803001001 - C02803999999) Chain Brake S/N: C02803001301 - C02803999999 Parts Diagram

Chainsaw

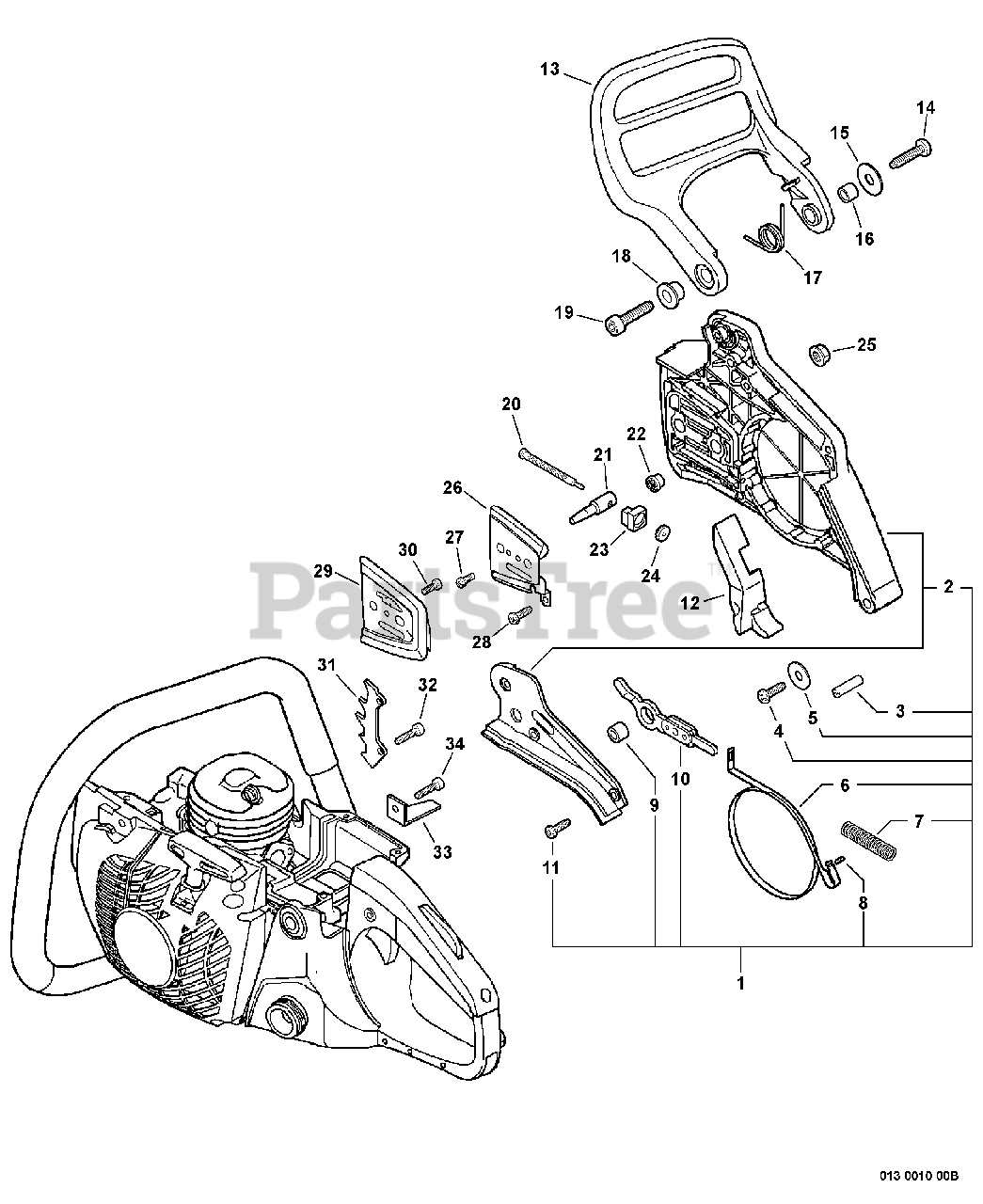

Chain Brake S/N: C02803001301 - C02803999999 Parts Diagram

  • Title
1

Echo C032000321

CHAIN BRAKE ASSY - ORANGE
(Superseded to C032000322)

Note: Includes ITEMS 2-11

$95.99

$

In Stock, Qty 6

0

2

Echo P021015240

SPROCKET GUARD KIT
(Superseded to P021015241)

$34.99

$

In Stock, only 1 left!

0

3

Echo 90034260025

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

4

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

5

$0.99

$

In Stock, Qty 11

0

6

Echo C328000110

BAND, BRAKE

$7.99

$

In Stock, only 1 left!

0

7

$2.49

$

In Stock, only 2 left!

0

8

Echo 90033030120

PIN - 3X12

$0.99

$

In Stock, Qty 5

0

9

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

10

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 4 left!

0

11

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

12

Echo C302000000

CUSHION

$5.49

$

Usually ships in 2-4 days

0

13

Echo C320000141

LEVER, BRAKE

$16.99

$

In Stock, only 2 left!

0

14

Echo V202000120

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

15

$0.99

$

In Stock, Qty 10

0

16

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

17

$1.49

$

In Stock, Qty 13

0

18

Echo V356000300

COLLAR - 10

$1.99

$

In Stock, Qty 20+

0

19

Echo 90010505030

SCREW - 5X30

$1.49

$

In Stock, only 3 left!

0

20

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

21

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

22

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

23

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

24

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

25

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

26

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 13

0

27

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

28

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

29

Echo 43301335432

PLATE, GUIDE - INNER

$5.99

$

In Stock, Qty 10

0

30

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

31

$7.99

$

Usually ships in 2-4 days

0

32

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

33

Echo C310000000

CATCHER, CHAIN

$1.99

$

In Stock, only 3 left!

0

34

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0
