CS-520 - Echo Chainsaw (SN: C09312001001 - C09312999999) Starter Parts Diagram

Chainsaw

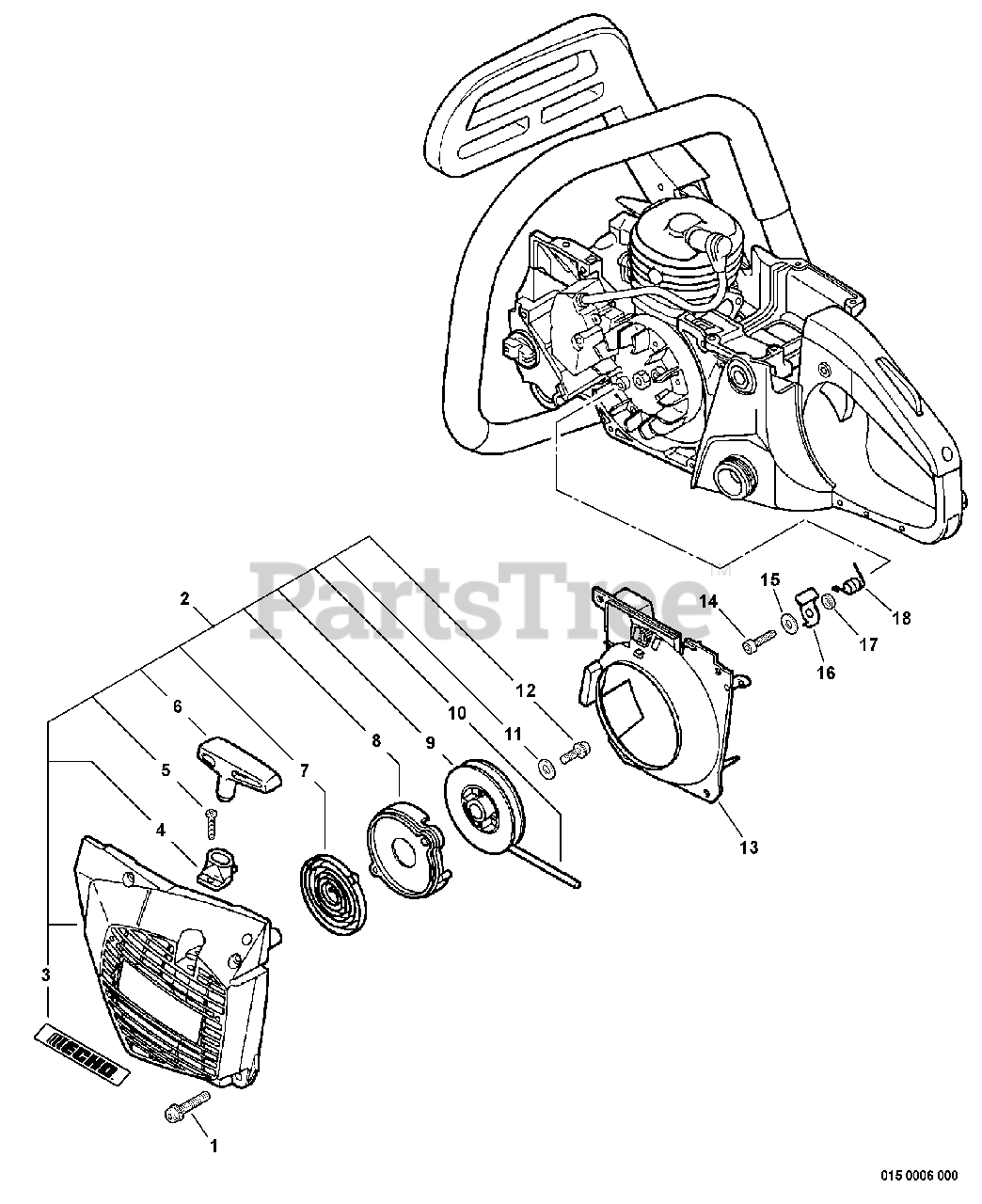

Starter Parts Diagram

  • Title

1

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

2

Echo 17720039335

STARTER ASSY
(Superseded to 17720039336)

Note: INCLUDES ITEMS 3-12

$97.99

$

In Stock, only 1 left!

0

3

Echo X502000010

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0

4

Echo 17722737930

GUIDE, ROPE

$3.49

$

Usually ships in 2-4 days

0

5

Echo 90029603014

SCREW - 3X14

$0.99

$

In Stock, only 3 left!

0

6

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$8.49

$

In Stock, Qty 20+

0

7

Echo 17722035430

SPRING, REWIND

$13.99

$

In Stock, only 1 left!

0

8

Echo 17722138330

PLATE, STARTER

$3.49

$

In Stock, only 4 left!

0

9

Echo 17721538330

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

10

Echo 17722605310

ROPE, STARTER - 3.5X960

Note: RePower BULK OPTION: 99944445000

$5.49

$

In Stock, only 1 left!

0

11

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

12

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

13

Echo A172000062

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

14

Echo V203000090

SCREW - 5X14

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, only 2 left!

0

17

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

18

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0
