CS-520 - Echo Chainsaw (SN: C07113001001 - C07113999999) Auto-Oiler, Oil Tank Parts Diagram

Chainsaw

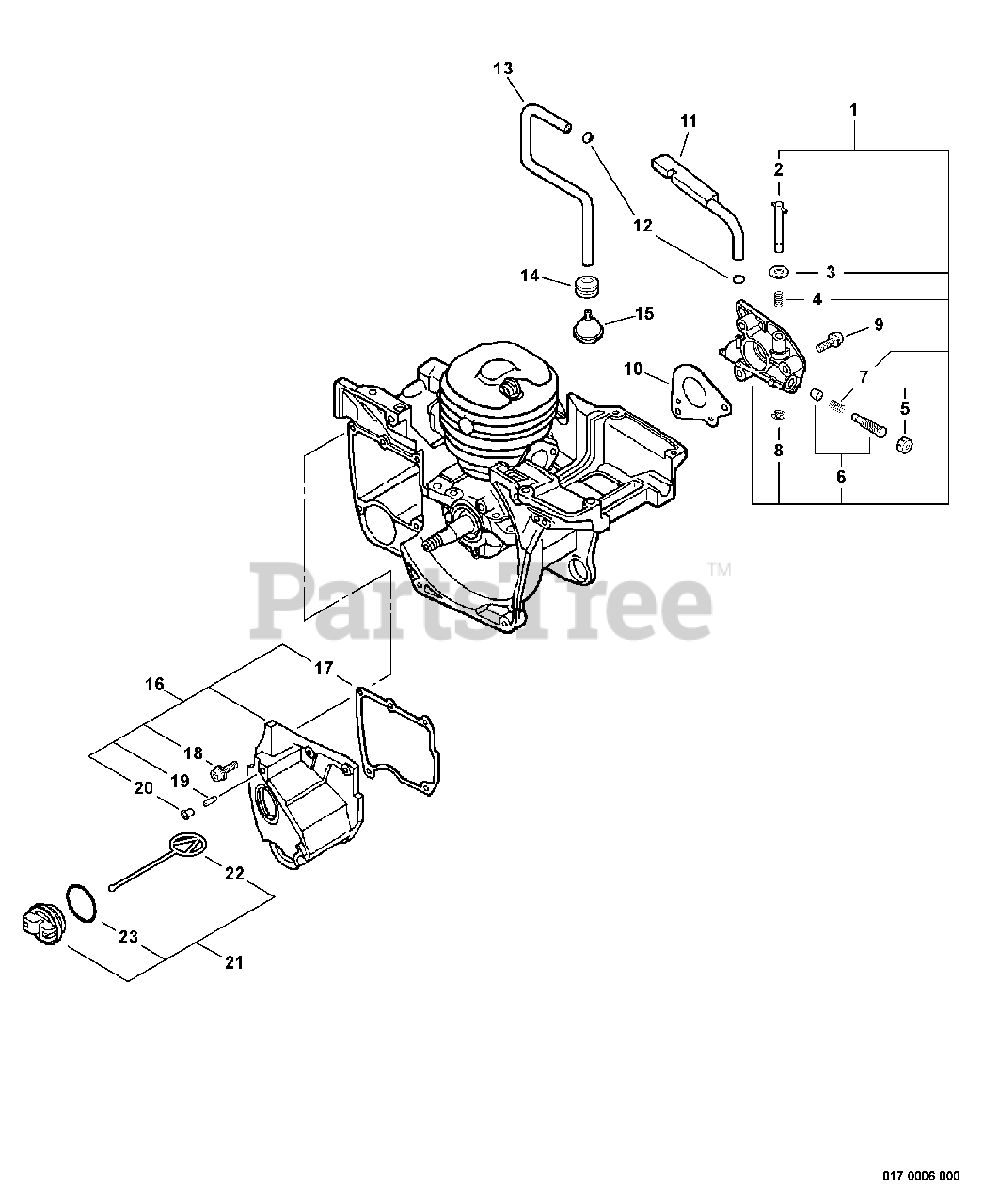

Auto-Oiler, Oil Tank Parts Diagram

  • Title

1

Echo 43700238330

AUTO-OILER ASSY

Note: INCLUDES ITEMS 2-9

$51.99

$

In Stock, Qty 9

0

2

Echo 43701638330

NEEDLE, ADJUST

$14.99

$

In Stock, only 1 left!

0

3

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

4

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

5

Echo 43706238330

CAP, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

6

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

7

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

8

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

9

Echo 90022304016

SCREW - 4X16

$0.99

$

In Stock, Qty 18

0

10

Echo 17531038330

SEAL, DUST

$1.49

$

In Stock, Qty 6

0

11

Echo 43722938331

PIPE - OIL

$

$

Not available

12

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

13

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 16

0

14

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

15

Echo 43620514730

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

16

Echo 43600539332

OIL TANK ASSY

Note: Includes ITEMS 17-20

$50.99

$

Usually ships in 2-4 days

0

17

Echo 43601938330

GASKET, OIL TANK

$1.99

$

In Stock, Qty 6

0

18

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

19

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 2 left!

0

20

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

21

Echo 43600139232

CAP ASSY - ORANGE
(Superseded to P021044580)

Note: INCLUDES ITEMS 22-23

$2.99

$

In Stock, Qty 20+

0

22

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

23

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0
