CS-520 - Echo Chainsaw (SN: 07001001 - 07999999) Intake, Exhaust Parts Diagram

Chainsaw

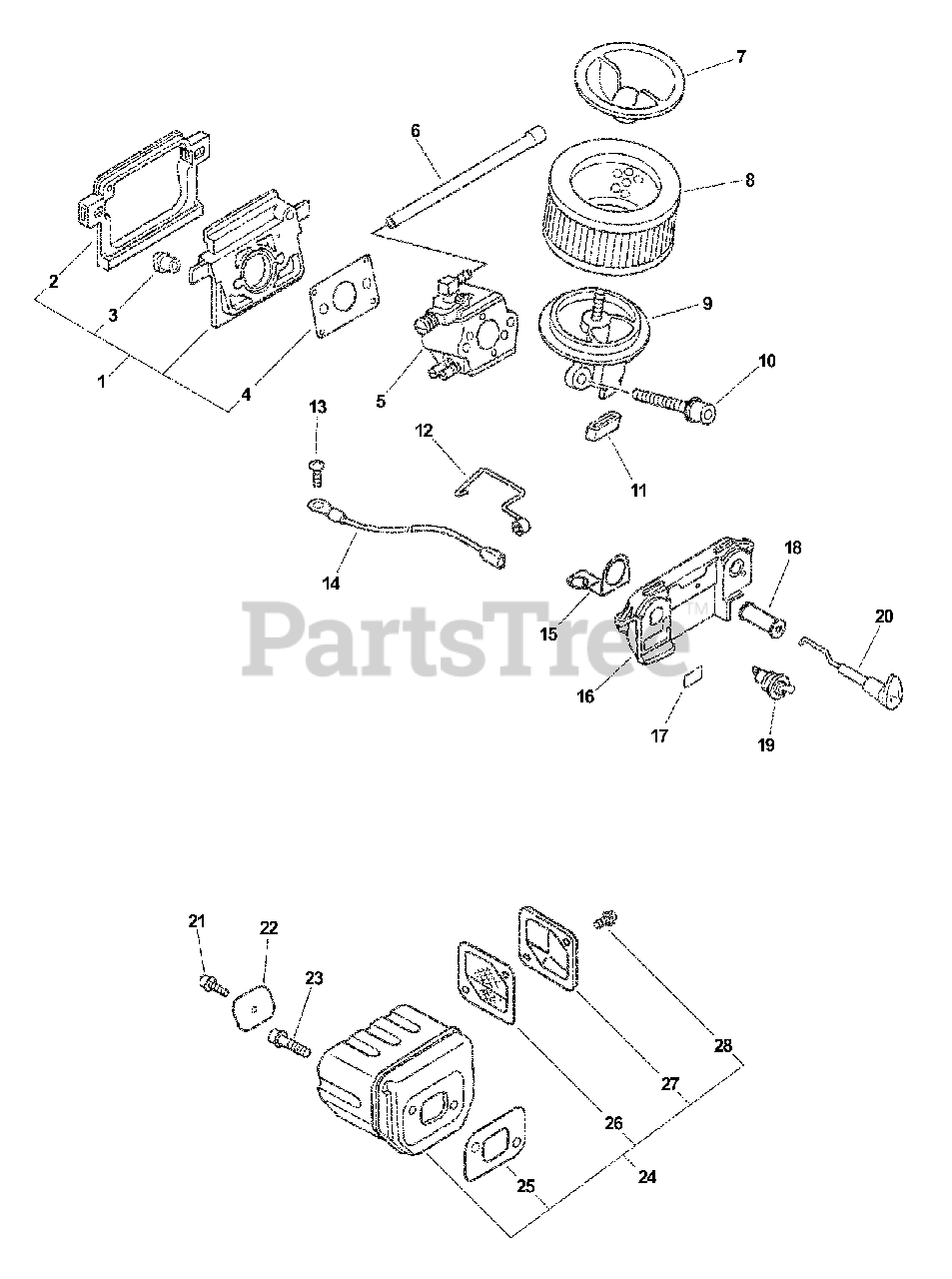

Intake, Exhaust Parts Diagram

  • Title
1

Echo 13000038330

INSULATOR KIT
(Superseded to 13000038331)

Note: Includes ITEMS 1-4

$20.99

$

In Stock, only 1 left!

0

2

Echo 13036638330

CUSHION
(Superseded to V420001130)

$5.99

$

Usually ships in 2-4 days

0

$3.49

$

In Stock, Qty 5

0

4

Echo 13001038330

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

5

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

6

Echo 13011038330

PIPE - IMPULSE
(Superseded to 13011038331)

$2.99

$

In Stock, only 4 left!

0

7

Echo 13040538331

COVER, AIR FILTER
(Superseded to 13040538332)

$9.99

$

In Stock, only 1 left!

0

8

Echo 13031038331

FILTER, AIR

$22.99

$

In Stock, only 4 left!

0

9

Echo A204000002

ADAPTOR, INTAKE
(Superseded to A204000003)

$10.99

$

Usually ships in 2-4 days

0

10

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

11

$1.99

$

In Stock, only 1 left!

0

12

Echo C454000041

ROD, THROTTLE

$7.99

$

Usually ships in 2-4 days

0

13

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

14

Echo 16201038331

LEAD - GROUND
(Superseded to 16201038332)

$2.99

$

In Stock, only 4 left!

0

15

Echo 16341338930

TERMINAL - GROUND

$3.49

$

Usually ships in 2-4 days

0

16

Echo 16381038932

BRACKET, SWITCH
(Superseded to 16381038933)

$23.99

$

Usually ships in 2-4 days

0

17

Echo 89015737330

LABEL - STOP

$1.99

$

In Stock, Qty 5

0

18

Echo 17881014532

GROMMET
(Superseded to 17881014534)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 16340038330

IGNITION SWITCH ASSY

$15.99

$

In Stock, only 1 left!

0

20

Echo 17851038331

ROD, CHOKE
(Superseded to A241000100)

$7.49

$

In Stock, Qty 14

0

21

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

22

$6.99

$

Usually ships in 2-4 days

0

23

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

24

Echo P021006591

MUFFLER ASSY

Note: INCLUDES ITEMS 25-28

$

$

Not available

25

Echo 14551035431

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

26

Echo 14588439330

SCREEN, SPARK ARRESTOR

$

$

Not available

27

Echo A303000050

GUIDE, EXHAUST

$4.99

$

Usually ships in 2-4 days

0

28

Echo 90025004008

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0
