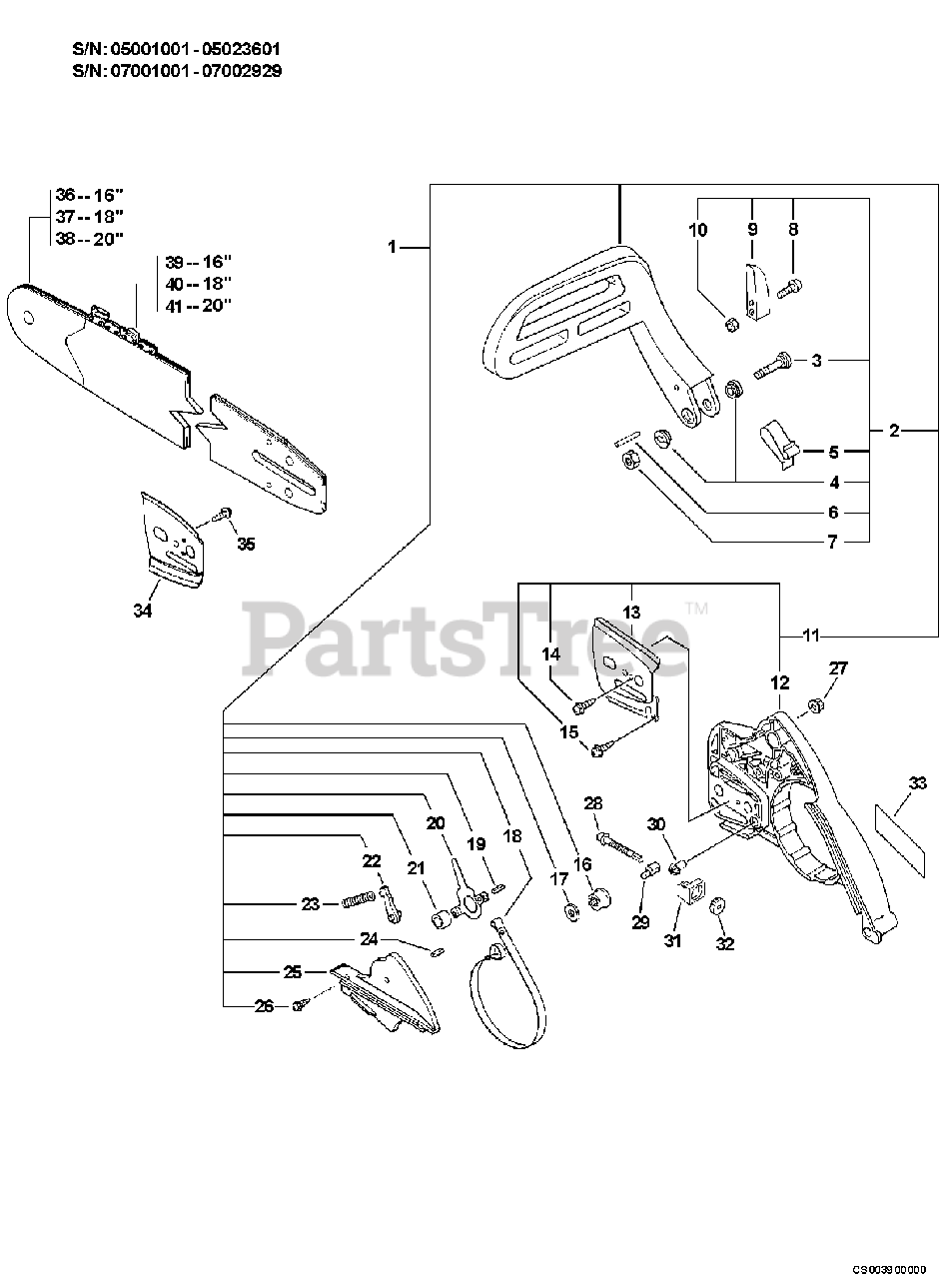

CS-520 - Echo Chainsaw (SN: 05001001 - 05999999) Chain Brake, Cutting Attachment S/N: 05001001 - 05023601 Parts Diagram

Chainsaw

Chain Brake, Cutting Attachment S/N: 05001001 - 05023601 Parts Diagram

  • Title

1

Echo 43310039034

CHAIN BRAKE ASSY
(Superseded to 43310039036)

Note: INCLUDES ITEMS 2-25

$70.99

$

In Stock, Qty 5

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: INCLUDES ITEMS 3-10

$33.99

$

Usually ships in 2-4 days

0

3

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

4

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 16

0

5

Echo 43311438331

SPRING

$6.99

$

Usually ships in 2-4 days

0

6

Echo 90033030260

PIN - 3X26

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

8

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

9

Echo 43317139330

WEIGHT, BRAKE

$8.49

$

Usually ships in 2-4 days

0

10

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

11

Echo P021001280

SPROCKET GUARD ASSY
(Superseded to P021001281)

Note: Includes ITEMS 12-15

$24.99

$

In Stock, Qty 11

0

12

Echo 43300539333

GUARD, SPROCKET
(Superseded to 43300539334)

$24.99

$

In Stock, Qty 11

0

13

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 13

0

14

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

15

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

16

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 3 left!

0

17

Echo V304000090

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

18

Echo C328000060

BAND, BRAKE

$7.49

$

In Stock, Qty 5

0

19

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

0

20

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

21

Echo 43311538330

WASHER - 5

$1.49

$

Usually ships in 2-4 days

0

22

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

23

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

24

Echo 90034225012

PIN - SPRING -- 2.5X12

$1.49

$

In Stock, only 3 left!

0

25

Echo 43331039330

COVER, BRAKE

$5.99

$

In Stock, only 4 left!

0

26

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

27

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

28

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 12

0

29

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

30

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

31

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

32

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

33

Echo X502000000

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

34

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$5.99

$

In Stock, Qty 10

0

35

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

36

Echo 16A0AD3366

GUIDE BAR - 16" (40cm)
(Superseded to 16F0AD3366C)

Note: GAUGE: .050"

$55.99

$

In Stock, only 1 left!

0

37

Echo 18A0AD3372

GUIDE BAR - 18" (45cm)

Note: GAUGE: .050"

$

$

Not available

38

Echo 20A0AD3378

GUIDE BAR - 20" (50cm)
(Superseded to 20F0AD3378C)

Note: GAUGE: .050"

$63.99

$

Usually ships in 2-4 days

0

39

Echo 33SL66CQ

SAW CHAIN - 16" (40cm)
(Superseded to 20BPX66CQ)

Note: GAUGE: .050" / PITCH: .325"

$33.99

$

In Stock, only 1 left!

0

40

Echo 33SL72CQ

SAW CHAIN - 18" (45cm)
(Superseded to 20BPX72CQ)

Note: GAUGE: .050" / PITCH: .325"

$36.99

$

In Stock, only 2 left!

0

41

Echo 33SL78CQ

SAW CHAIN - 20" (50cm)
(Superseded to 20BPX78CQ)

Note: GAUGE: .050" / PITCH: .325"

$38.99

$

Usually ships in 2-4 days

0
