CS-510 EVLP - Echo Chainsaw Carburetor Parts Diagram

Chainsaw

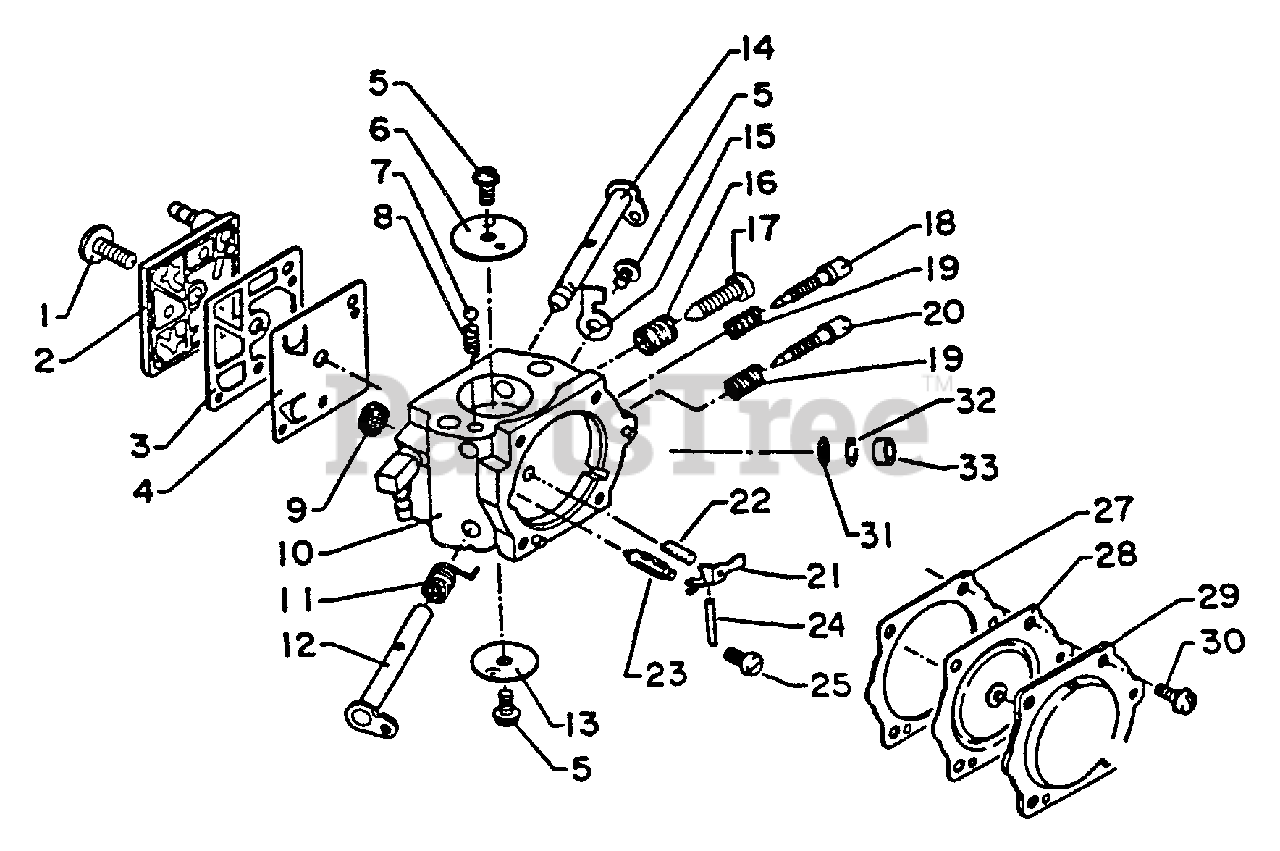

Carburetor Parts Diagram

  • Title

Echo 12300018332

CARBURETOR HAD-20B
(Superseded to 12300019030)

$

$

Not available

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12312412330

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12312512330

GASKET, PUMP

$2.99

$

In Stock, only 1 left!

0

4

Echo 12311212330

DIAPHRAGM, PUMP

$6.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

6

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 17

0

11

Echo 12311312330

SPRING, THROTTLE RETURN

$

$

Not available

12

Echo 12311712330

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12311603930

VALVE, THROTTLE

$1.99

$

In Stock, only 3 left!

0

14

Echo 12313117330

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

15

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

17

Echo 12313411130

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 1 left!

0

18

Echo 12311818330

NEEDLE - LOW SPEED
(Superseded to 12311818331)

$4.99

$

Usually ships in 2-4 days

0

19

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

20

Echo 12312018330

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

21

Echo 12312318330

LEVER, METERING

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12312218330

SPRING, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 12313716130

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

25

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

27

Echo 12314018330

GASKET, METERING
(Superseded to Discontinued)

$

$

Not available

28

Echo 12314116130

DIAPHRAGM, METERING

$

$

Not available

29

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

30

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12316810631

SCREEN, SPARK ARRESTOR

$1.49

$

In Stock, only 1 left!

0

32

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

33

Echo 12314617330

PLUG, WELCH

$4.99

$

Usually ships in 2-4 days

0

10

------------------

BODY, CARBURETOR

$

$

Not available

Echo 12310318330

DIAPHRAGM/GASKET KIT
(Superseded to Discontinued)

Note: Includes 3,4,27,28

$

$

Not available

Echo 12310218330

REPAIR KIT

Note: Includes 3,4,5,7,8,9,19,22,23,27,28,30,31,32

$

$

Currently unavailable
