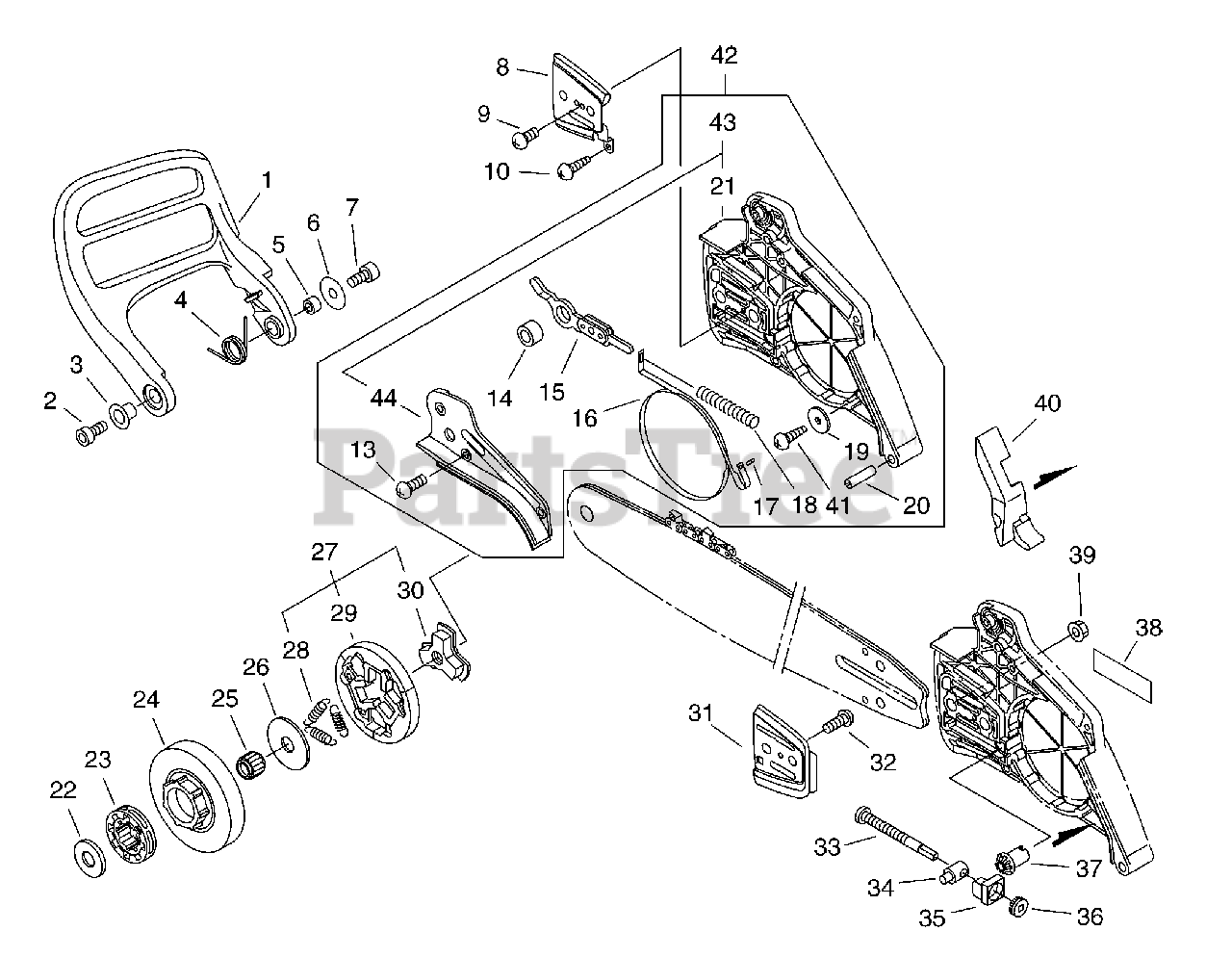

CS-510 - Echo Chainsaw (SN: C19120001001 - C19120999999) Clutch, Sprocket Parts Diagram

Chainsaw

Clutch, Sprocket Parts Diagram

  • Title

1

C320-000141

LEVER, BRAKE

$

$

Not available

2

Echo 90010505030

SCREW - 5X30

$1.49

$

In Stock, only 3 left!

0

3

Echo V356000300

COLLAR - 10

$1.99

$

In Stock, Qty 20+

0

4

Echo V452000250

SPRING

$1.49

$

In Stock, Qty 13

0

5

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 4 left!

0

6

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 10

0

7

Echo V202000120

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

8

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 13

0

9

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

10

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 16

0

42

C032-000321

CHAIN BRAKE ASSY

$

$

Not available

12

Echo C345000240

COVER, BRAKE
(Superseded to P021015240)

$34.99

$

In Stock, only 1 left!

0

13

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 16

0

14

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 4 left!

0

15

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 3 left!

0

16

Echo C328000110

BAND, BRAKE

$7.99

$

In Stock, only 1 left!

0

17

Echo 90033030120

PIN - 3X12

$0.99

$

In Stock, Qty 5

0

18

Echo V450000070

SPRING

$2.49

$

Usually ships in 2-4 days

0

19

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 11

0

20

Echo 90034260025

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

43

Echo P021015240

SPROCKET GUARD KIT
(Superseded to P021015241)

$34.99

$

In Stock, only 1 left!

0

21

Echo C300000351

GUARD, SPROCKET
(Superseded to P021015241)

$34.99

$

In Stock, only 1 left!

0

44

Echo C345000241

COVER, BRAKE

$3.99

$

Usually ships in 2-4 days

0

41

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

22

Echo A551000000

PLATE, CLUTCH

$7.99

$

In Stock, only 2 left!

0

23

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 8

0

24

Echo A556000021

DRUM, CLUTCH

$39.99

$

In Stock, only 2 left!

0

25

Echo V557000010

BEARING, NEEDLE
(Superseded to V557000020)

$19.99

$

In Stock, only 1 left!

0

26

Echo A551000060

PLATE, CLUTCH

$7.99

$

Usually ships in 2-4 days

0

27

Echo A056000111

CLUTCH ASSY
(Superseded to A056000112)

$85.99

$

Usually ships in 2-4 days

0

28

Echo V451000500

SPRING, CLUTCH

$3.49

$

In Stock, Qty 20+

0

29

Echo P021007050

CLUTCH SHOE SET
(Superseded to P021007051)

$34.99

$

Usually ships in 2-4 days

0

30

Echo A552000090

HUB, CLUTCH

$13.99

$

Usually ships in 2-4 days

0

31

Echo 43301335432

PLATE, GUIDE - INNER

$5.99

$

In Stock, Qty 10

0

32

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

33

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

34

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

35

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

36

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

37

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

38

Echo X502000340

LABEL - ECHO

$1.99

$

In Stock, Qty 12

0

39

Echo 43301912330

NUT - 8 -- FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

40

Echo C302000000

CUSHION

$5.49

$

Usually ships in 2-4 days

0
