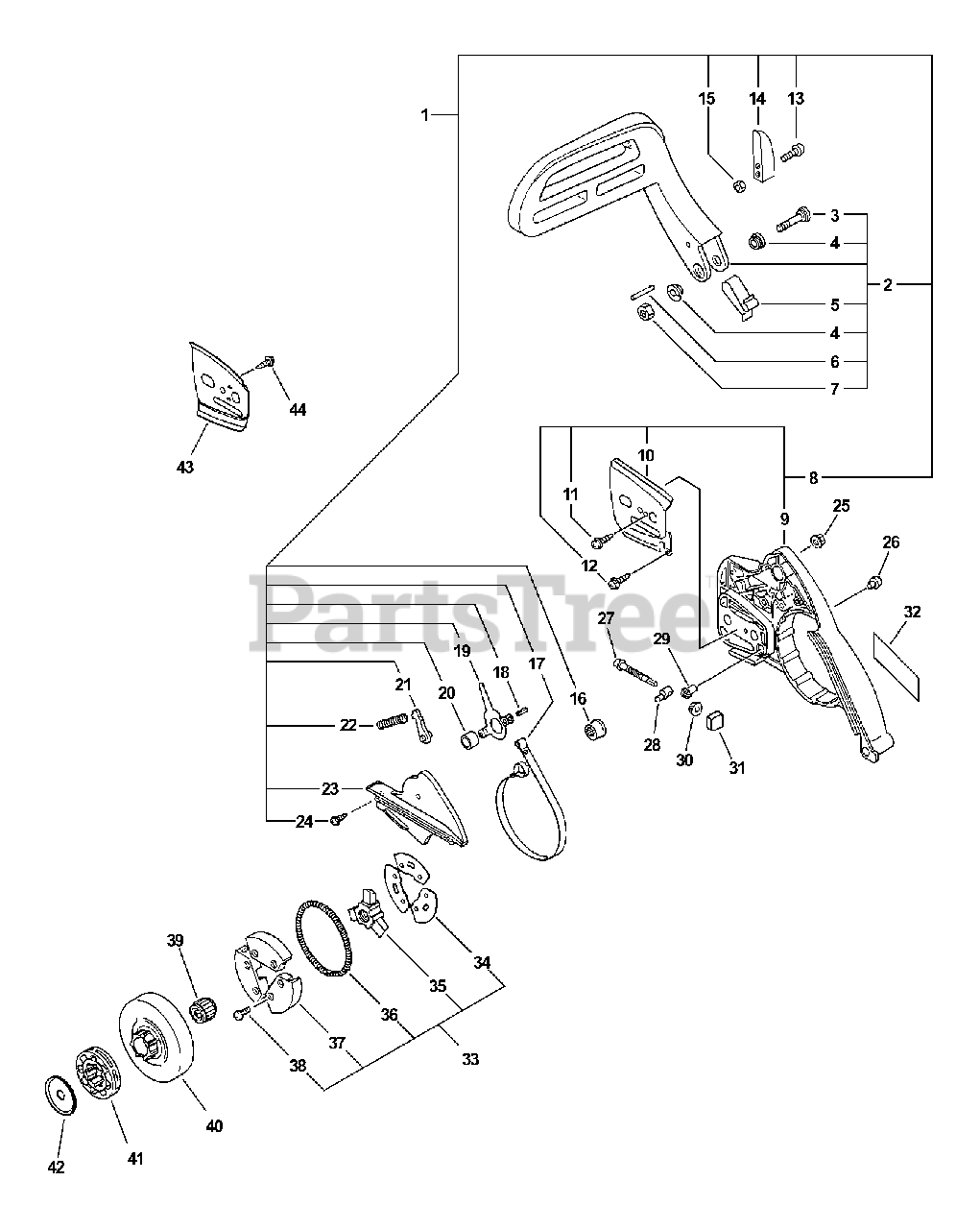

CS-510 - Echo Chainsaw (SN: 03001001 - 03999999) Clutch, Chain Brake Parts Diagram

Chainsaw

Clutch, Chain Brake Parts Diagram

  • Title

1

Echo 43310039033

CHAIN BRAKE ASSY
(Superseded to 43310039034)

Note: Includes ITEMS 2-24

$70.99

$

In Stock, only 2 left!

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: Includes ITEMS 3-7

$33.99

$

Usually ships in 2-4 days

0

3

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

4

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 10

0

5

Echo 43311438331

SPRING

$6.99

$

Usually ships in 2-4 days

0

6

Echo 90033030260

PIN - 3X26

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

8

Echo P021001280

SPROCKET GUARD ASSY
(Superseded to P021001281)

Note: Includes ITEMS 9-12

$24.99

$

In Stock, Qty 7

0

9

Echo 43300539333

GUARD, SPROCKET
(Superseded to 43300539334)

$24.99

$

In Stock, Qty 7

0

10

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 13

0

11

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

12

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

13

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

14

Echo 43317139330

WEIGHT, BRAKE

$8.49

$

Usually ships in 2-4 days

0

15

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 1 left!

0

17

Echo 43312335430

BAND, BRAKE
(Superseded to C328000060)

$7.49

$

In Stock, only 4 left!

0

18

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 2 left!

0

19

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

20

Echo 43311538330

WASHER - 5

$1.49

$

Usually ships in 2-4 days

0

21

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

22

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

23

Echo 43331039330

COVER, BRAKE

$5.99

$

In Stock, only 3 left!

0

24

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

25

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

26

Echo V162000020

PLUG

$2.99

$

Usually ships in 2-4 days

0

27

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 6

0

28

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

29

Echo V651000000

GEAR - PINION
(Superseded to V651000001)

$7.99

$

In Stock, Qty 20+

0

30

Echo V651000010

GEAR - BEVEL
(Superseded to V651000011)

$7.99

$

In Stock, Qty 20+

0

31

Echo V355000030

COLLAR - 8
(Superseded to V355000270)

$1.49

$

In Stock, Qty 20+

0

32

Echo X502000000

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

33

Echo 17500037531

CLUTCH ASSY
(Superseded to P021007070)

Note: Includes ITEMS 34-38

$65.99

$

In Stock, only 1 left!

0

34

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

35

Echo 17501619830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

36

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

37

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

38

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 6

0

39

Echo V557000010

BEARING, NEEDLE
(Superseded to V557000020)

$19.99

$

Usually ships in 2-4 days

0

40

Echo A556000020

DRUM, CLUTCH
(Superseded to A556000021)

$39.99

$

In Stock, only 2 left!

0

41

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 13

0

42

Echo A551000000

PLATE, CLUTCH

$7.99

$

In Stock, only 2 left!

0

43

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$5.99

$

In Stock, Qty 10

0

44

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0
