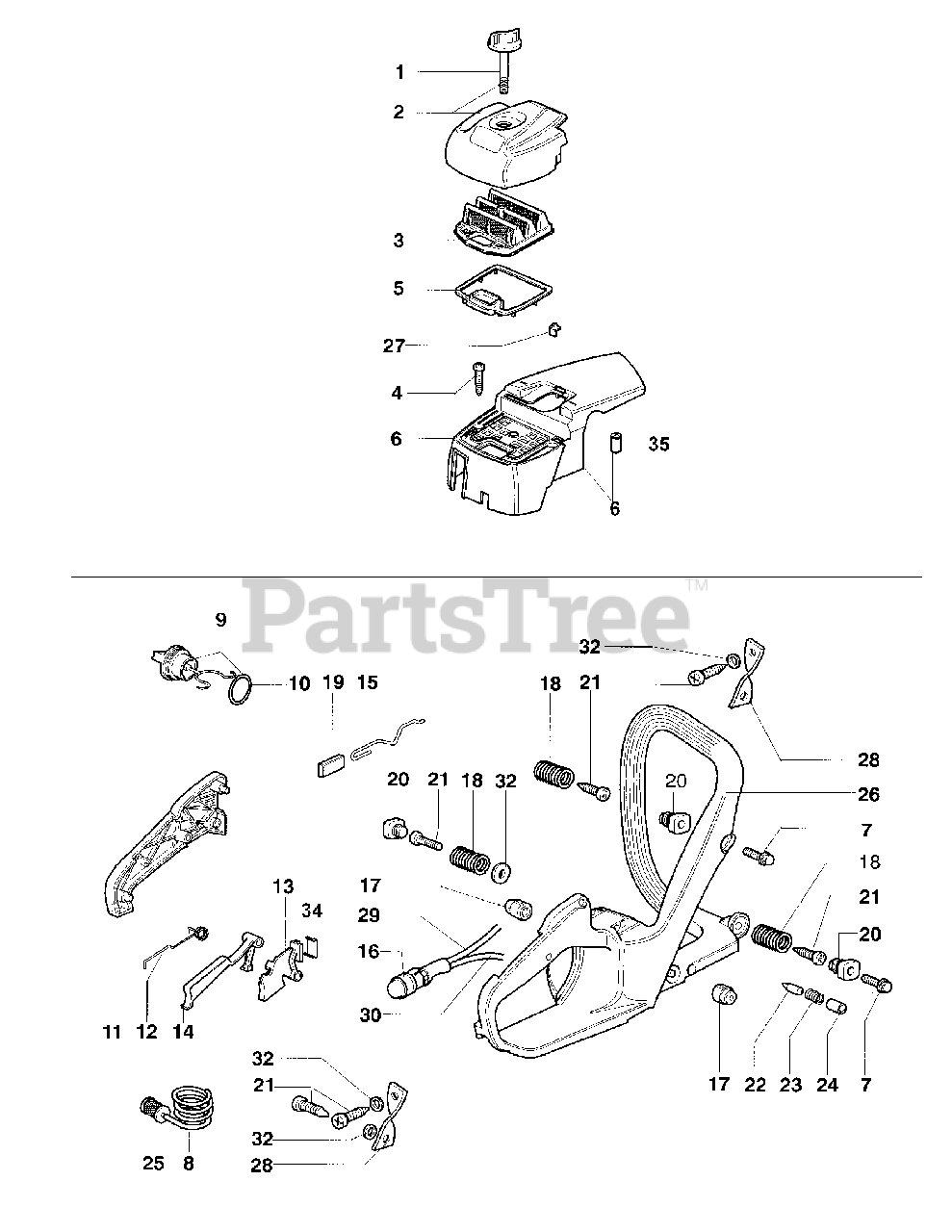

CS 5018 (59AM658-750) - Cub Cadet 18" Chainsaw Air Filter, Fuel Tank, Chain Parts Diagram

18" Chainsaw

Air Filter, Fuel Tank, Chain Parts Diagram

  • Title

1

Cub Cadet EM-52010041

SCREW

$

$

Not available

2

Cub Cadet EM-50072031

FILTER COVER
(Superseded to EM-50072030B)

$40.99

$

Usually ships in 3-6 days

0

3

Cub Cadet EM-50070036

AIR FILTER

$

$

Not available

4

Cub Cadet EM-3960092

SCREW

$

$

Not available

5

Cub Cadet EM-50070056

GASKET

$

$

Not available

6

Cub Cadet EM-50082022

COVER

$

$

Not available

7

Cub Cadet EM-094600041

SCREW

$

$

Not available

8

Cub Cadet EM-50070064

FUEL LINE

$

$

Not available

9

Cub Cadet EM-50072020

CAP ASSY

$

$

Not available

10

Cub Cadet EM-099900090

O-RING

$

$

Not available

11

Cub Cadet EM-50050215

COVER

$

$

Not available

12

Cub Cadet EM-097000028

SPRING
(Superseded to EM-097000028R)

$

$

Not available

13

Cub Cadet EM-50052044

THROTTLE LEVER

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet EM-50050246

THROT. INTERLOCK
(Superseded to EM-50050046AR)

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet EM-50070044

THROTTLE ROD

$

$

Not available

16

Cub Cadet EM-50060012

FUEL PUMP

$

$

Not available

17

Cub Cadet EM-50010061

SHOCK ABSORBER
(Superseded to EM-50010061R)

$

$

Not available

18

Cub Cadet EM-50070024

SPRING

$

$

Not available

19

Cub Cadet EM-50070197

ROD CAP
(Superseded to EM-50070197A)

$

$

Not available

20

Cub Cadet EM-50070106

ATTACHMENT

$

$

Not available

21

Cub Cadet EM-3960073

SCREW

$

$

Not available

22

Cub Cadet EM-094500577A

TANK BREATHER
(Superseded to EM-094500577AR)

$

$

Not available

23

Cub Cadet EM-094500575

SPRING

$

$

Not available

24

Cub Cadet EM-50050071

TANK BREATHER

$

$

Not available

25

Cub Cadet EM-50010218

fuel filter

$29.99

$

Usually ships in 3-6 days

0

26

Cub Cadet EM-50070107A

COMPL. FUEL TANK

$

$

Not available

27

Cub Cadet EM-50070066

DEFLECTOR

$

$

Not available

28

Cub Cadet EM-50070181

BAND

$

$

Not available

29

Cub Cadet EM-50060039

FUEL LINE

$

$

Not available

30

Cub Cadet EM-61110034

FUEL LINE

$

$

Not available

31

Cub Cadet EM-50070182

BAND

$

$

Not available

32

Cub Cadet EM-3057005

WASHER

$

$

Not available

33

Cub Cadet EM-3916005

WASHER

$

$

Not available

34

Cub Cadet EM-50050119

PLATE

$9.99

$

Usually ships in 3-6 days

0

35

Cub Cadet EM-50070126

SPACER

$

$

Not available

Cub Cadet 737-0320

CCC 2-CYCLE OIL 2.6 OZ BLT 50:1 NOT SHOWN

$

$

Not available

Cub Cadet 796-00007

BAR 18'' NOT SHOWN

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 490-700-0008

CHAIN 18'' NOT SHOWN

Note: NLA

$

$

Not available

Cub Cadet 731-04543

SHEATH-CHAIN & BAR 18'' NOT SHOWN

$

$

Not available

Cub Cadet EM-50082027

LABEL KIT

$

$

Not available
