CS-501 P - Echo Chainsaw (SN: C68515001001 - C68515999999) Fuel System Parts Diagram

Chainsaw

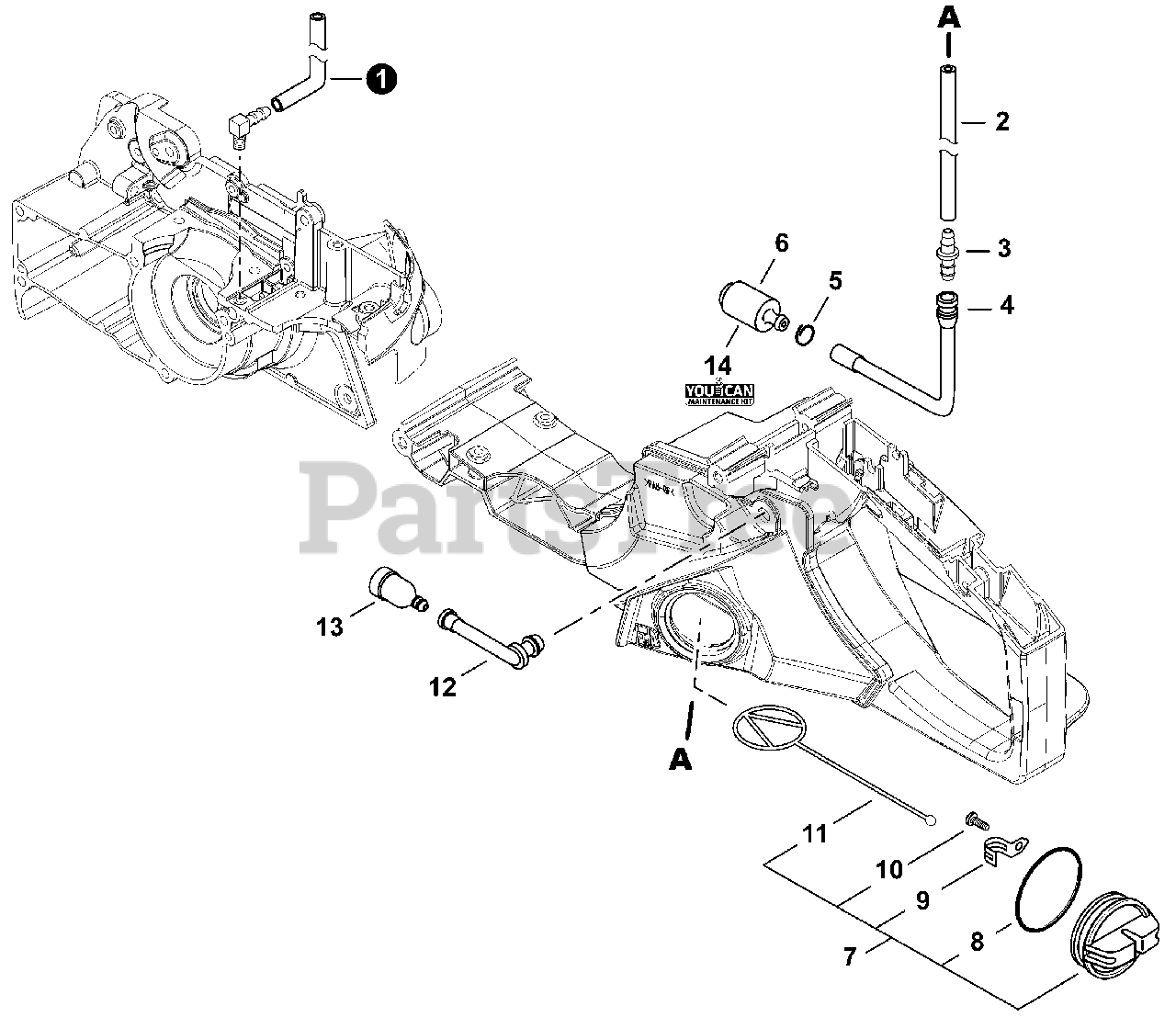

Fuel System Parts Diagram

  • Title
1

Echo V471002800

PIPE, PULSE

$8.99

$

Usually ships in 2-4 days

0

2

Echo V471003970

PIPE, FUEL 3×6×75

$4.49

$

In Stock, only 1 left!

0

3

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 5

0

4

Echo V470001990

PIPE, FUEL
(Superseded to V470001991)

$6.99

$

In Stock, only 1 left!

0

5

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

6

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

7

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 8-9

$3.49

$

In Stock, Qty 17

0

8

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

9

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

10

Echo V470001530

PIPE, FUEL VENT
(Superseded to V470001531)

$2.49

$

In Stock, only 1 left!

0

11

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 16

0

12

Echo 90174Y

TUNE-UP KIT - YOUCAN™

$41.99

$

In Stock, only 1 left!

0
