CS-501 P - Echo Chainsaw (SN: C36712001001 - C36712999999) Engine Parts Diagram

Chainsaw

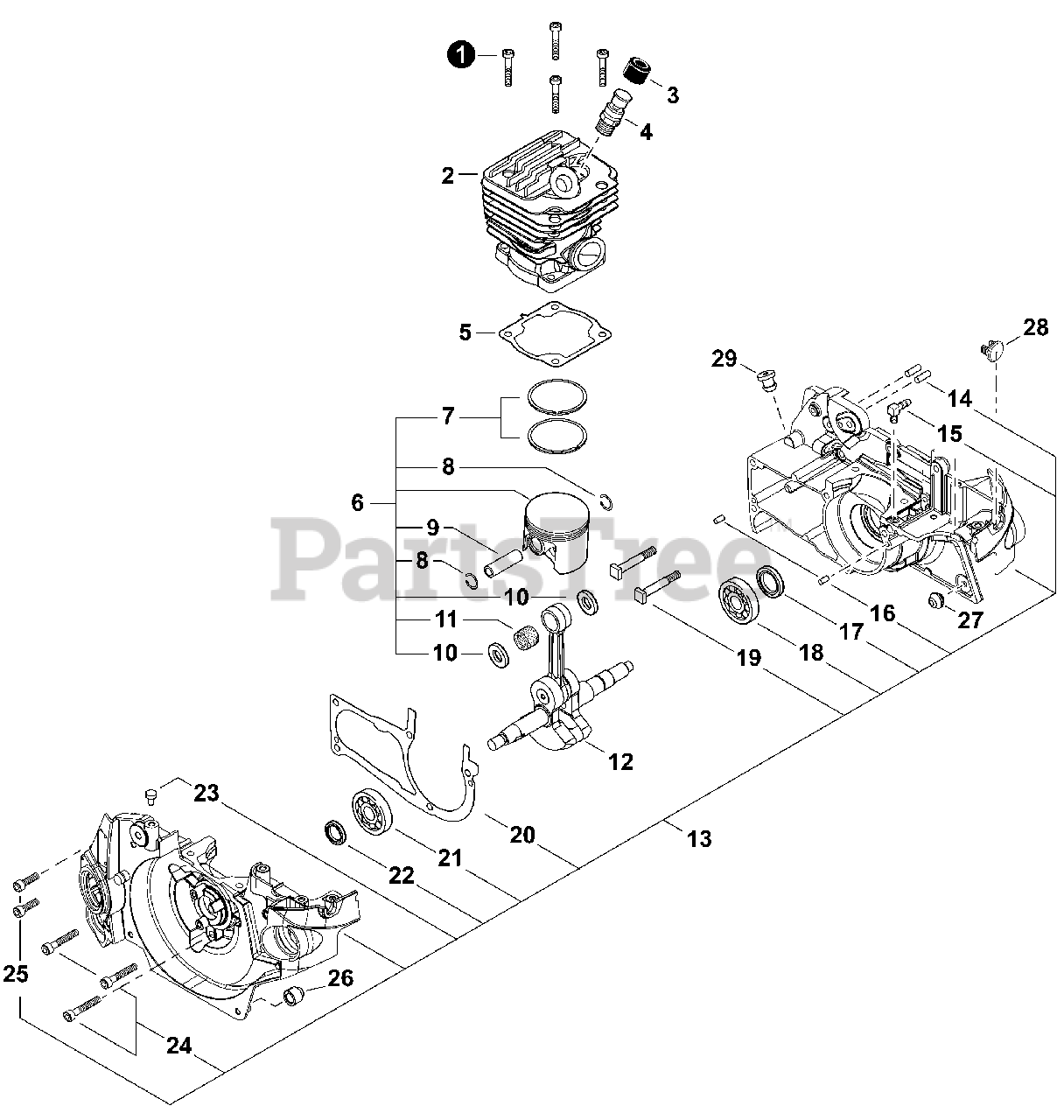

Engine Parts Diagram

  • Title
1

Echo V203001320

BOLT, ADHESIVE M5×20

$0.99

$

Usually ships in 2-4 days

0

2

Echo A130002280

CYLINDER

$140.99

$

In Stock, only 1 left!

0

3

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

4

Echo A014000110

VALVE ASSY, DECOMPRESSION

$46.99

$

In Stock, only 1 left!

0

5

Echo V100000620

GASKET, CYLINDER

$0.99

$

Usually ships in 2-4 days

0

6

Echo P021048650

PISTON KIT

Note: Includes ITEMS 7-11

$66.99

$

Usually ships in 2-4 days

0

7

Echo A101000690

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

8

Echo V580000030

RING, SNAP Ø11

$0.99

$

Usually ships in 2-4 days

0

9

Echo V609000070

PIN, PISTON 11

$5.99

$

Usually ships in 2-4 days

0

10

Echo V308000040

WASHER, THRUST 11.2×19.5×0.5

$3.49

$

In Stock, only 1 left!

0

11

Echo V556000040

BEARING, NEEDLE 11

$13.99

$

Usually ships in 2-4 days

0

12

Echo A011001420

CRANKSHAFT ASSY

$97.99

$

Usually ships in 2-4 days

0

13

Echo P021038801

CRANKCASE ASSY
(Superseded to P100005020)

Note: Includes ITEMS 14-25

$163.99

$

Usually ships in 2-4 days

0

14

Echo V629000000

PIN, LOCATING Ø4×11

$0.99

$

Usually ships in 2-4 days

0

15

Echo 43723914730

CONNECTOR, PIPE

$7.99

$

Usually ships in 2-4 days

0

16

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

17

Echo V508000070

SEAL, OIL 15

$7.49

$

Usually ships in 2-4 days

0

18

Echo V592000290

BEARING, BALL 6202 C3

$7.49

$

Usually ships in 2-4 days

0

19

Echo V225000150

BOLT, STUD 8

$2.99

$

In Stock, only 2 left!

0

20

Echo V102000220

GASKET, CRANKCASE
(Superseded to V102000221)

$

$

Not available

21

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 11

0

22

Echo V505000070

SEAL, OIL 12

$5.99

$

In Stock, only 1 left!

0

23

Echo A356000130

VENT ASSY

$4.49

$

Usually ships in 2-4 days

0

24

Echo V203001450

BOLT M5×35

$1.99

$

Usually ships in 2-4 days

0

25

Echo V203001540

BOLT M5×18

$1.49

$

In Stock, only 1 left!

0

26

Echo V420002780

CUSHION M

$0.99

$

In Stock, Qty 10

0

27

Echo V420004980

CUSHION

$5.99

$

Usually ships in 2-4 days

0

28

$2.49

$

Usually ships in 2-4 days

0

29

Echo V133000040

GROMMET

$8.49

$

In Stock, only 1 left!

0
