CS-501 P - Echo Chainsaw (SN: C36712001001 - C36712999999) Clutch Cover Parts Diagram

Chainsaw

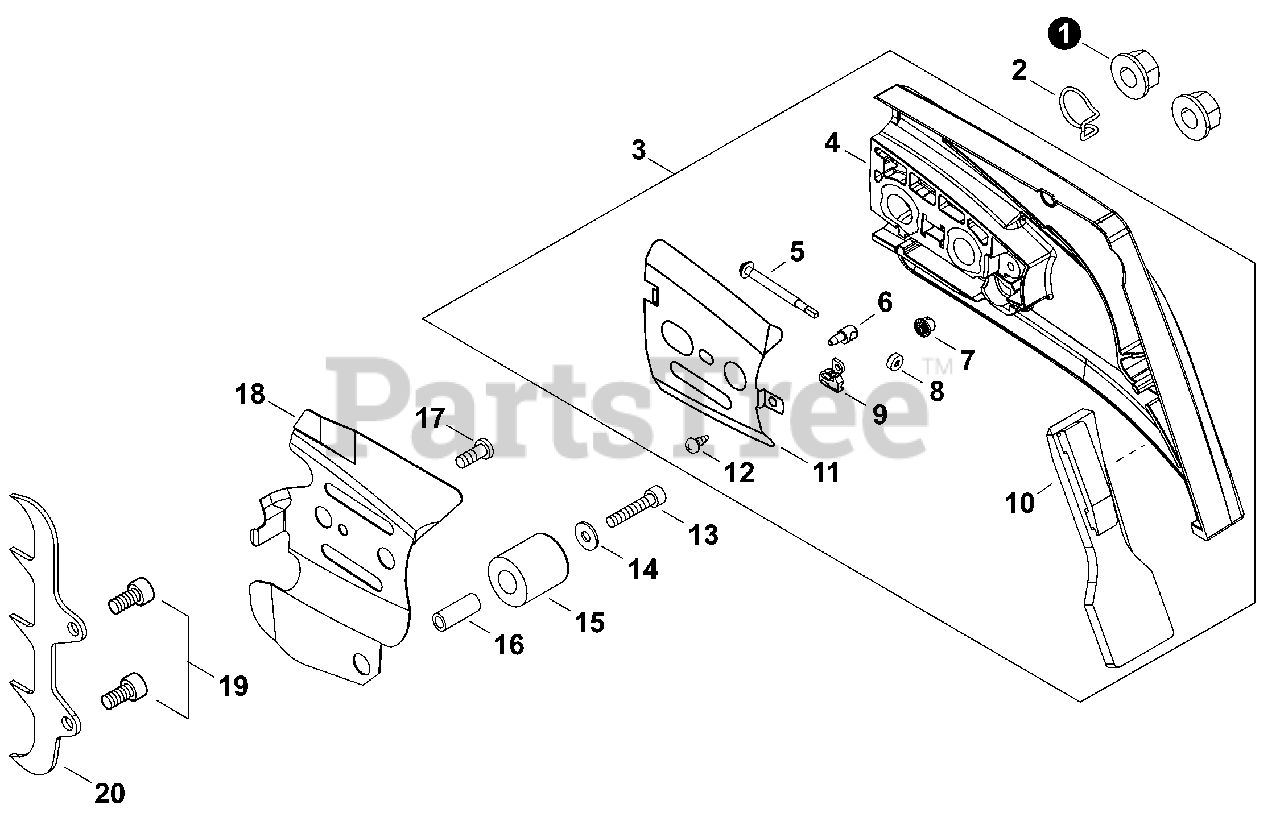

Clutch Cover Parts Diagram

  • Title

1

Echo V265000550

NUT 8

$2.99

$

In Stock, Qty 20+

0

2

Echo C649000420

HOOK

$3.49

$

Usually ships in 2-4 days

0

3

Echo P021049100

COVER ASSY, CLUTCH

Note: Includes ITEMS 4-12

$50.99

$

In Stock, Qty 7

0

4

Echo C300001040

GUARD, SPROCKET

$48.99

$

Usually ships in 2-4 days

0

5

Echo V203000021

SCREW, CHAIN TENSION

$5.99

$

In Stock, only 1 left!

0

6

Echo C309000190

TENSIONER, CHAIN

$2.99

$

In Stock, only 2 left!

0

7

Echo V651001060

GEAR, BEVEL

$2.99

$

In Stock, Qty 6

0

8

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

9

Echo V355000840

COLLAR

$2.99

$

In Stock, only 1 left!

0

10

Echo C302000030

PROTECTOR

$2.49

$

In Stock, only 1 left!

0

11

Echo C305000470

PLATE, GUIDE - OUTER

$8.99

$

In Stock, only 1 left!

0

12

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

13

Echo 90010505030

BOLT 5×30

$1.49

$

In Stock, only 3 left!

0

14

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo C310000110

CHAIN CATCHER

$3.49

$

In Stock, only 2 left!

0

16

Echo V353000460

COLLAR 5

$0.99

$

In Stock, Qty 12

0

17

Echo V252000470

SCREW M4×7

$0.99

$

In Stock, Qty 8

0

18

Echo C305000411

PLATE, GUIDE - INNER

$8.99

$

Usually ships in 2-4 days

0

19

Echo V203002010

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

20

Echo C304000310

SPIKE, BUMPER

$19.99

$

Usually ships in 2-4 days

0
