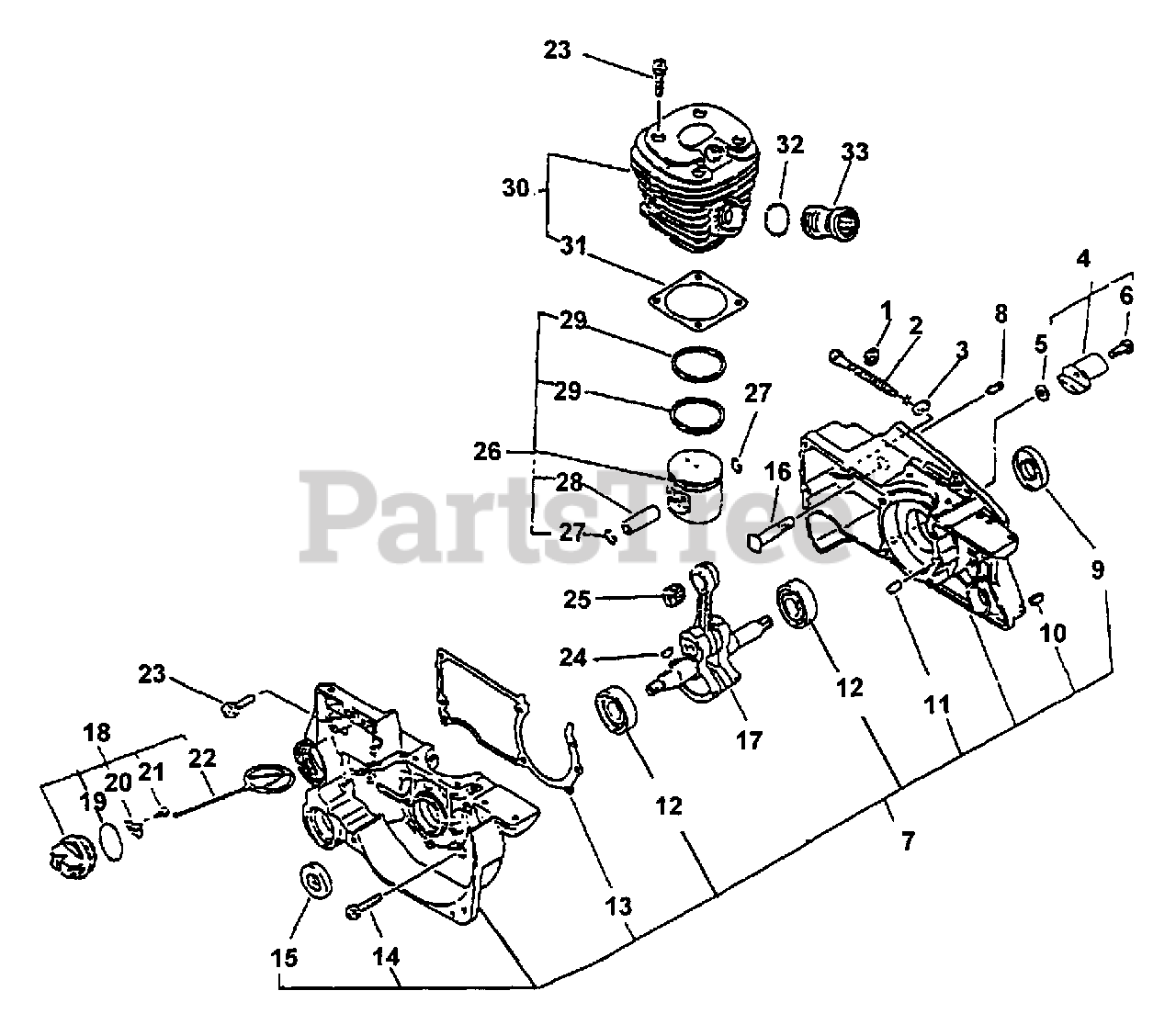

CS-5000 - Echo Chainsaw (Type 1E) Engine, Crankcase Parts Diagram

Chainsaw (Type 1E)

Engine, Crankcase Parts Diagram

  • Title

$0.99

$

In Stock, Qty 15

0

2

Echo 43301619830

SCREW, TENSIONER

$5.49

$

In Stock, Qty 5

0

3

Echo 43301419830

TENSIONER, CHAIN

$4.99

$

In Stock, only 3 left!

0

4

Echo 43300033330

CHAIN CATCHER KIT

Note: INCLUDES 5 & 6

$1.49

$

In Stock, only 4 left!

0

5

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

7

Echo 10020439831

CRANKCASE KIT

Note: INCLUDES ITEMS 8 - 16

$292.99

$

Usually ships in 2-4 days

0

8

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

9

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

10

Echo 90034550010

PIN - SPRING -- 5X10

$1.49

$

Usually ships in 2-4 days

0

11

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

13

Echo 10024239730

GASKET, CRANKCASE

$7.49

$

In Stock, only 1 left!

0

14

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

15

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

16

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

17

Echo 10010033330

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 43600137933

CAP ASSY

Note: INCLUDES ITEMS 19 - 22

$14.99

$

In Stock, only 1 left!

0

19

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0

20

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90024603008

SCREW - 3X8

$

$

Not available

22

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

23

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

$1.49

$

In Stock, Qty 11

0

25

Echo 10001219830

BEARING, NEEDLE

$11.99

$

In Stock, only 1 left!

0

26

Echo 10000039730

PISTON KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 27 - 29

$

$

Not available

27

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

28

Echo 10001339730

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

29

Echo 10001139730

RING, PISTON
(Superseded to 10001139731)

$9.99

$

In Stock, Qty 12

0

30

Echo 10100139730

CYLINDER KIT
(Superseded to Discontinued)

Note: INCLUDES ITEM 31

$

$

Not available

31

Echo 10101039730

GASKET, CYLINDER

$

$

Not available

32

Echo 13051619830

BAND
(Superseded to Discontinued)

$

$

Not available

33

Echo 13051033330

ADAPTOR, INTAKE

$10.99

$

Usually ships in 2-4 days

0
